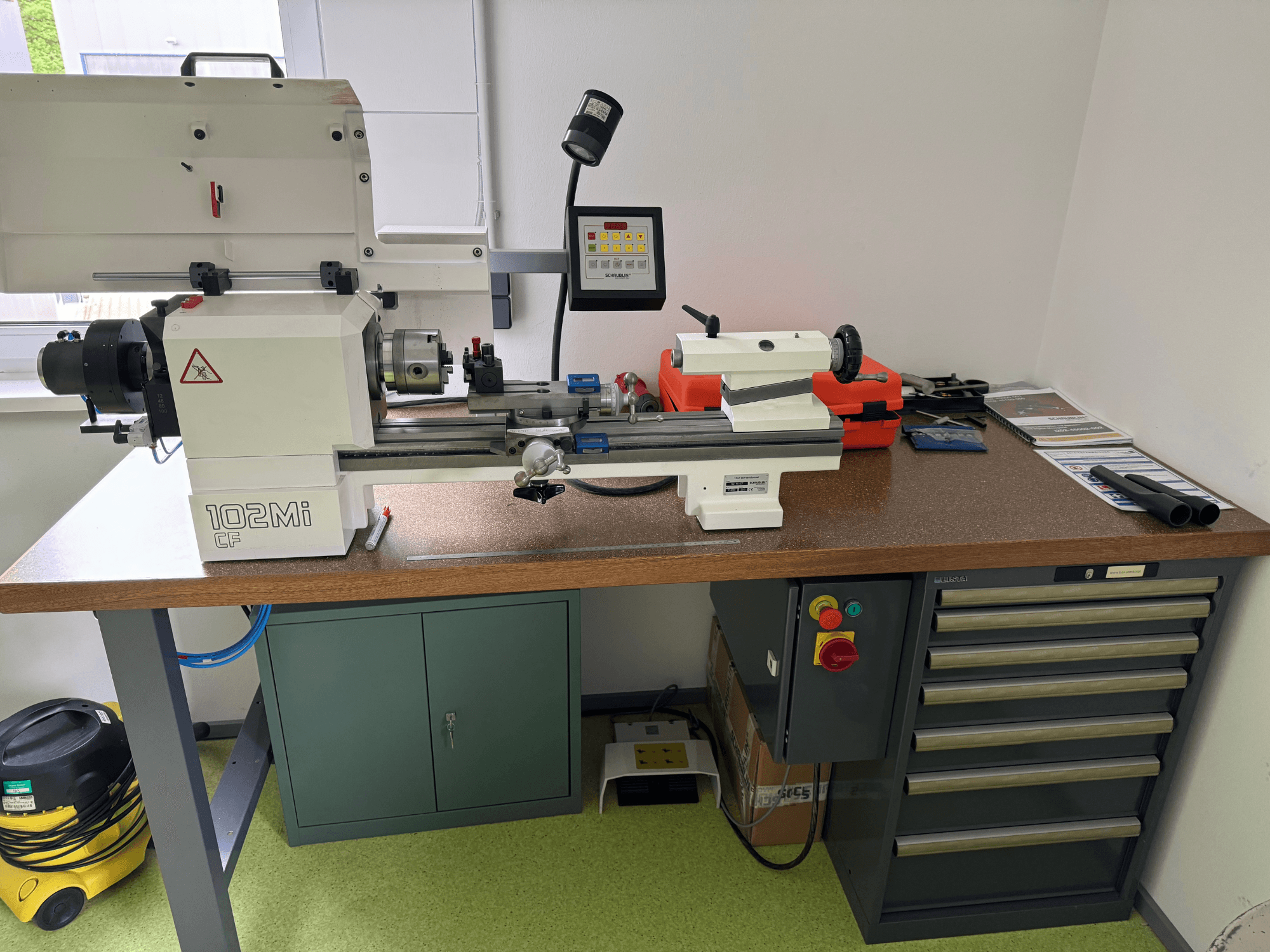

SCHAUBLIN - 102Mi W25DE-TUR-SCH-2019-00001

• Headstock: Integrated motor

• Mounting: Mounted on workbench (Version CE)

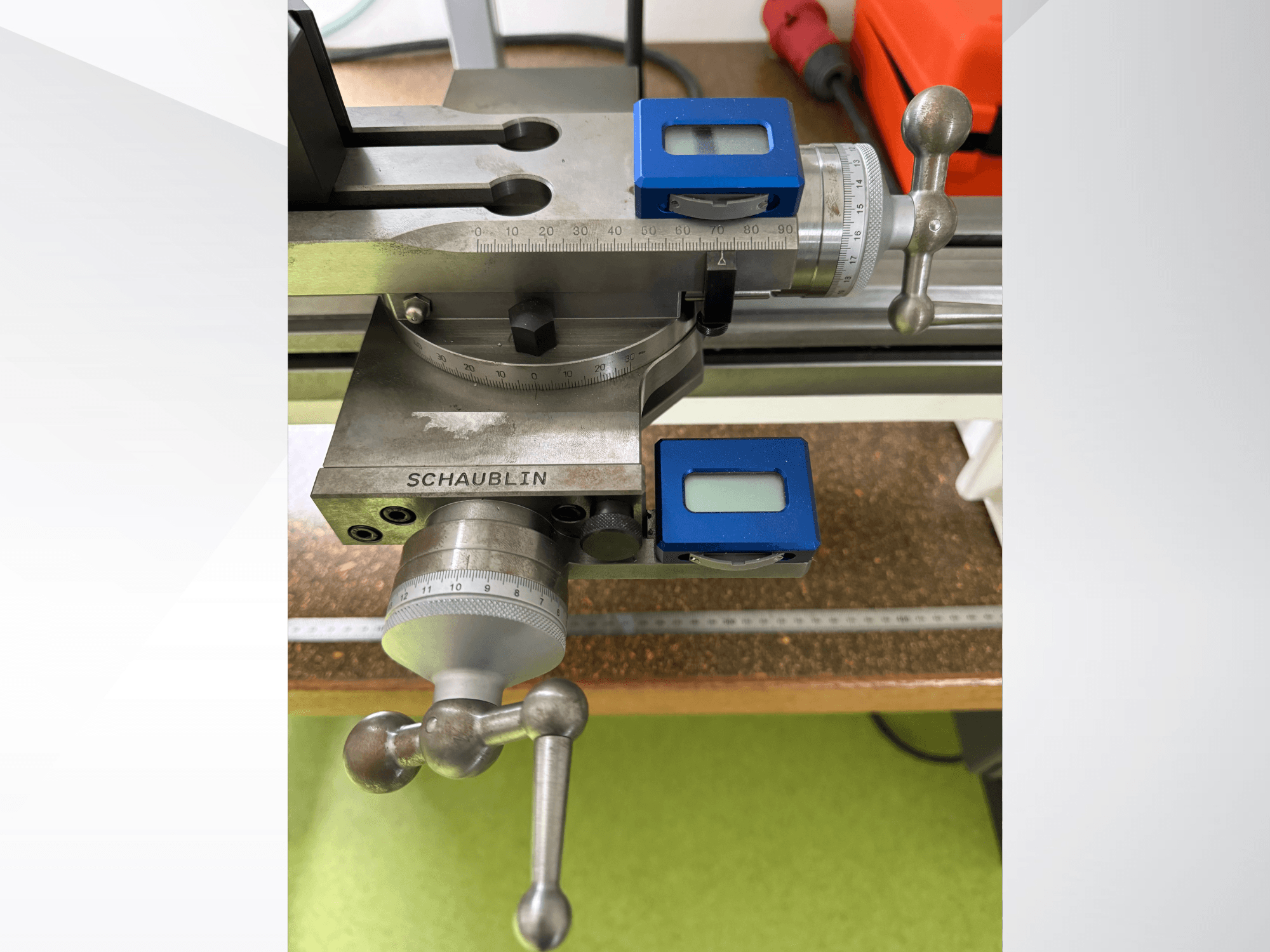

• Cross-slide: Crank cross-slide with digital measurement device

• Tailstock: Morse Taper 2

Additional equipment

• Workbench: 2000 x 800 x 900 mm

• Lista drawer cabinet: 564 x 725 x 850 mm

• Pneumatic clamping device W25 with graphite distributor

• Tripan-111S quick-change tool holder system

• Boring bar holder, 30° angled, max Ø12 mm

• 3-jaw chuck W25/Ø100 (cast iron, manual)

• Tailstock accessory: Rotating center 60°, Ø18 mm (Gepy)

• Collet set W25 (0.5–25 mm, 50 pieces)

• Mebiflex 70 lamp

• Max. Permissible Diameter Over Bed: 200 mm

• Max. Permissible Diameter Over Carriage (Cross Slide): 120 mm (60 mm with rear support)

• Center Height Over Bed: 102 mm

• Center Height Over Carriage: 20 mm

• Max. Center Distance: 470 mm

• Bed Length: 1,000 mm

• Bed Height: 168 mm

• Main Spindle Drive: AC Motor, 1.5 kW (Continuous operation)

• Spindle Type Options: W20 / W25

• Spindle Speed (Infinitely Variable): 100 - 6,000 rpm (min⁻¹)

• Spindle Internal Diameter: 20 mm (W20) / 25 mm (W25)

• Max. Bar Capacity: 14.5 mm (W20) / 19 mm (W25)

• Carriage Travel (Manual) on Bed: 442 mm

• Cross Travel (X-axis): 100 mm

• X-axis Resolution (Radius): 0.001 mm (digital)

• Longitudinal Travel (Z-axis): 90 mm (Optional: 150 mm for orientable upper slide)

• Z-axis Resolution: 0.001 mm (digital)

• Trapezoidal Screw Spindle: Ø 9 x 2 mm pitch

• Max. Tool Shank Cross-Section: 16 x 16 mm (Multifix-System) / 12 x 12 mm (Tripan-System)

• Tool Holder Diameter: 20 mm (Multifix-System) / 12 mm (Tripan-System)

• Standard Tailstock: Morse 2 internal taper, 30 mm spindle outer diameter, 80 mm stroke

• Lever-operated Tailstock (Optional): W20/W25 internal taper, 40 mm spindle outer diameter, 100 mm stroke

• Starwheel-operated Tailstock (Optional): W20/W25 internal taper, 40 mm spindle outer diameter, 150 mm stroke

• Quick-clamping Lever System (Optional): Max spindle speed 3,000 rpm

• Pneumatic Clamping System (Optional): Adjustable axial clamping force, 500 daN at 5 bar, Max spindle speed 6,000 rpm

• Spindle Lock: Pneumatically operated spindle lock, locking torque 48 Nm at 5 bar (Max speed 3,000 rpm)

• Steady Rests (Optional): Clearance, stationary steady rest, Ø 0.01 to 40 mm

• Electrical Connection: 400V, 50/60 Hz, Nominal Current 12A (Max 20A input fuse), +/- 5% allowable voltage fluctuations

• Power Consumption: 1.8 kVA

• Noise Level under Load at Operator Station: < 60 dBA

• Operating Temperature: +15°C to +30°C (+5°C to +40°C for digital measuring devices)

• Relative Humidity: 5% to 80%

• Digital Measuring Unit Battery: 1x Lithium 3V, Type CR 2032 (Current consumption: 45 µA, Lifespan: 5,000 hours continuous operation)

• Floor Loading: 263 kg/m²

• Floor Payload Capacity: 113 kg/m²
