➤ Used SCHAUBLIN 140R CNC For Sale | gindumac.com

Show in original language

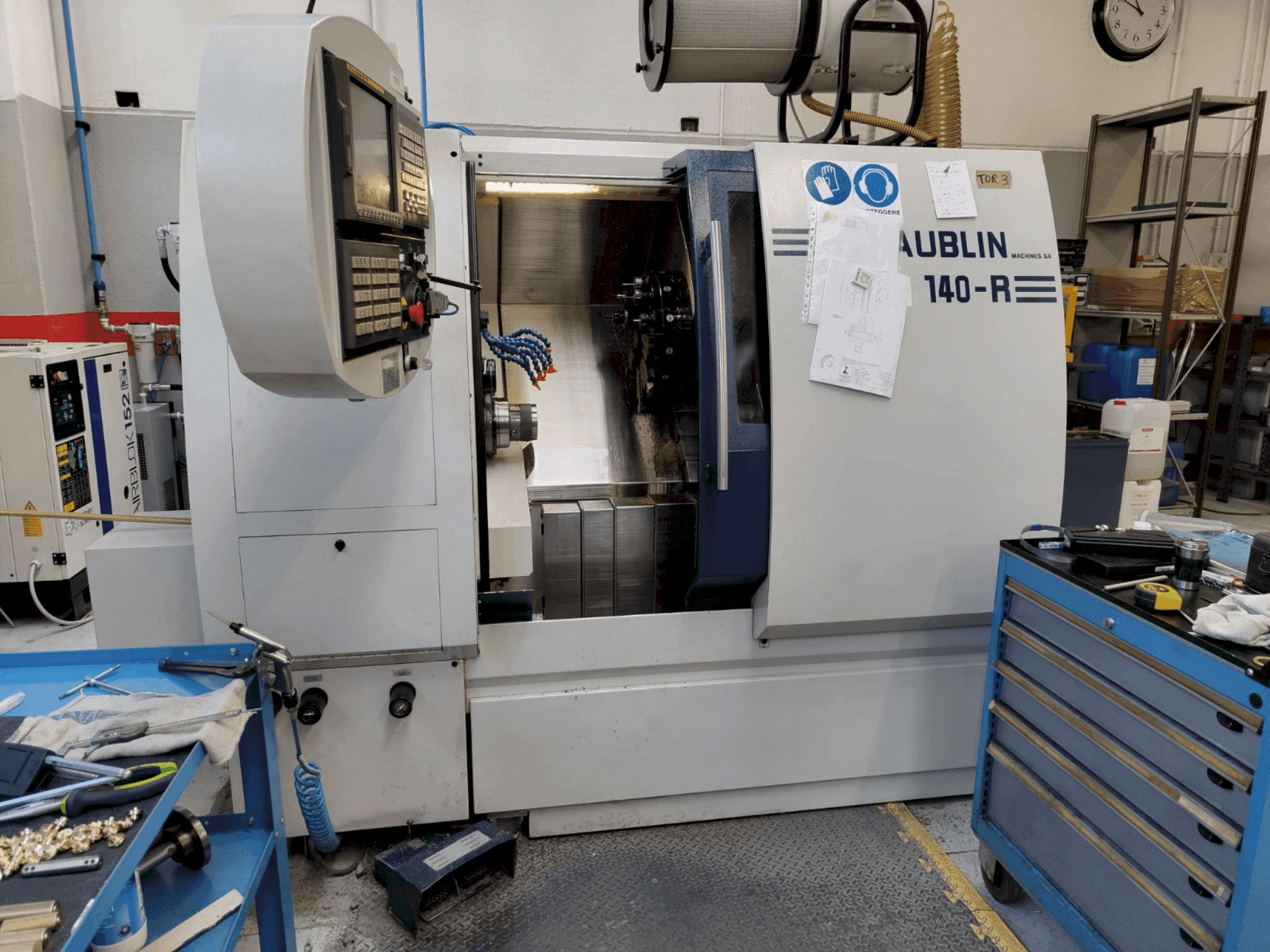

This 4-axis Schaublin 140R CNC horizontal turning machine was manufactured in 2008. It features a CNC Fanuc 18i-TB control, a maximum turning diameter of 300 mm, and a spindle speed range of 50 – 5,000 rpm. Equipped with a Y-axis and sub-spindle, it offers a turret with 12 driven tool stations. If you are looking to get high-quality turning capabilities, consider the Schaublin 140R CNC machine we have for sale. Contact us for more information.

Overview

brand: SCHAUBLIN
year: 2008
MODEL: 140R CNC
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - SCHAUBLIN 140R CNC

General Data

Measurements width: 1400 mm
Measurements depth: 2650 mm
Measurements height: 1840 mm
Machine weight: 3040 kg

Control Unit

Brand: FANUC
Model: 18i-TB

Main drive

Spindle speed range: 50 – 5000 1/MIN
Number of axis: 4

Turret

Rotating tools: Yes
Tool taper: VDI 30

Tools

Number of stations: 12

Additional Equipment

- Machine supplied with manuals and CE conformity declaration

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Driven tool stations: 12
- - Max tool size: 20 x 20 mm
- - Driven tool speed: 30 – 6000 rpm
- - Tailstock a2-3
- - Possibility to mount 3-jaw chuck: yes
- - Recommended max turning diameter: 200 mm
- - Coolant system: tank capacity 180 l, pump capacity 20 l/min, pump pressure 6 bar
- - Max turning diameter: 300 mm
- - Recommended max turning diameter: 250 mm
- - Equipped with y-axis and sub-spindle

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
