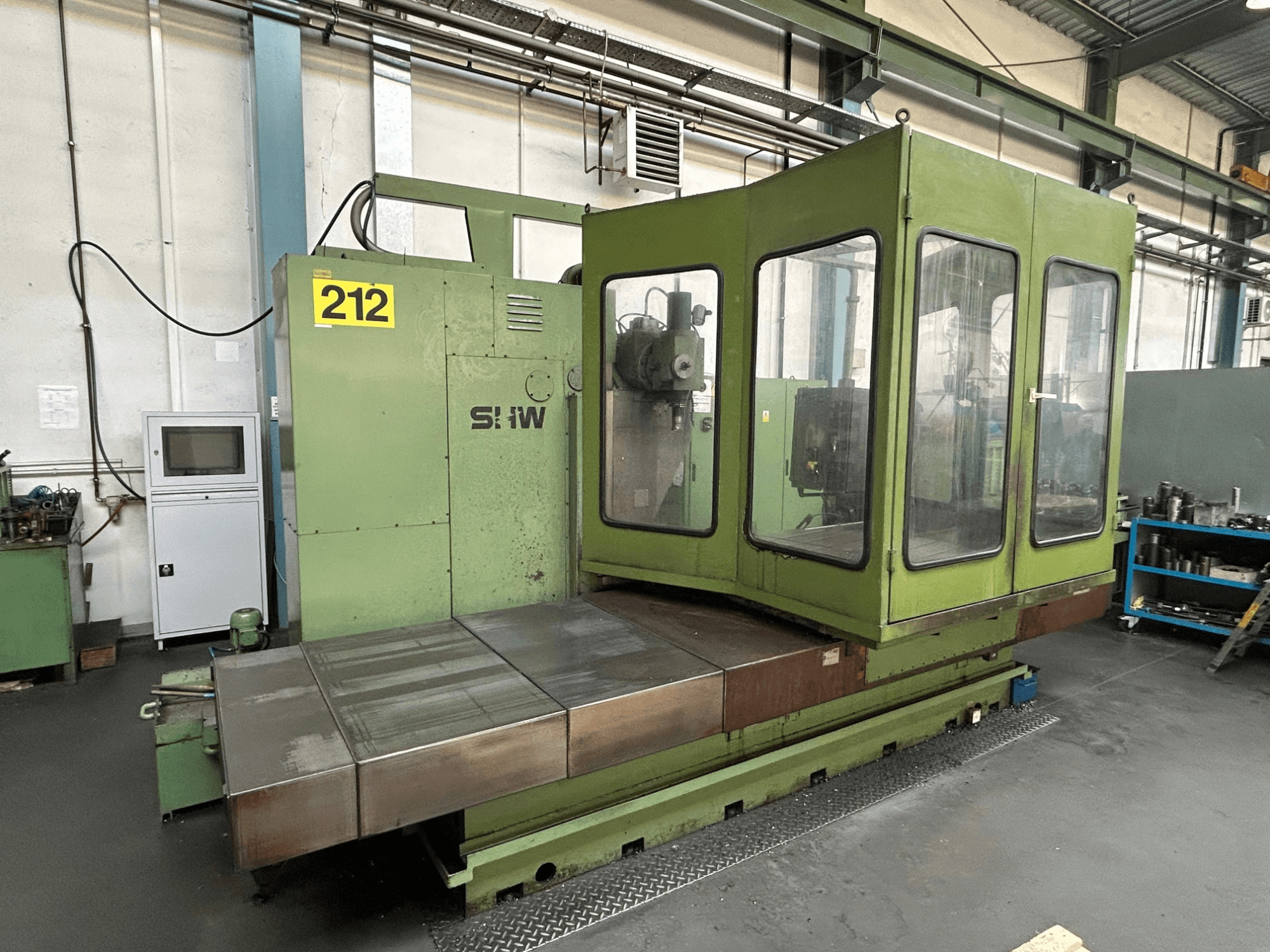

This 5-axis SHW UF-5 vertical machining centre was manufactured in 1993. It features a table longitudinal travel of 1500 mm, spindle head vertical travel of 1000 mm, and a spindle head longitudinal travel of 750 mm. The machine includes a rotary table with a diameter of 1400 mm and a maximum table load of approximately 4000 kp. If you are looking to get high-quality machining capabilities, consider the SHW UF-5 machine we have for sale. Contact us for further details.
Overview
- brand: SHW
- year: 1993
- MODEL: UF-5
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - SHW UF-5
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 355
Movement
- Number of Axes: 5
- X-axis Travel: 1500 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 750 mm
Technical Specification
- Spindle Power: 20 kW
- Spindle Speed: 1800 RPM
- Taper Size: ISO 50
Additional Information
Quill in milling head: 115 mm
Feed drives and feeds:
Individual drives (X, Y, Z)
Infinitely variable feeds (X, Y, Z): 2–8000 mm/min
Rapid traverse (X, Y, Z): 8000 mm/min
Milling spindle drive:
DC motor drive power: 20 kW
Speed range (infinitely variable): 36–1800 rpm
Horizontal and vertical spindle
Spindle taper: ISO 50
Horizontal spindle diameter (front bearing): 95 mm
Tool clamping force:
Horizontal spindle: 16,000 N
Vertical spindle: 10,000 N
Additional equipment
Rotary table RT 5D:
Table plate with 7 T-slots, 1 central slot
Table diameter: Ø 1400 mm
T-slot size: 22 H7 (DIN 650)
Center bore: 160 mm
Max. rotational speed: 2.5 min⁻¹
Max. table load: approx. 4000 kp
Table weight: approx. 2800 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
