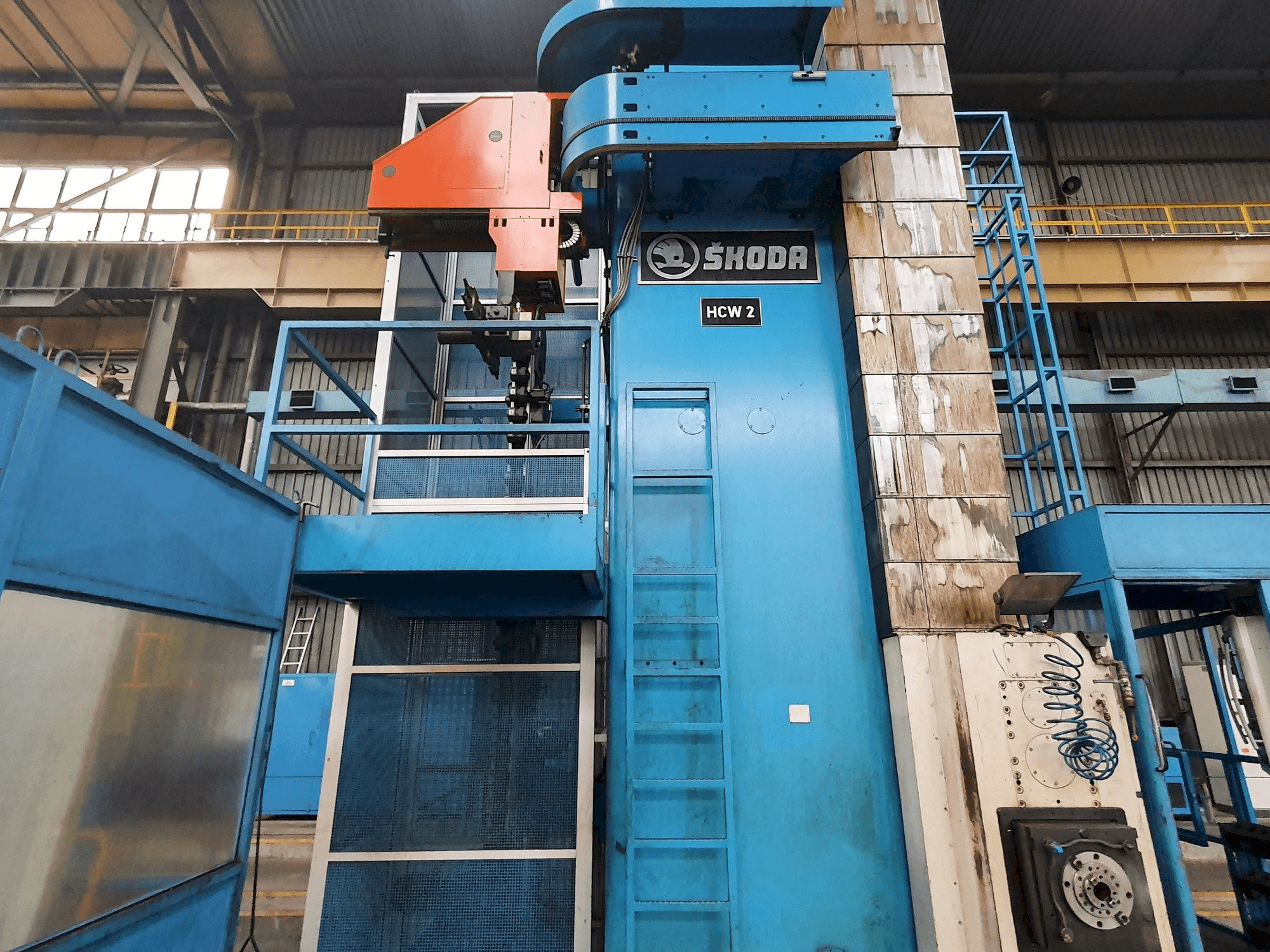

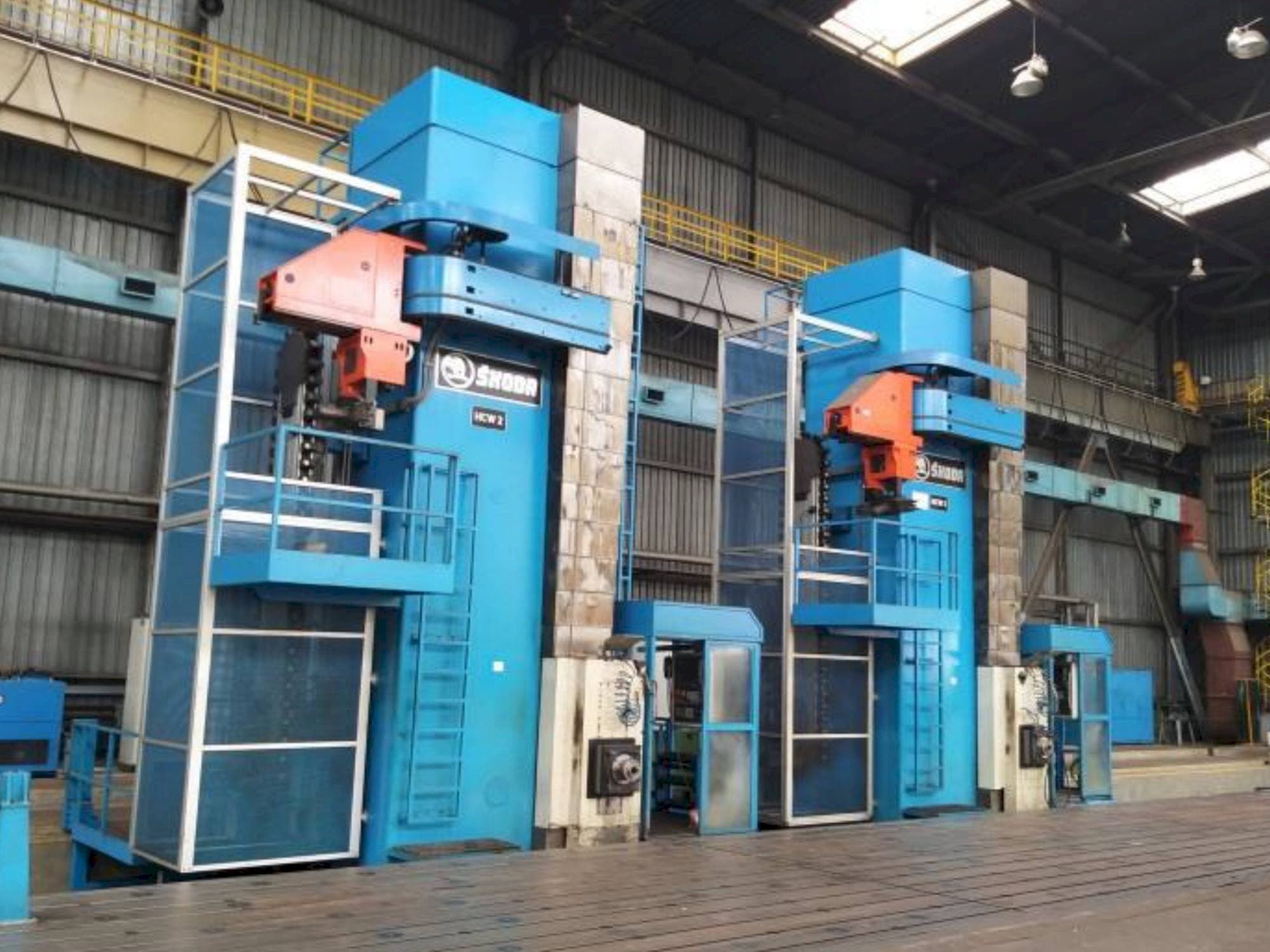

This SKODA HCW 2-200 DUO Boring Machine was made in the year 2009. It is operated through a SINUMERYC 840 D control unit. This 5 axis drilling machine operates with a spindle speed up to 2500 rpm. This machine has five interchangeable heads.
Overview
- brand: SKODA
- year: 2009
- MODEL: HCW 2-200 DUO
- application type: Other Machine Tools
- Location: Poland
- machine type: Boring Machine (Metal)
- control unit brand: SIEMENS
Technical Information - SKODA HCW 2-200 DUO
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840 D
Dimensions
- Machine Depth: 8000 mm
- Machine Height: 50000 mm
- Table Load: 40000 kg
Movement
- Z-axis Travel: 1300 mm
Technical Specification
- Spindle Speed: 2500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Five interchangeable heads: one five-plane, a table, two motors for torsion axles and two boring discs.
- Max. Convergence of columns - 7. 000 mm
- Max. Column travel – 32. 000 mm
- The total length of the bed – 35. 000 mm
- Each of the two columns has its own tool magazine for 60 tools.
Technical Machine Benefits
- Spindle taper - iso 50
- Accuracy of manufactured elements - it6
- Range of working feeds - 1 ÷ 10. 000 mm / min
- Spindle stroke in the w axis: 1. 200 mm
- Vertical stroke in the y axis: 4. 500 mm
- Cross travel in the x axis: - 25. 000 mm
- Max. Table no. 2 load: 70. 000 kg
- Max workpiece dimensions: (l x d x h) 30. 000 x 5. 200 x 4. 200 mm
- No. 1 table dimension: 2. 500 x 3. 000 mm
- No. 2 table dimension - 3. 000 x 3. 500 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
