Sodick - AD 55 LDE-EDM-SOD-2016-00001

Name: Sodick AD 55 L
Brand: Sodick
SKU: DE-EDM-SOD-2016-00001
Price: 84000 EUR
Availability: InStock

84,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Sodick AD 55 L For Sale | gindumac.com

Show in original language

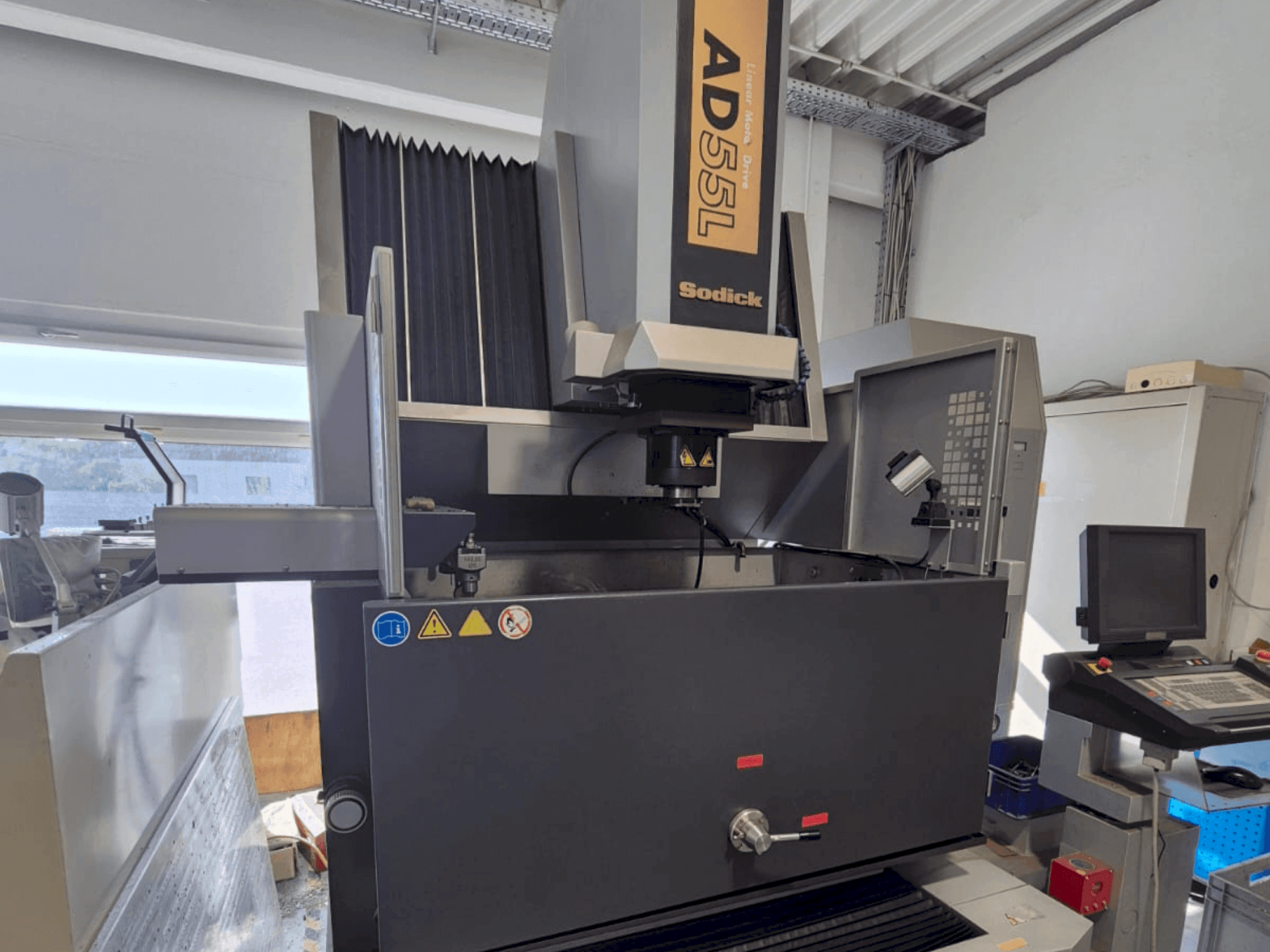

This Sodick AD 55 L die-sinking EDM machine was manufactured in 2016. It features a work tank with internal dimensions of 1200 x 800 x 500 mm and a capacity of 470 liters, supporting a maximum workpiece weight of 1000 kg. Equipped with a cooling unit for the linear motor, a C-axis, and a SGF generator unit, it offers robust performance for precision applications. Contact us for more information about this machine.

Overview

brand: Sodick
year: 2016
MODEL: AD 55 L
application type: EDM
Location: Germany
machine type: Die-Sinking EDM Machine

Technical Information - Sodick AD 55 L

General Data

Measurements width: 2435 mm
Measurements depth: 2335 mm
Measurements height: 2635 mm
Machine weight: 4020 kg

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece weight: 1000 kg

Media

Air pressure: 0.65 MPa

Additional Information

Additional equipment

Features: 10-year warranty on positioning accuracy, LN Professional, Cooling unit for linear motor, Glass scales (X, Y, Z axes), Remote control, USB port, Shuttle ATC, C-axis (SEC-10), SGF generator unit, 15" TFT touchscreen, Dielectric cooling unit, Automatic voltage stabilizer, Paper filters (2), Fire extinguisher, Mouse, LAN port, Work lighting

Machine Benefits

Technical Machine Benefits

Machine footprint (w x d): 3300 x 3535 mm
Work tank internal dimensions (w x d x h): 1200 x 800 x 500 mm
Work tank capacity: 470 l
Workbench size (w x d): 750 x 550 mm
Air flow: 100 nl/min
Power requirement: 3-phase 50/60hz, 10 kva

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
