Sodick - AQ 400LIT-EDM-SOD-2012-00003

Name: Sodick AQ 400L
Brand: Sodick
SKU: IT-EDM-SOD-2012-00003
Price: 35000 EUR
Availability: InStock

35,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Sodick AQ 400L - Wire EDM For Sale | gindumac.com

Show in original language

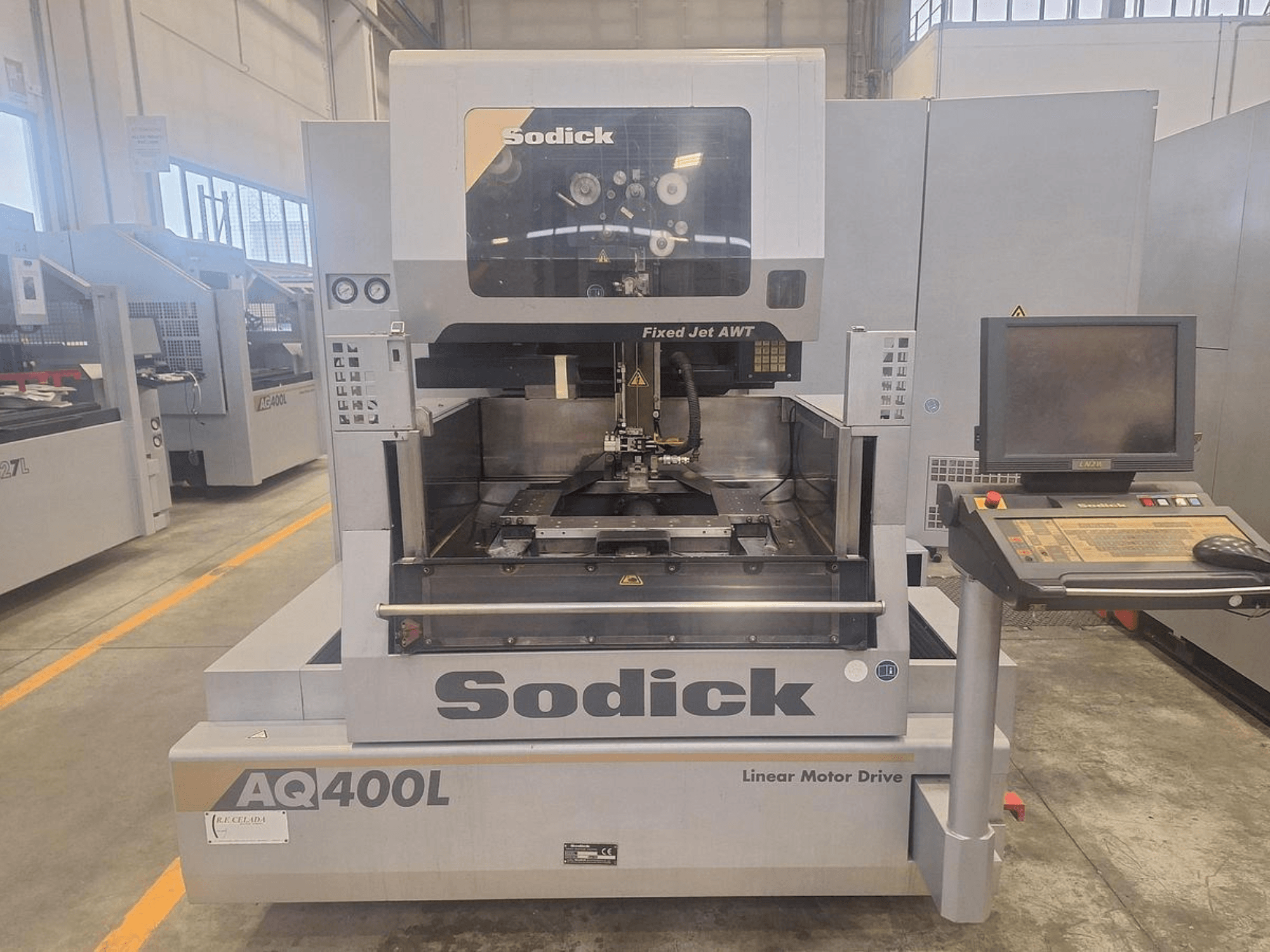

This 5-axis Sodick AQ 400L wire EDM machine was manufactured in 2012. It features X, Y, Z travels of 400 mm, 300 mm, and 250 mm respectively, and U/V axis travel of 80 × 80 mm. Capable of taper cutting ±20°, it handles workpieces up to 590 × 450 × 250 mm and 550 kg. If you are looking to get high-quality EDM capabilities, consider the Sodick AQ 400L machine we have for sale. Contact us for more information.

Overview

brand: Sodick
year: 2012
MODEL: AQ 400L
application type: EDM
Location: Italy
machine type: Wire EDM Machine

Technical Information - Sodick AQ 400L

Dimensions

Machine Height: 2095 mm
Machine Length: 1920 mm
Machine Weight: 4300 kg

Movement

Number of Axes: 5
X-axis Travel: 400 mm
Y-axis Travel: 300 mm
Z-axis Travel: 250 mm

Technical Specification

Max. Wire Diameter: 0.3 mm
Min. Wire Diameter: 0.15 mm

Additional Information

U/V axis travel: 80 × 80 mm
Taper cutting on 80 mm: ±20°
Max workpiece size: 590 × 450 × 250 mm
Max workpiece weight: 550 kg
Work tank size: 935 × 770 mm
Max floor space: 2,980 × 3,675 × 3,350 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
