Soraluce SP-8000

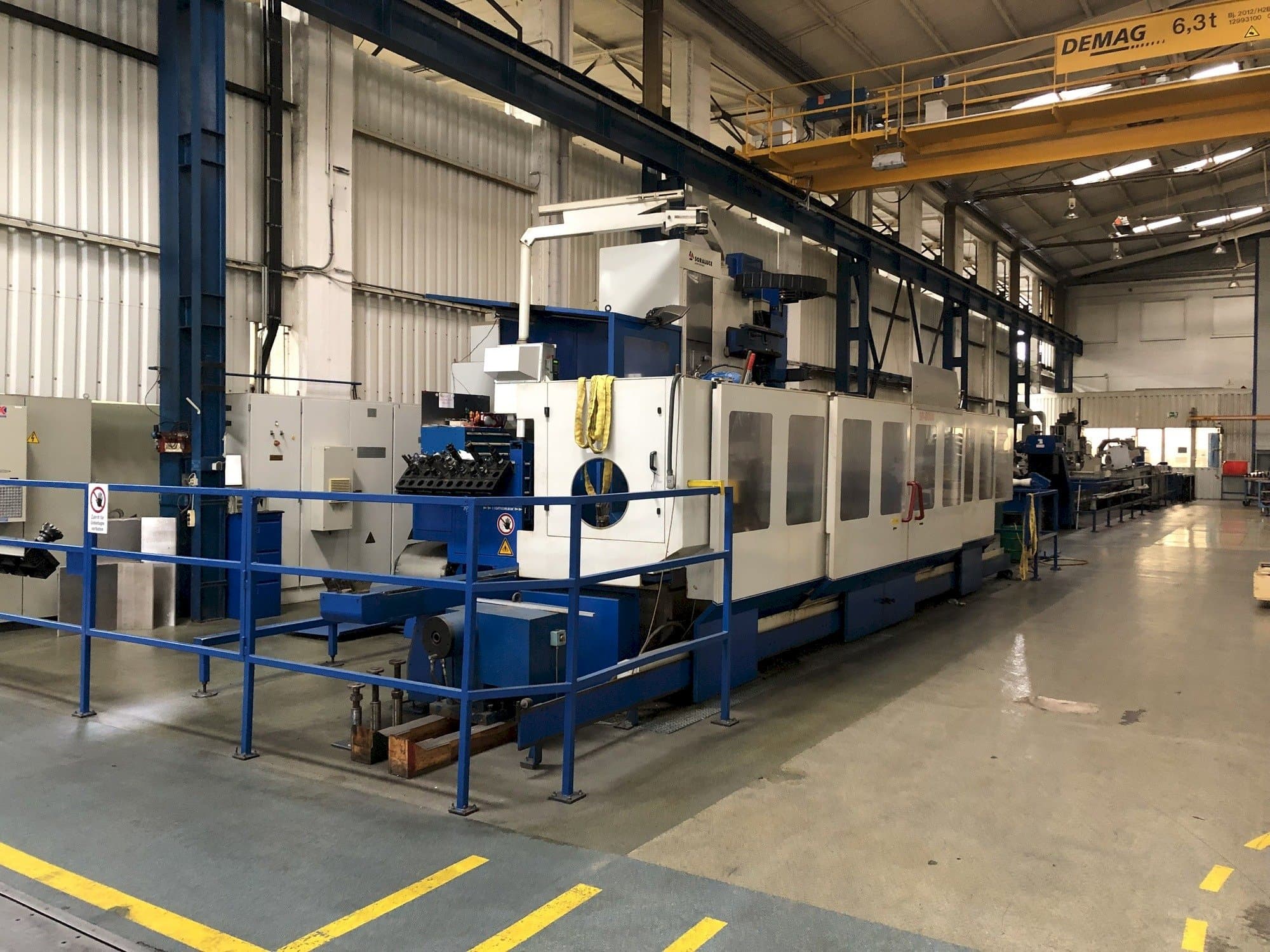

Photo Gallery

Soraluce - SP-8000AT-MIL-SOR-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Soraluce SP-8000 Milling Machine

Show in original language

This Soraluce SP-8000 Milling Machine from 2002 was made in Spain and has been operative for 16000 hours since then. Equipped with a SIEMENS Sinumerik 840D Control unit, this machine is able of performing with a spindle speed up to 4000 rpm.

Overview

brand: Soraluce
year: 2002
MODEL: SP-8000
production hours: 16000
application type: Milling
Location: Austria
machine type: Gantry Milling Machine
control unit brand: SIEMENS

Technical Information - Soraluce SP-8000

General Data

Measurements width: 12000 mm
Measurements depth: 5000 mm
Measurements height: 4000 mm
Machine weight: 30500 kg

Control Unit

Model: Sinumerik 840D
CNC main language: German
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 4000 rpm 1/MIN

Movement

X-AXIS Movement: 6500 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 1600 mm

Workpiece

Workpiece x: 8000 mm
Workpiece y: 1100 mm
Workpiece z: 1500 mm
Workpiece weight: 3000 kg

Table

Outer length: 8000 mm
Outer width: 1100 mm
Distance between: 22 mm

Tools

Slots in storage: 100
Max weight: 20 kg
Max tool diameter: 125/250 mm
Max tool length: 400 mm
Type of tool holder: Din 69871

Media

Main electronic connection: 380 V
Power consumption: 64 kVa

Additional Information

Machine Benefits

Qualitative Machine Benefits

Little working time

Technical Machine Benefits

Very stable machine

Machine History

Industries

Petrochemical industries

End product

Pipes

Material type

High alloyed steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
