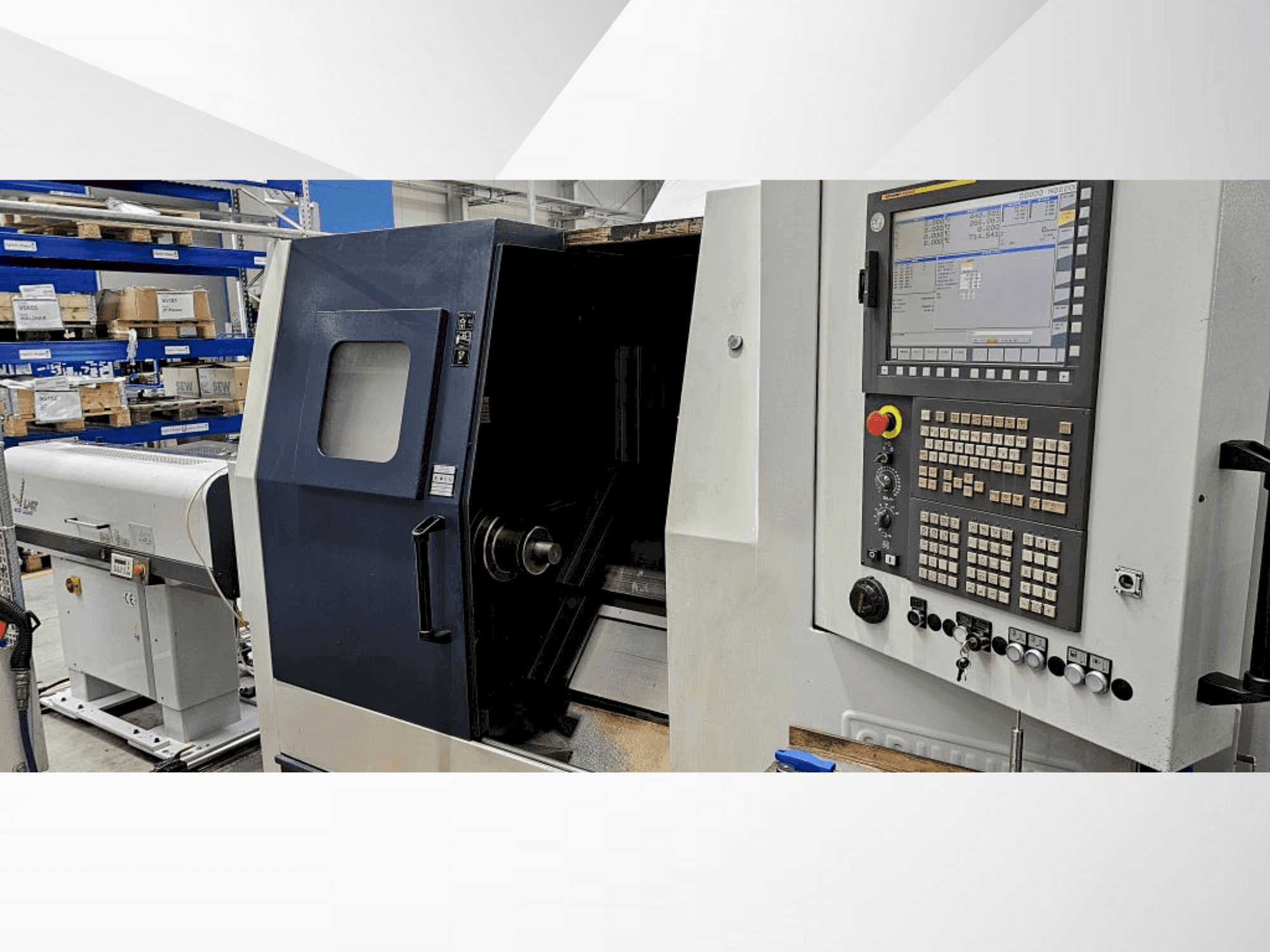

This 3-axis SPINNER TC600 horizontal turning machine was manufactured in 2007. It features a GE Fanuc 31iTA control system, a 16-position revolver, and a spindle speed of up to 4,000 rpm with a power output of 22kW. The travel range is X=275mm, Y=700mm. It includes a high-pressure pump, tool setter, and a chip conveyor, enhancing its operational efficiency. If you are looking to get high-quality turning capabilities consider the SPINNER TC600 machine we have for sale. Contact us for more information.
Overview
- brand: SPINNER
- year: 2007
- MODEL: TC600
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - SPINNER TC600
Control Unit
- Control Brand: FANUC
- Control Model: 31iTA
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- Includes software options for side machining and turning operations
- Turret: 16-position revolver for tool holders according to DIN69830/30mm / 16 tool stations for milling and drilling operations
- Tail Stock: CNC Tailstock Kir TC600 series
- Approximately 30 different VDI30 tools included
- Tool setter for TC600
- Hydraulic hollow clamping cylinder with infinitely adjustable clamping forces
- Electrical interface for connection of bar feeders
- Full splash guard and coolant system
- Work area light and pneumatic extraction system
Machine Benefits
Technical Machine Benefits
- Chip conveyor for tg800
- High-pressure pump, 13 bar
- Two-tone paint ral 7035/5008
- Documentation includes manuals in paper and digital forms
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
