- ➤ Used Starrag Heckert Dynamic CWK 400D | Machining Center

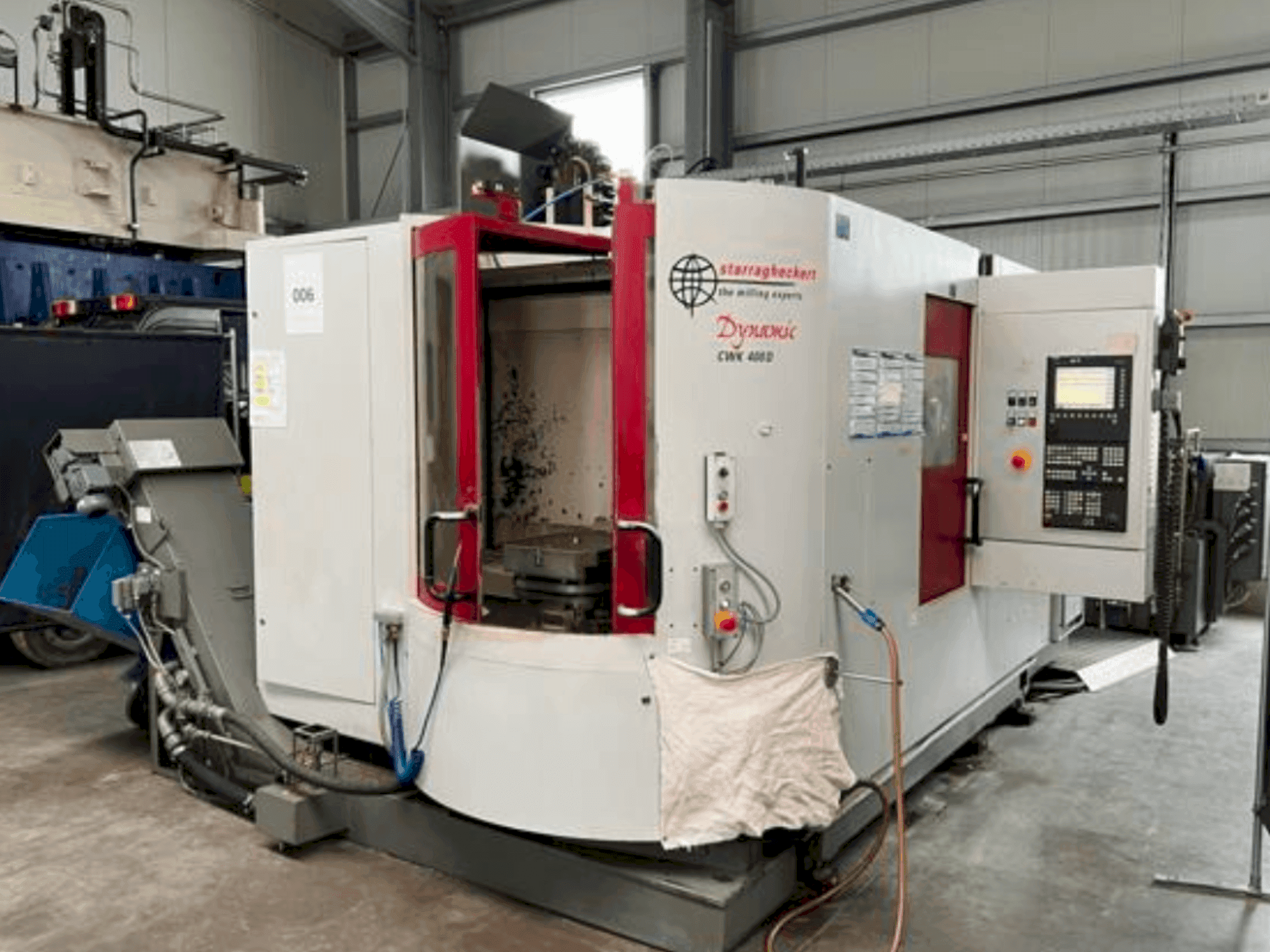

This 4-axis Starrag Heckert Dynamic CWK 400D was manufactured in 2005. It features a Siemens Sinumerik 840D control system, spindle speeds up to 10,000 rpm, and a dual pallet system with rapid 8-second pallet changes. The machine includes a tool magazine with 60 positions and a high-capacity coolant system. Ideal for complex machining tasks. Contact us for more information about this machine.
Overview
- brand: Starrag Heckert
- year: 2005
- MODEL: Dynamic CWK 400D
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - Starrag Heckert Dynamic CWK 400D
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D
Dimensions
- Machine Depth: 5800 mm
- Machine Weight: 12800 kg
- Table Load: 4000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 625 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 650 mm
Technical Specification
- Max. Tool Weight: 10 kg
- Spindle Power: 24 kW
- Spindle Speed: 10000 RPM
Additional Information
Additional equipment
- Renichaw measuring probe
- Tool breakage detection: Yes, in tool magazine
- Flushing gun at the setup station
- Waterfall shower
- Paper belt filter
- Pallet sequential operation
- Enclosed work area enclosure according to UW
- Computer connection via Ethernet interface
- Network connection
Machine Benefits
Technical Machine Benefits
- Bia axis: b-axis (360 x 0. 001°) 100 rpm
- Working feed range x/y/z: 1-4000 mm/min
- Table/pallet size (l x w in mm): 2 pallets 500 x 400 mm
- Table/pallet alignment type: t-slots according to din 55201
- Pallet changer / setup station / storage space: yes // pallet change / tool change time: 8 sec / 5 sec
- Table/pallet load (in kg): 4000 kg
- Tool magazine type: chain magazine
- Tool diameter with free adjacent positions: 160 mm
- Max. Total tool weight: 200 kg
- Tool magazine positions: 60
Extra Information
Technical documents and layout plan available Machine-Specific Data Machine accuracy: VDI/DGQ 3441 Media Coolant type/content: Emulsion (internal & external) / approx. 1100L Coolant unit: Knoll with fleece filter 30, 40, 50 bar via M command
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
