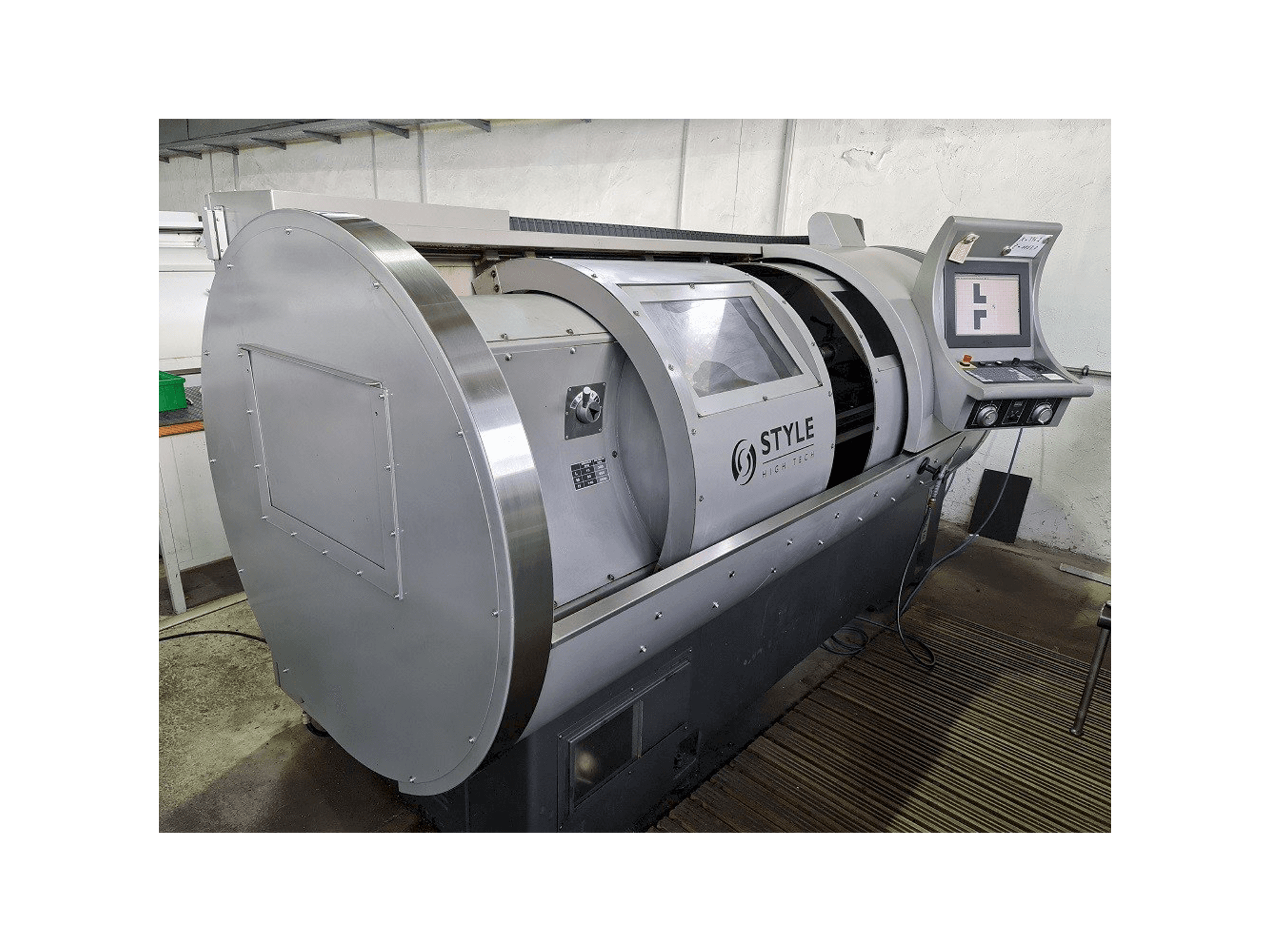

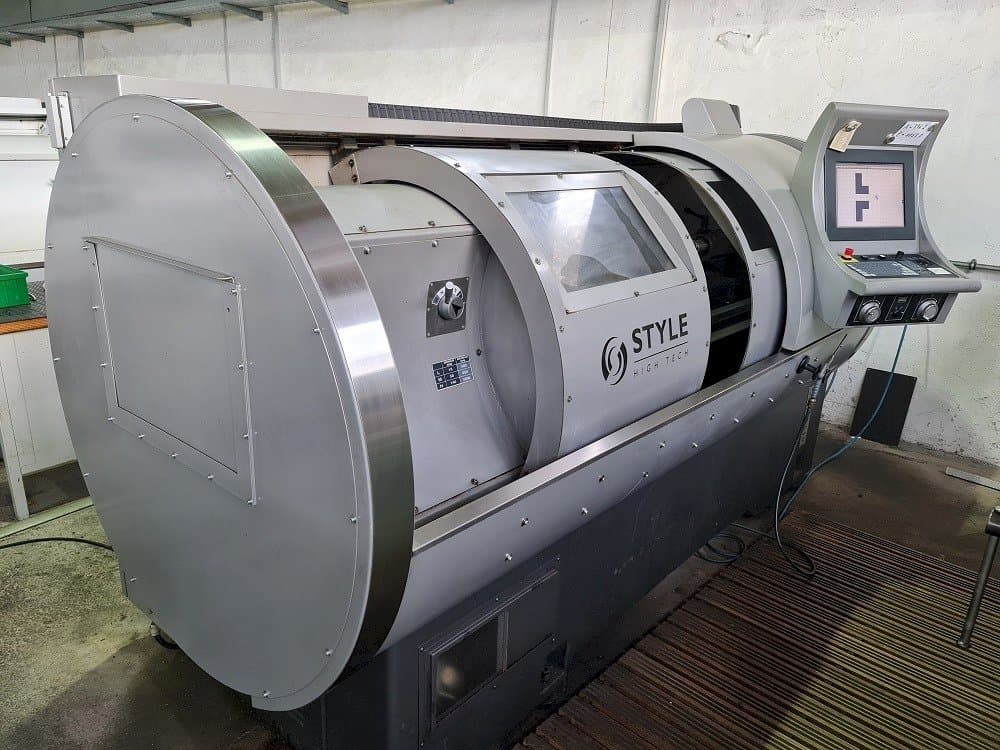

STYLE 510 X 1350 Lathe

Show in original language

This STYLE 510 X 1350 Lathe was manufactured in the year 2010 in Holland. It is equipped with a STYLE control unit and has 2 axis. The machine has a spindle speed of 2500 rpm.

Overview

brand: STYLE
year: 2010
MODEL: 510 X 1350
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - STYLE 510 X 1350

Dimensions

Machine Depth: 3200 mm
Machine Height: 1800 mm
Machine Weight: 2700 kg

Movement

Number of Axes: 2

Technical Specification

Spindle Power: 16 kW
Spindle Speed: 2500 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Turning diameter over the bed 510 mm
Turning diameter over the slide 300 mm
Center width 1350 / 1850 mm
Bed width 330 mm
Max. Weight between centers 600 kg
Morse taper mounting d1-8 / d1-8
Ball screw Ø x-axis 25 mm, ball screw Ø z-axis 40 mm
Rapid traverse 8 m/min, feed rate 0. 01-1000 mm/min
Reitstock: quill diameter 75 mm ,quill stroke 150 mm ,quill size 5 mt

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
