STYLE 510

Photo Gallery

STYLE - 510NL-TUR-STY-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

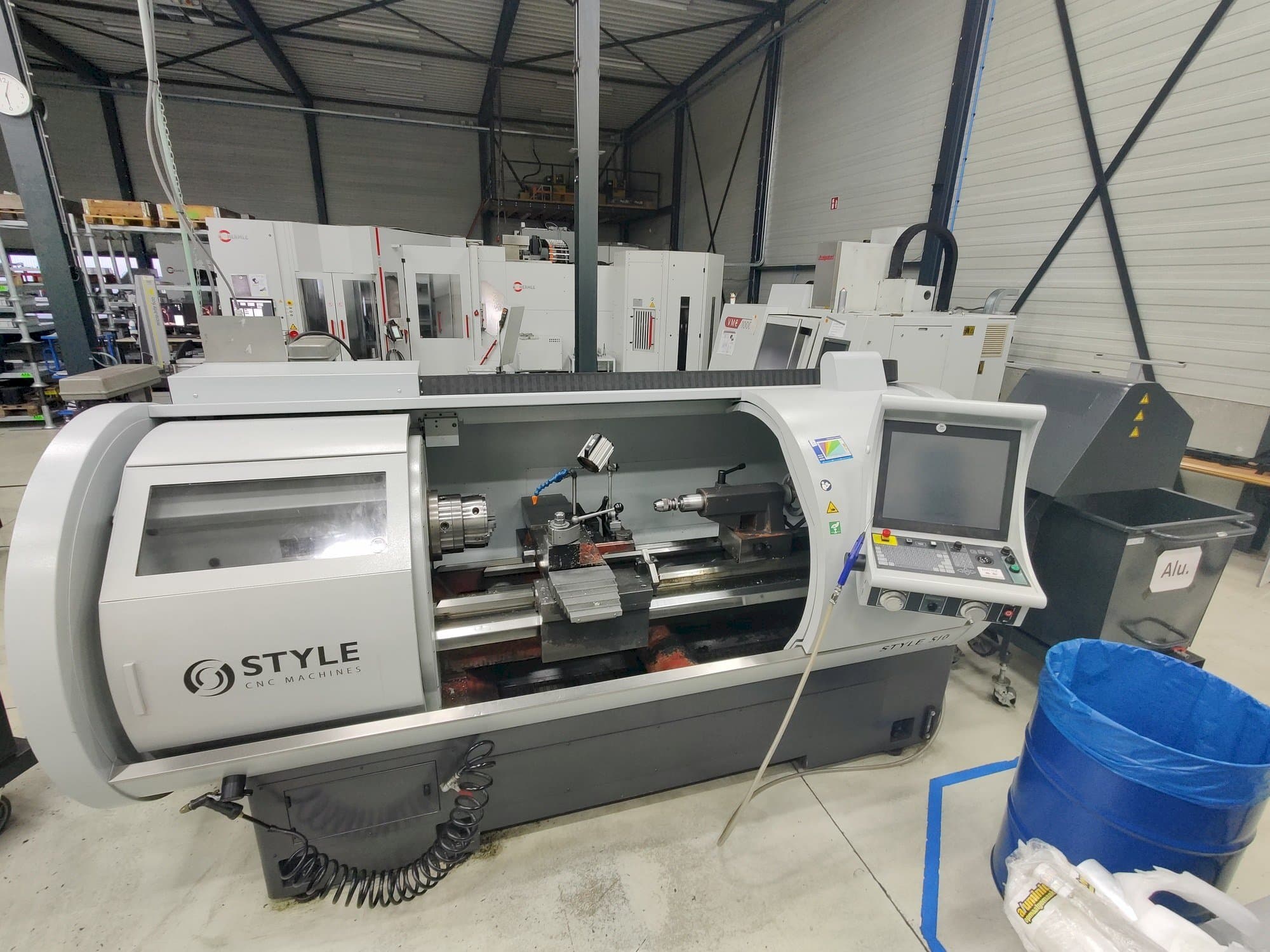

This STYLE 510 Lathe was manufactured in the year 2019 in The Netherlands. It works with a spindle speed up to 2500 rpm, and a spindle bore 80 ø mm.

Overview

brand: STYLE
year: 2019
MODEL: 510
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine

Technical Information - STYLE 510

General Data

Measurements width: 3200 mm
Measurements depth: 1800 mm
Measurements height: 1800 mm
Machine weight: 2700 kg

Main drive

Spindle speed range: 2500 1/MIN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 510 mm
- - Swing over support: 300 mm
- - Distance between centers: 1350 mm
- - Bed width: 330 mm
- - Maximum weight between centers: 600 kg
- - Main motor power (s6): 7. 5 kw
- - Spindle bore: 80 ø mm, with gearbox: 1180(102)
- - Spindle taper: d1-8
- - Ball screw spindle ø x-axis: 25 mm
- - Ball screw spindle ø z-axis: 40 mm
Qualitative Machine Benefits:
- - Rapid movement: 8 m/min
- - Feed rate: 0. 01 – 2000 mm/min
- - Quill: 75/80 ø mm
- - Quill stroke: 150 mm
- - Quill taper: 5 mt

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
