Tacchella Proflex 3

Photo Gallery

Tacchella - Proflex 3DE-GRI-TAC-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Tacchella Proflex 3 For Sale | gindumac.com

Show in original language

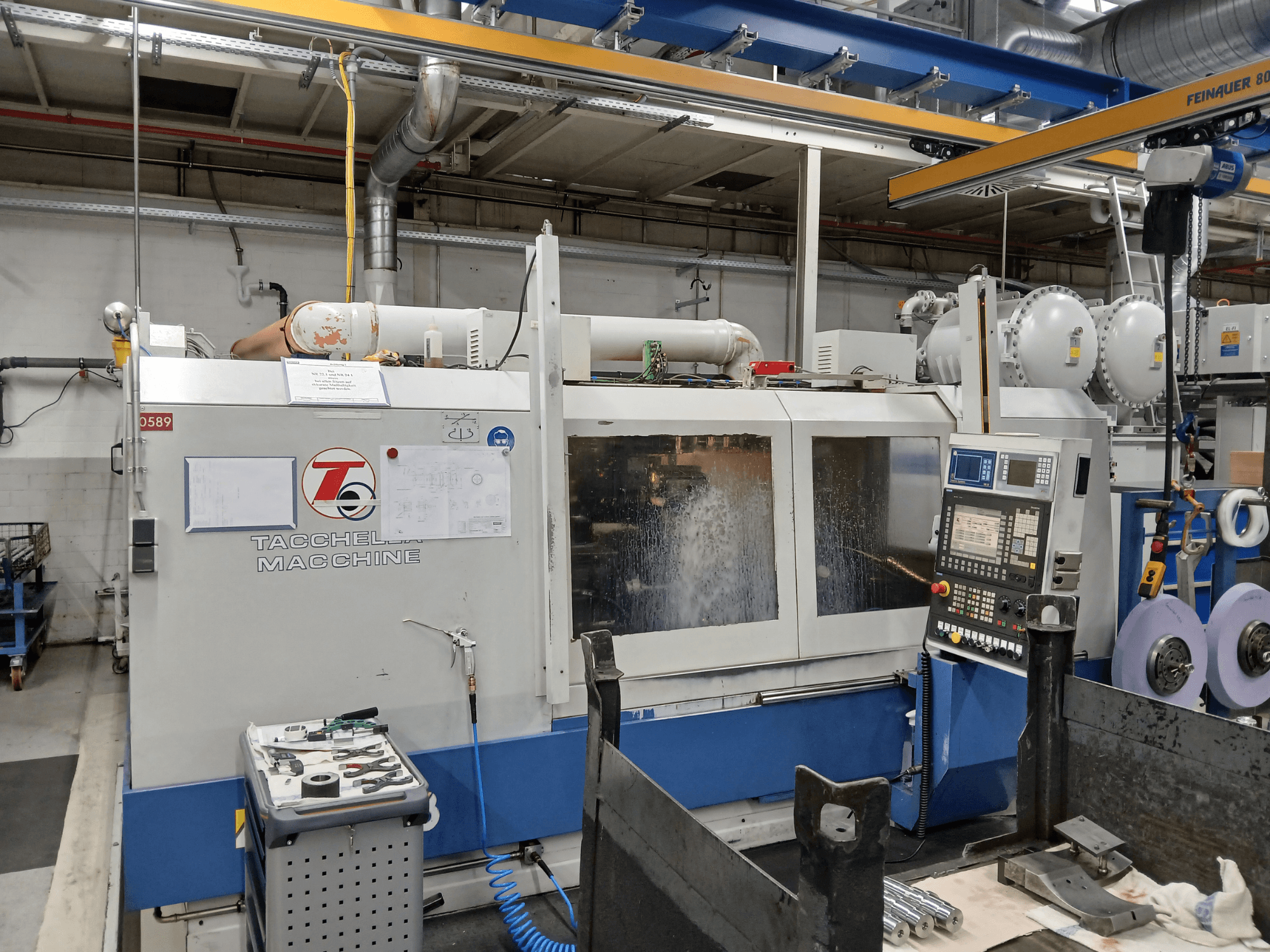

This 4-axis Tacchella Proflex 3 cylindrical grinding machine was manufactured in 2007. It features a grinding length of 1200 mm, a max grinding diameter of 350 mm, and a total load capacity of 47 kW. The machine is equipped with a Siemens Sinumerik 840D control system, ensuring precise and efficient operations. If you are looking to get high-quality grinding capabilities, consider the Tacchella Proflex 3 machine we have for sale. Contact us for more information.

Overview

brand: Tacchella
year: 2007
MODEL: Proflex 3
application type: Grinding
Location: Germany
machine type: Cylindrical Grinding Machine

Technical Information - Tacchella Proflex 3

Dimensions

Machine Weight: 9600 kg

Movement

Number of Axes: 4
X-axis Travel: 350 mm
Z-axis Travel: 1750 mm

Additional Information

Distance between centres: 1600 mm
Grinding length: 1200 mm
Centre height: 180 mm
Max. grinding diameter: 350 mm
Max. workpiece weight: 250 kg
Total load: 47 kW
Total axes: 4 (X, Z, B, C)
X-axis: stroke 350 mm; rapid 20,000 mm/min; resolution 0.0001 mm
Z-axis: stroke 1750 mm; rapid 20,000 mm/min
B-axis (wheelhead swivel): -30° to +210°; resolution 0.001°
C-axis (headstock): variable speed; angular control
Wheelhead: turret for 3 wheels; 2 spindles 15/11.5 kW; air cushion; coolant; optional 63 m/s
Front grinding wheel: 610×100×203.2 mm; 50 m/s; 15 kW
Rear wheel (thread/plunge): 508×80×203.2 mm; 50 m/s; 11.5 kW
Headstock: C-axis drive; 15 kW spindle; 100 Nm torque; water-cooled
Tailstock: hydraulic; quill 100 mm; self-aligning; adjustable centre pressure
Dressing: tailstock dresser; optional headstock dresser; programmable diamond roll
Measuring: in-process diameter and length gauges
Hydraulic: auxiliary unit with filter/flow monitor
Coolant: main and bed flushing circuits; full enclosure; safety interlocks
CNC control: Siemens Sinumerik 840D OP12; 2.5 MB CNC; 128 kB PLC; Pentium III PC; Windows XP; multiple interfaces

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
