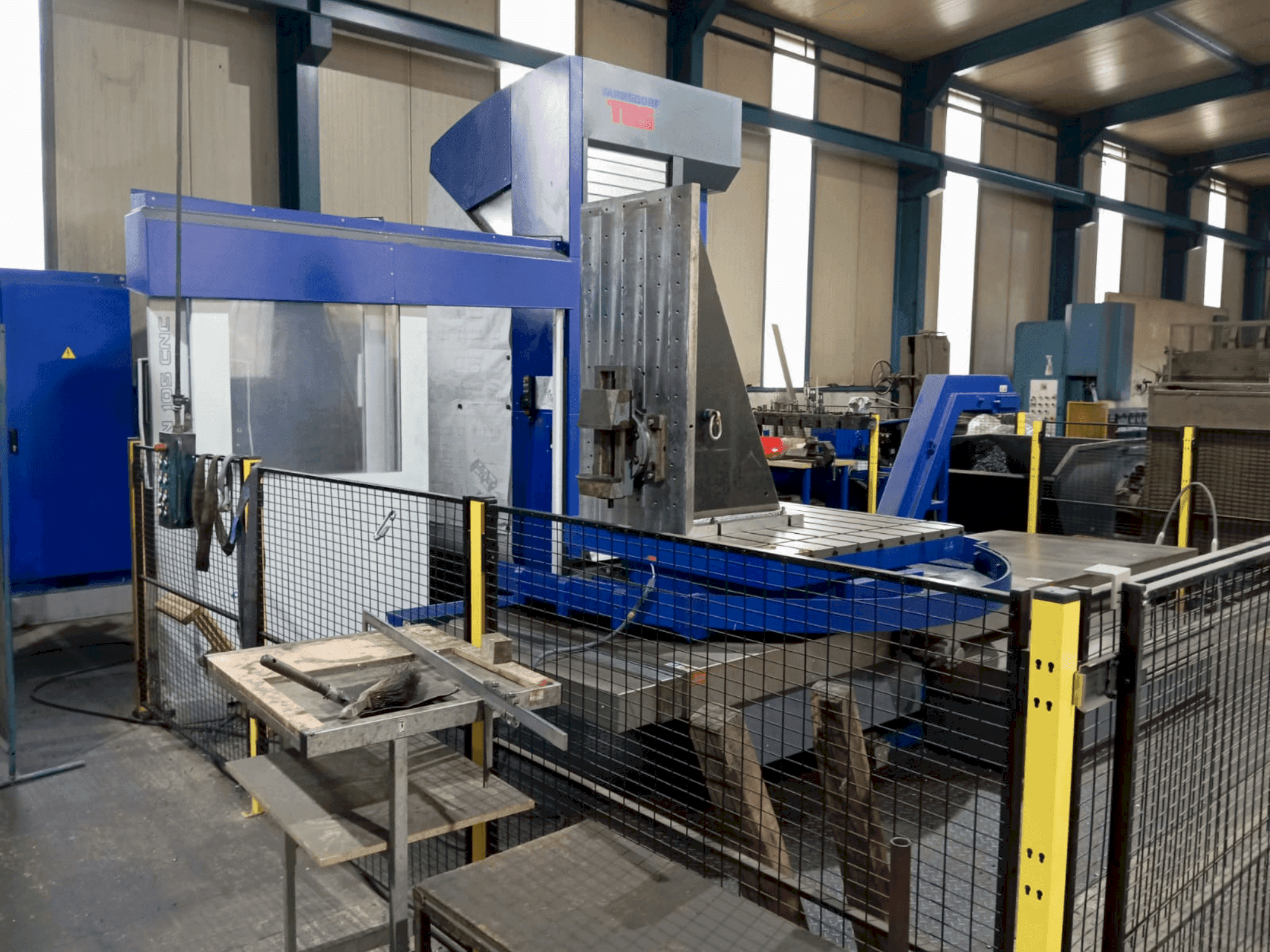

Front view of TOS Vansdorf WHQ 105 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TOS Vansdorf WHQ 105

Photo Gallery

TOS - Vansdorf WHQ 105DE-OTH-TOS-2020-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used TOS Vansdorf WHQ 105 For Sale | gindumac.com

Show in original language

This 4-axis TOS Vansdorf WHQ 105 boring machine was manufactured in 2020. It features a Heidenhain TNC 640 control system, a universal milling head, and a mechanical spindle drive. The machine design includes dimensions X = 1,800 mm, Y = 1,250 mm, Z = 1,250 mm, and W = 630 mm. The table clamping area is 1,400 x 1,400 mm with a maximum load capacity of 5,000 kg. If you are looking to get high-quality boring capabilities, consider the TOS Vansdorf WHQ 105 machine we have for sale. Contact us for more information.

Overview

brand: TOS
year: 2020
MODEL: Vansdorf WHQ 105
application type: Other Machine Tools
Location: Germany
machine type: Boring Machine (Metal)
control unit brand: HEIDENHAIN

Technical Information - TOS Vansdorf WHQ 105

General Data

Measurements width: 1250 mm
Measurements depth: 1800 mm
Measurements height: 1250 mm

Control Unit

Brand: HEIDENHAIN
Model: TNC 640

Main drive

Spindle speed range: 3000 rpm 1/MIN
Spindle motor power: 20 kW
Tool taper: ISO 50
Number of axis: 3

Table

Table load: 5000 kg

Additional Information

Additional equipment

Schimpke oil cooler DK 28-V
CHOV 20 bar belt filter system with two cooling circuits
Internal cooling through the work spindle at approx. 20 bar
External cooling at 3 bar
900 l coolant tank with mounted RAPID 3 oil skimmer
Universal milling head - manually attachable

Machine Benefits

Technical Machine Benefits

Table clamping area: 1400 x 1400 mm
Max. Permissible spindle torque: 1000 nm
Control system on: 4549 hours
Machine on: 1793 hours
Program run: 618 hours
Hydraulics: 6 hours
Work spindle face diameter: 128. 57 h5 mm
Mechanical spindle drive ratio: 1:1
Rotation range of the head sections - degrees: 2x ±180

Extra Information

Standard chip conveyor: X = 1800 mm Incline angle: 60° Belt speed: 4.35 m/min Conveyor belt width: 175 mm Total conveyor belt width: 291 mm Link spacing: 63 mm Motor power: 0.55 kW 3D probe with wireless transmission, type RWP 38.41 Brand M & H for Heidenhain control Steep taper DIN 69871 SK 50 with cable for TNC 640 HSCI control, including 15 m Bidi cable

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
