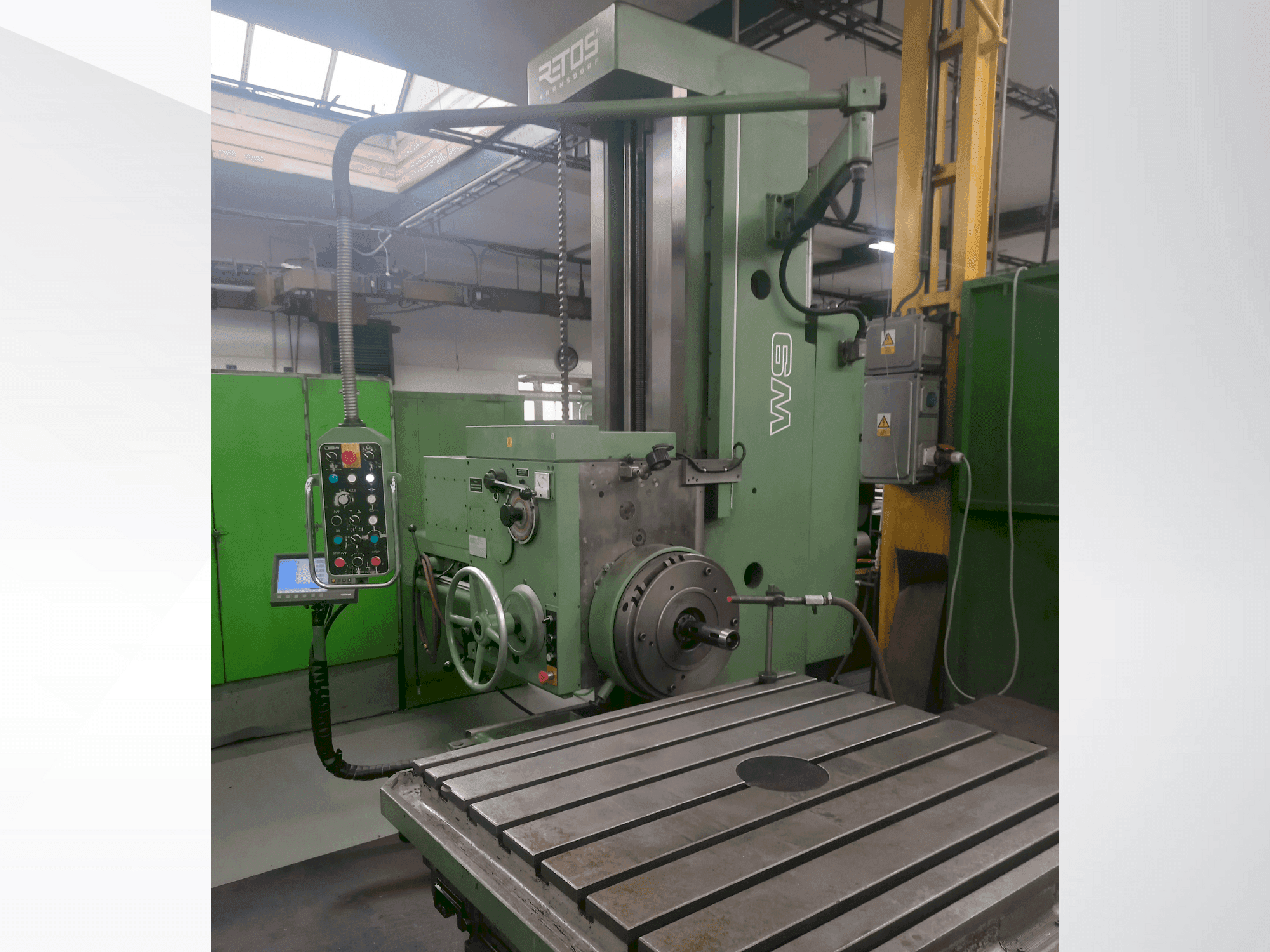

This 4-axis TOS W9 boring machine was manufactured in 1974 and refurbished in 2016. It features a spindle diameter of 90 mm, ISO 40 taper, and a spindle speed range of 14-1400 rpm. The table measures 1000x1120 mm with a load capacity of 3000 kg. Ideal for precise heavy-duty work, the TOS W9 machine we have for sale represents a robust addition to any workshop. For more information about this boring machine, please reach out to us.
Overview
- brand: TOS
- year: 1974
- MODEL: W9
- application type: Other Machine Tools
- Location: Czech Republic
- machine type: Boring Machine (Metal)
- availability: Immediately
Technical Information - TOS W9
Main drive
- Spindle speed range: 14 – 1400 1/MIN
- Spindle motor power: 7,5 kW
- Tool taper: ISO 40
- Number of axis: 4
Movement
- X-AXIS Movement: 1250 MM
- Y-AXIS Movement: 1120 MM
- Z-AXIS Movement: 1250 MM
Table
- Outer length: 1000 MM
- Outer width: 1120 MM
- Table load: 3000 kg
Additional Information
- Technical Machine Benefits:
- - Workpiece face plate diameter: 480 mm
- - Workpiece max. Diameter of face turning: 710 mm
- - Refurbished in 2016, digital measurement of linear axes and table rotation with position indication
- - Spindle diameter: 90 mm Working feeds X, Y, Z, W, U: 12.5 – 600 mm/min
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
