TRAUB - TNC 65DE-TUR-TRA-1996-00003
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used TRAUB TNC 65 - 1996 - Lathe For Sale | gindumac.com

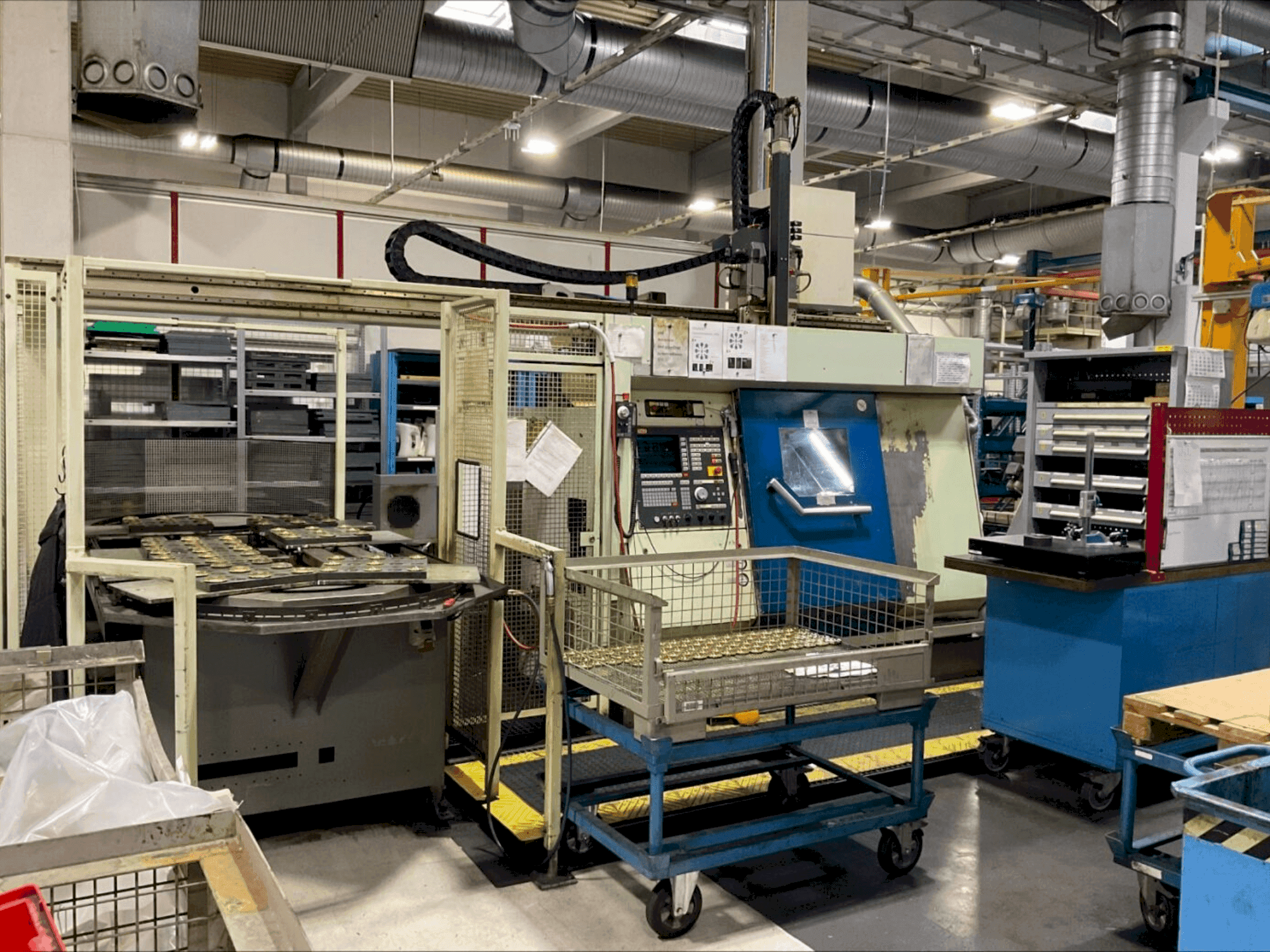

This TRAUB TNC 65 lathe was manufactured in 1996. It features a robust TRAUB TX 6F control unit, main and counter spindles with a 65mm diameter, and a drive power of 18.5 kW. The machine includes a portal loader, scraper chip conveyor, and a coolant capacity of 300 liters. Ideal for precision tasks, the TRAUB TNC 65 machine we have for sale is a valuable addition to any workshop. Contact us for further details regarding this lathe.
Overview
- brand: TRAUB
- year: 1996
- MODEL: TNC 65
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: TRAUB
Technical Information - TRAUB TNC 65
Control Unit
- Control Brand: TRAUB
- Control Model: TX 6F
Technical Specification
- Spindle Power: 18.5 kW
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- FSH 5 handling system: Yes
- C-axis max. speed on main spindle: 80 l/min
- Torque on main spindle: 100 Nm
- Max. speed at 80 l/min torque on counter spindle: 30 Nm
- Coolant inlet direction: Yes // Capacity: 300 litres // Coolant cleaning system: Yes
- Chip discharge to the right: Yes
- Discharge height: 1200 mm
- Three-jaw power chuck SMW KNCS 175-40.5: Yes
- Portal loader: Included
- Optional driven and fixed tool holders for sale: Yes
Machine Benefits
Qualitative Machine Benefits
- Precision control with traub tx 6f, efficient chip management with scraper chip conveyor and coolant cleaning system
Technical Machine Benefits
- Scraper chip conveyor: yes
- Comprehensive handling system with fsh 5
- Drive torque: main spindle: 230 nm, counter spindle: 210 nm
- Main spindle diameter: 65 mm
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
