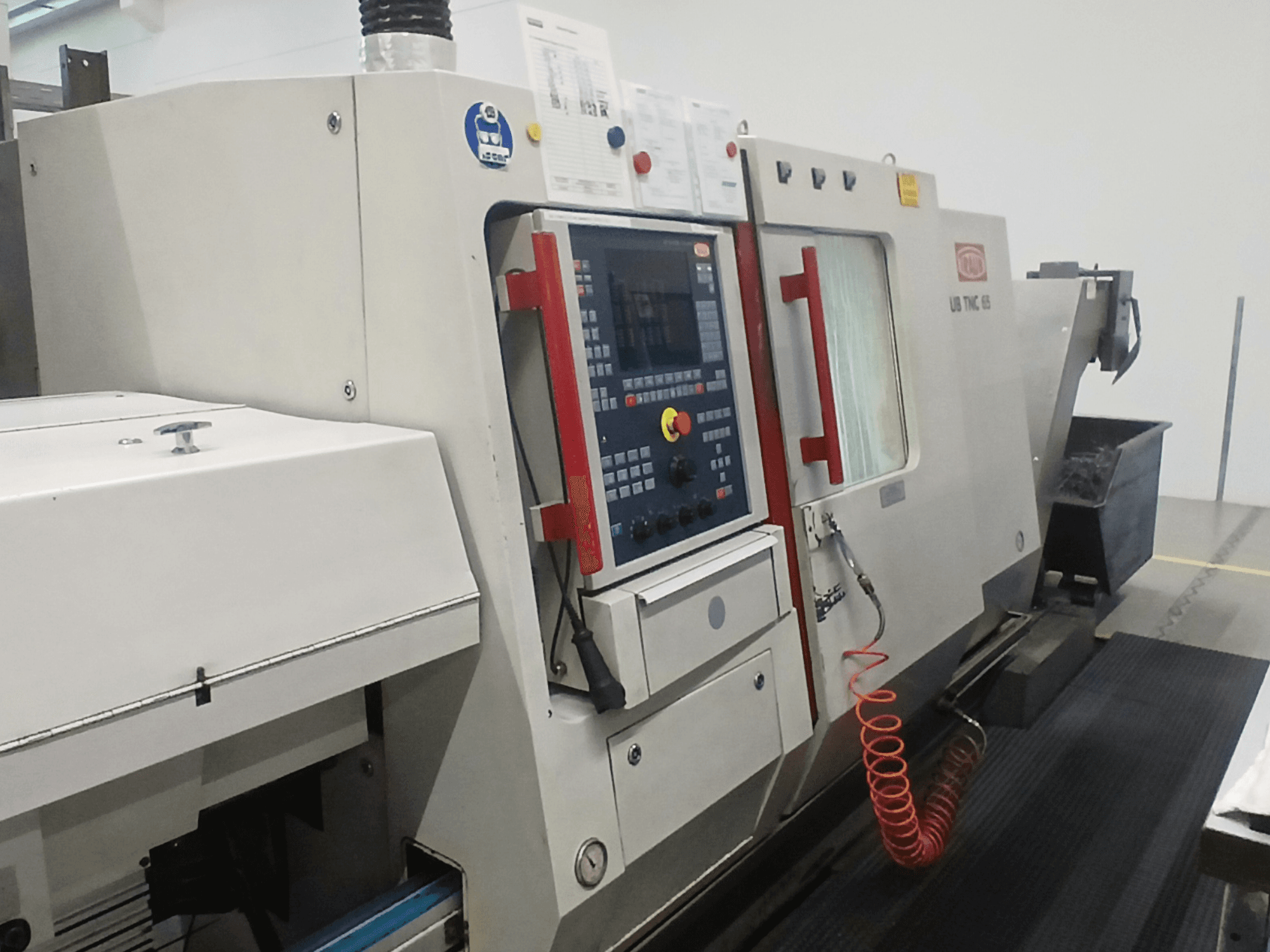

This 5-axis TRAUB TNC65 DG was manufactured in 1999. It features a robust control system with TRAUB TX8H technology, dual tool carriers with 10 stations each, and a maximum clamping diameter of 60 mm. The machine is equipped with a coolant cleaning system and a hinged belt conveyor for efficient chip removal. If you are looking to get high-quality turning capabilities, consider the TRAUB TNC65 DG horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: TRAUB
- year: 1999
- MODEL: TNC65 DG
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand:
Technical Information - TRAUB TNC65 DG
Movement
- Number of Axes: 5
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
Additional Information
Control system: TRAUB TX8H (32-bit technology)
Main spindle: Yes
Counter spindle: Yes
Spindle synchronization: Yes
C-axis main spindle: Yes
C-axis counter spindle: Yes
V-axis: Yes (programmable position)
Tool carriers: 2 (tool carrier I and II)
Driven tools on tool carrier I: Yes
Driven tools on tool carrier II: Yes
Number of tool stations: 10 per tool carrier
Thread cutting: Without compensating chuck
Drilling and milling units: X-direction (i=1 and i=3) and Z-direction (i=1 and i=3)
Coolant system: Cleaning system with cyclone filter
Coolant tank capacity: approx. 470 liters
Coolant pump: Supply for both turrets integrated
Hydraulic system: Yes
Operating voltage: 400 V / 50 Hz
Control voltage: 24 V DC
Accessory voltage: 230 V / 50 Hz
Multi-range transformer: 460 V / 400 V / 380 V / 220 V / 200 V
Standards: EC Machinery Directive, EMC Directive, Low Voltage Directive, DIN EN 292, DIN EN 294, DIN EN 418, DIN EN 60204
Tool monitoring: Tool breakage and wear monitoring
Programming software: TRAUB Polyform
Coolant type: Water-based coolant compatible
Additional equipment
Chip conveyor: Hinged belt conveyor
Bar feeder: TRAUB DNH 61-3000 (preparation included)
Workpiece ejection device: Yes
Workpiece removal device: Yes, with gripper
Collet system: Röhm, max clamping diameter 60 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
