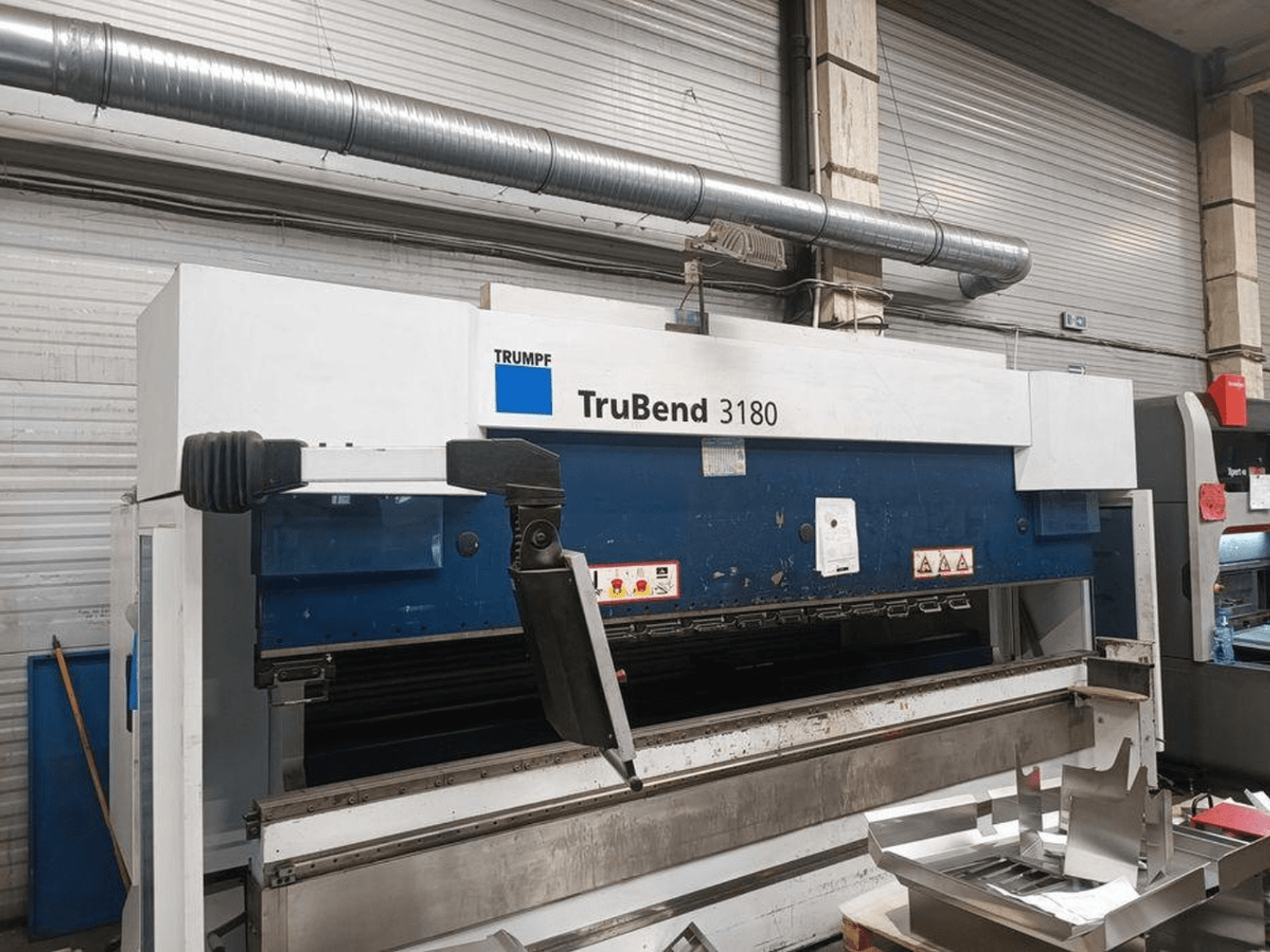

This 6-axis TRUMPF TRUBEND 3180 hydraulic press was manufactured in 2013. It features a bending capacity of 1800 kN and a bending length of 4140 mm. The machine includes a CNC control Delem T3000, a quick clamp system, and a 4-axis CNC backgauge with X, R, Z1, Z2. It operates on 400 V with a power consumption of 18.5 kW. Consider the opportunity to buy this TRUMPF TRUBEND 3180 hydraulic press. Contact us for more information about this machine.
Overview
- brand: TRUMPF
- year: 2013
- MODEL: TRUBEND 3180
- production hours: 14572
- application type: Bending
- Location: Poland
- machine type: Hydraulic Press
- control unit brand: DELEM
Technical Information - TRUMPF TRUBEND 3180
Control Unit
- Control Brand: DELEM
- Control Model: T3000
Dimensions
- Machine Height: 2330 mm
- Machine Length: 4610 mm
- Machine Weight: 13200 kg
Movement
- Number of Axes: 6
- X-axis Travel: 600 mm
- Y-axis Travel: 20 mm
Technical Specification
- Bending Length: 4140 mm
- Pressing Force: 1800 Kn
Additional Information
Installation height: 347 mm
Maximum opening height (table to upper beam): 470 mm
Beam tilt adjustment: ±3 mm
Free-standing frame gap: 3680 mm
Throat depth: 420 mm
Table width: 150 mm
Working height: 1000 mm
Axes & travel
Y-axis rapid traverse: 200 mm/s
Y-axis working speed: 10–15 mm/s
Y-axis return speed: 180 mm/s
Y-axis positioning accuracy: 0.01 mm
X-axis maximum backgauge range: 880 mm
X-axis speed: 500 mm/s
X-axis positioning accuracy: 0.05 mm
R-axis travel: 340 mm
R-axis speed: 200 mm/s
R-axis positioning accuracy: 0.1 mm
CNC backgauge: 4 axes (X, R, Z1, Z2)
Control & clamping
CNC control: Delem T3000 (standard 2-D graphical control)
CNC control features: 2D + Colour
Upper tool holder: TRUMPF
Lower tool holder: Manual
Clamping system: Quick Clamp
Electrical
Voltage: 400 V
Power consumption: 18.5 kW
Tank heater: No
Included options
Additional gauge finger: Yes
Gauge finger: Standard
Foot switch: Yes
Colour: Standard white-blue
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
