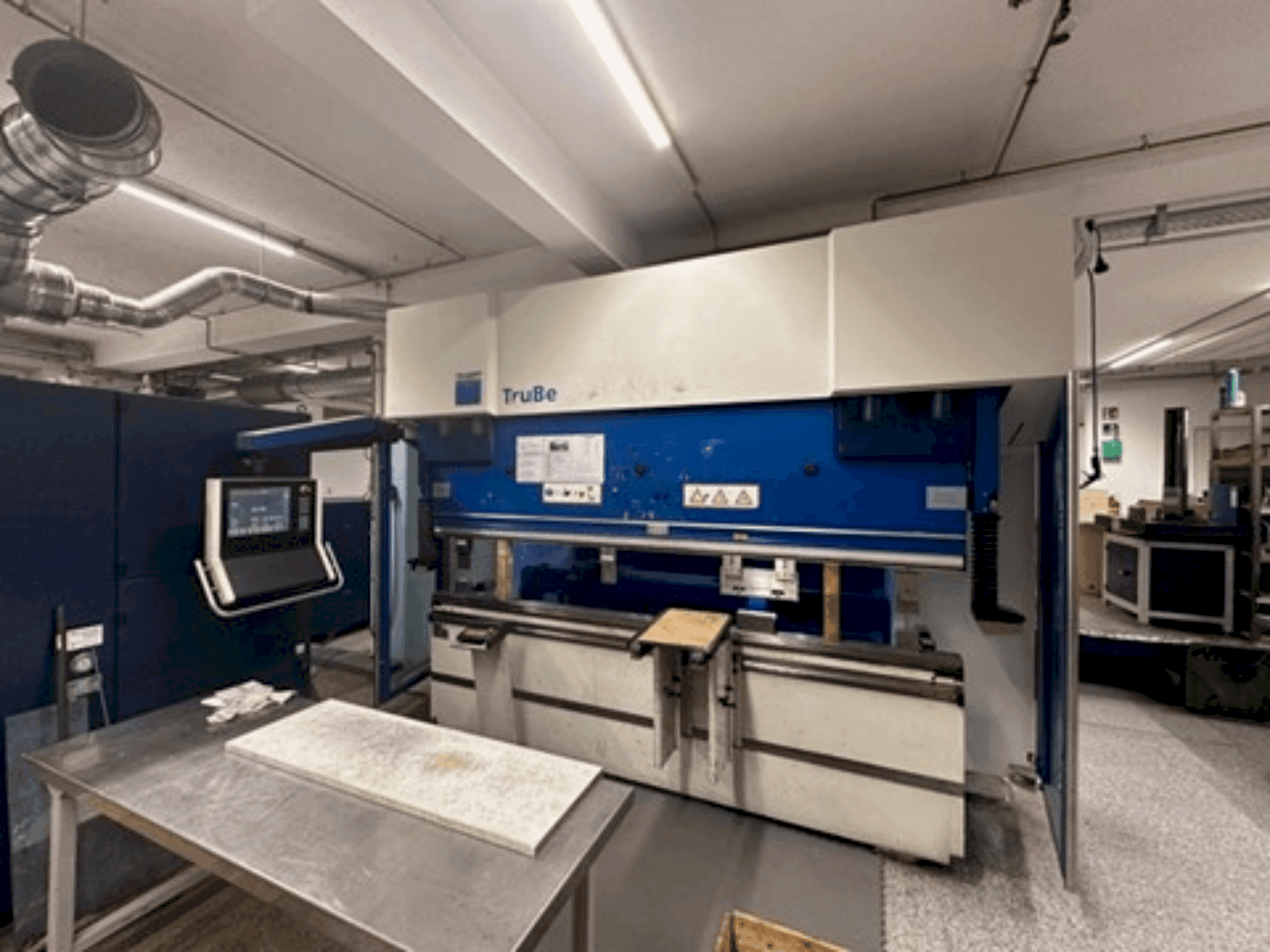

Front view of TRUMPF TruBend 5170  machine

TRUMPF - TruBend 5170DE-BEN-TRU-2014-00002

89,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis TRUMPF TruBend 5170 press brake was manufactured in 2008. It features a press force of 1700 kN and a bending length of 3230 mm. The machine dimensions include a width between columns of 2690 mm and a usable open height of 615 mm. Weighing 12200 kg, it's robust and reliable for precise bending tasks. If you are looking to get high-quality bending capabilities, consider the TRUMPF TruBend 5170 machine we have for sale. Contact us for more information.

Overview

  • brand: TRUMPF
  • year: 2008
  • MODEL: TruBend 5170
  • production hours: 68896
  • application type: Bending
  • Location: Germany
  • machine type: Press Brake
  • availability: Immediately
  • control unit brand: Trumpf

Technical Information - TRUMPF TruBend 5170

General Data

  • Measurements width: 1900 mm
  • Measurements depth: 3980 mm
  • Measurements height: 3000 mm
  • Machine weight: 12200 kg kg

Control Unit

  • Brand: Trumpf
  • Model: B03

Main drive

  • Pressing force: 1700 kN
  • Stroke: 445 mm
  • Number of axis: 5

Media

  • Air pressure: 6 bar

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Remark: machine will be sold because space is needed.
      • - Operating pressure (Üzemi nyomás): 300 bar
      • - Cycle time (Ütemtartó idő): 95 ms
      • - Voltage (feszültség): 3x400 v
      • - Nominal current (névleges áram): 41. 0 a
      • - Frequency (frekvencia): 50 hz
      • - Connection power (csatlakozási teljesítmény): 28. 0 kva
      • - Control voltage (vezérzési feszültség): 24 v
      • - Machine on: 68896. 3 hrs. , hydraulics on: 38581. 5 hrs. , press beam running time: 4906. 8 hrs.
    • Qualitative Machine Benefits:
      • - Safety distance (biztonsági szama): 190 mm
      • - At 220 mm/s speed: 10 mm
      • - At 160 mm/s speed: 3 mm

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
