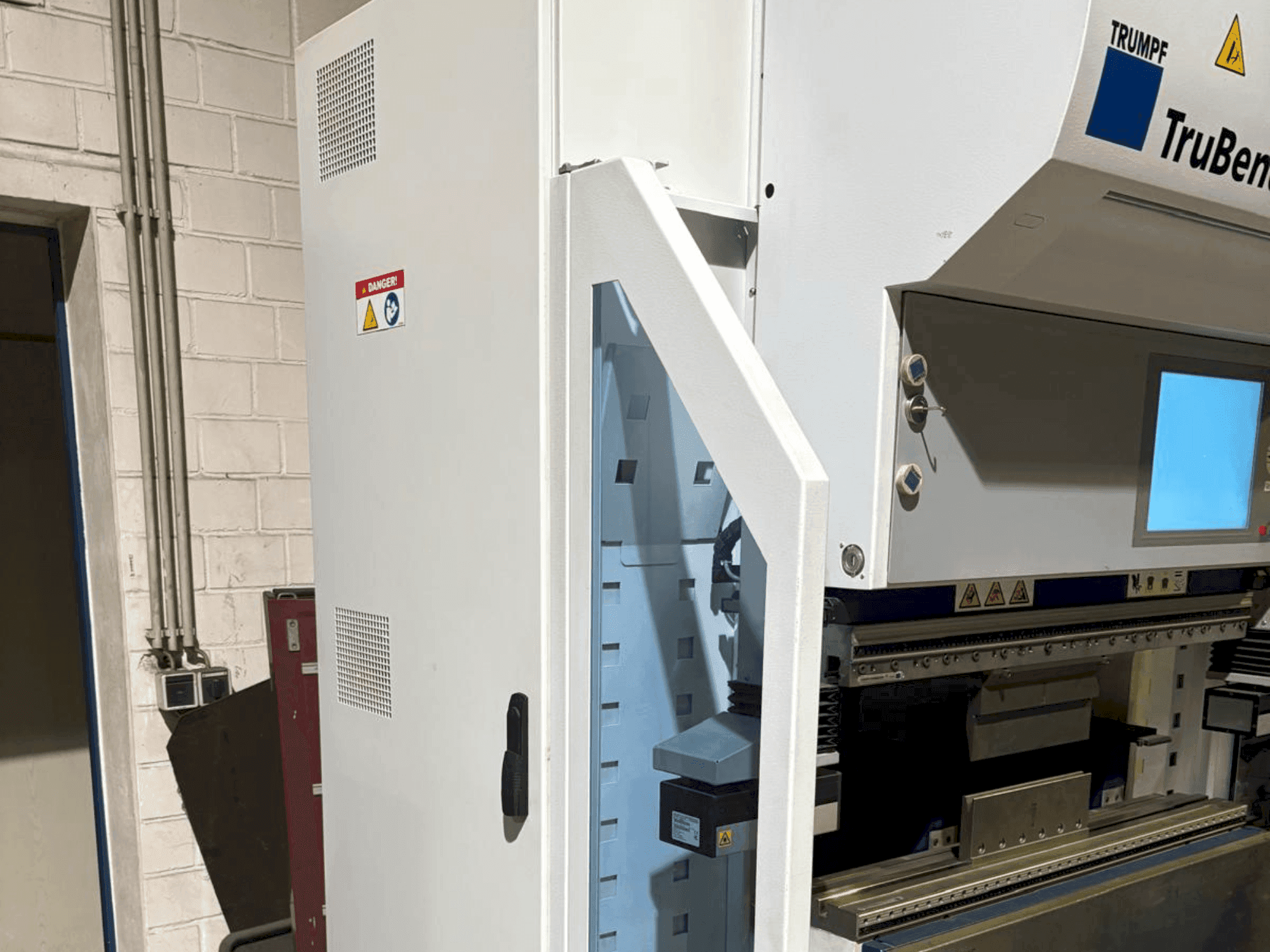

This TRUMPF TruBend 7036 press brake was manufactured in 2018. It features a press force of 360 kN and a bending length of 1020 mm. The machine includes a Touchpoint TruBend operating interface and offers a maximum stroke of 120 mm. Dimensions are 1900 mm in length, 1340 mm in width, and 2380 mm in height, weighing 2600 kg. If you are looking to get high quality bending capabilities consider the TRUMPF TruBend 7036 machine we have for sale.Contact us for more information.

Overview

brand: TRUMPF
year: 2018
MODEL: TruBend 7036
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - TRUMPF TruBend 7036

General Data

Measurements width: 1340 mm
Measurements depth: 1900 mm
Measurements height: 2380 mm
Machine weight: 3300 kg

Main drive

Pressing force: 360 kN
Bending length: 1020 mm
Stroke: 120 mm

Movement

Y-AXIS Rapid traverse: 25 mm/s

Additional Information

Distance between side frames / free stand clearance: 932 mm
Usable installation height: 295 mm
Projection / throat depth: 150 mm
Operating surface / user interface: Touchpoint TruBend
Follow-up time (max): 90 ms
Follow-up distance (max): 15 mm
Follow-up distance with brake (max): 8 mm
Safety distance (min): 180 mm
Mains: 400 V / 50 Hz
Connected load: 6.0 kVA
Control voltage: 24 V DC
Rated current: 24.0 A

Additional equipment

Optional tools available (on request)
