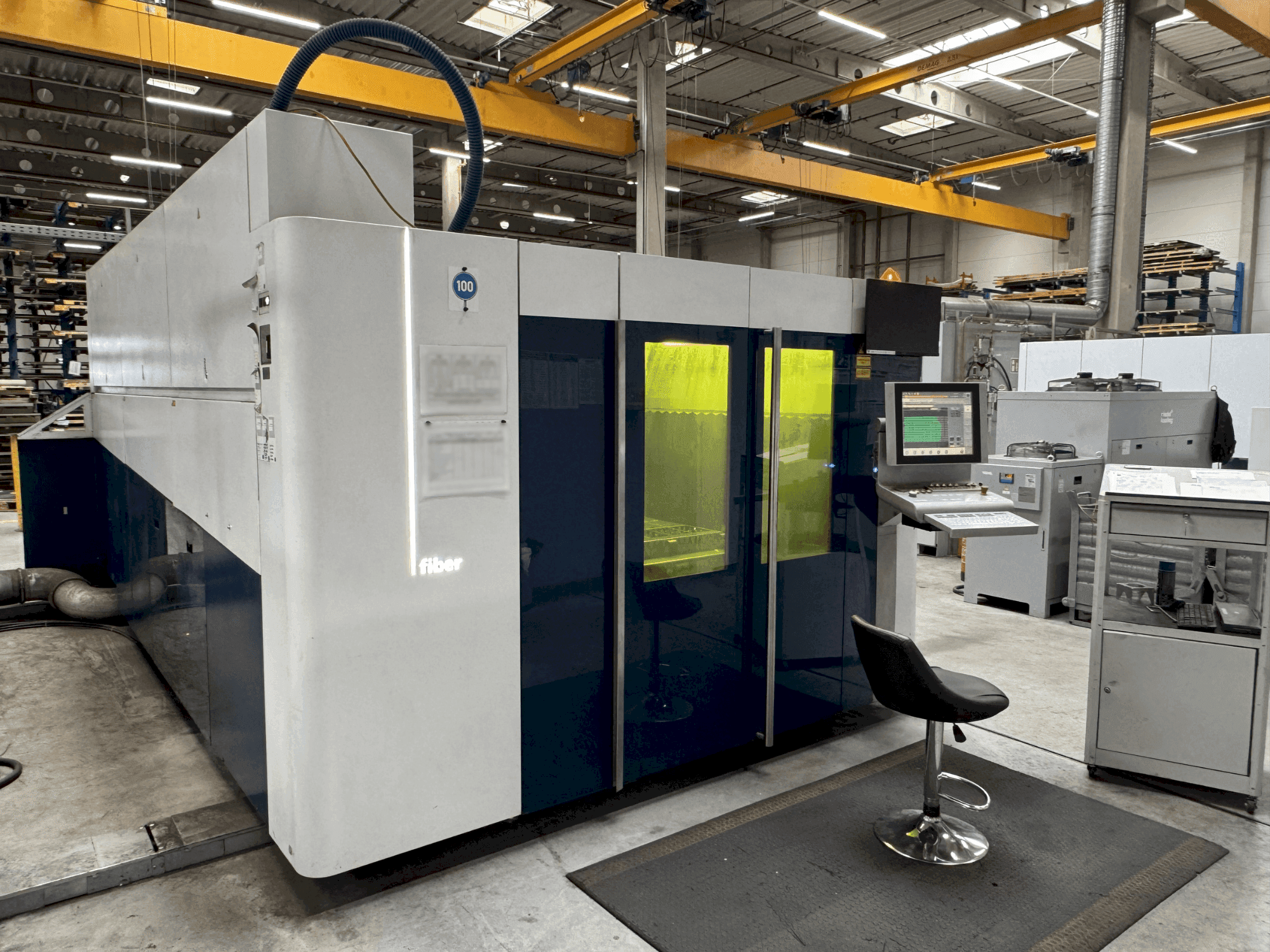

➤ Used TRUMPF TruLaser 5030 Fiber (L56) - 2015 - Laser cutter

Show in original language

The TRUMPF TruLaser 5030 (L56) fiber 5kW, manufactured in 2015, is a precise and efficient laser cutter. Its 3-axis system handles work dimensions of 3000 x 1500 x 115 mm. Powered by a 5000 Watt TruDisk 5000 fiber laser, it achieves high-speed cuts up to 265 m/min. The machine, measures 8800 x 4800 x 2400 mm. It is controlled by a Siemens Sinumerik 840 D for accuracy and ease of use. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2015
MODEL: TruLaser 5030 Fiber
application type: Cutting
Location: Poland
machine type: Fiber Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 5030 Fiber

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840 D

Dimensions

Machine Depth: 8800 mm
Machine Height: 2400 mm
Machine Weight: 12000 kg

Movement

Number of Axes: 3
X-axis Travel: 3000 mm
Y-axis Travel: 1500 mm
Z-axis Travel: 115 mm

Technical Specification

Laser Power: 5 kW

Additional Information

Machine Benefits

Qualitative Machine Benefits

High precision and clean cuts due to the powerful trudisk 5000 fiber laser with a rated output of 5000 watt.
Large working area (3000 x 1500 x 115 mm) allows for processing of large sheets, enhancing productivity.

Technical Machine Benefits

High-speed operation with a maximum speed of 265 m/min ensures rapid processing times.
Advanced siemens sinumerik 840 d control system provides precise and efficient control over cutting operations.
Working hours: 55377 h
Laser on: 40239 h
Maximum material thickness: mild steel: 25 mm/ stainless steel: 20 / 25 mm with brightline fiber/ aluminum: 20 / 25 mm with brightline fiber

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
