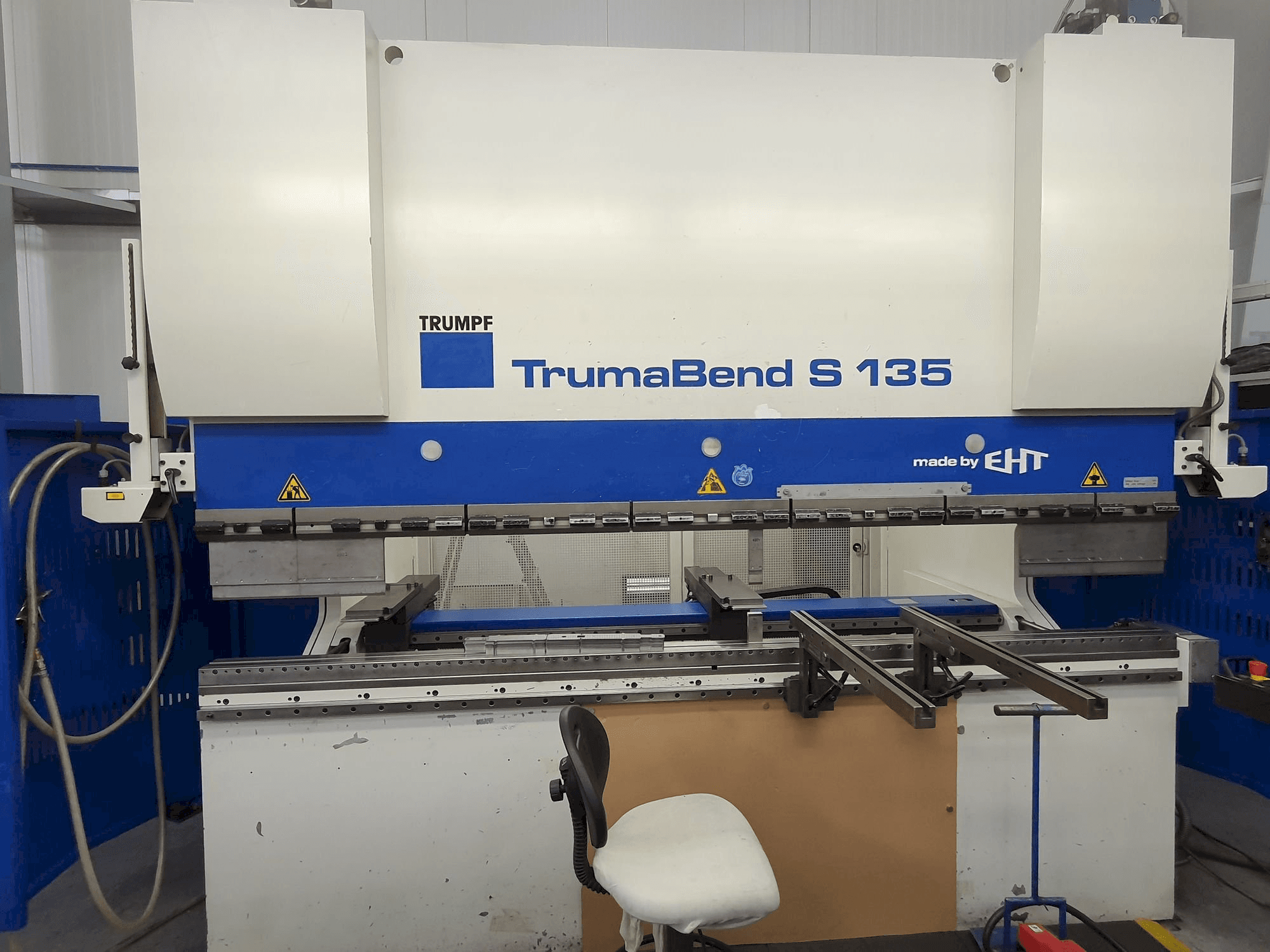

Front view of Trumpf TrumaBend S135 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TrumaBend S135

Photo Gallery

TRUMPF - TrumaBend S135PL-BEN-TRU-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

This Trumpf TrumaBend S135 Bending Machine was manufactured in Germany in the year 2005. It has a record of approximately 75000 power on hours. This 7 axis machine is equipped with a Delem DA-69DW control unit. It can work with a pressing force up to 135 kN and a bending length 3050 mm. This machine includes in the offer the upper tools. It is in very good working condition, still at production, with its full documentation available and ready for tests.

Overview

brand: TRUMPF
year: 2005
MODEL: TrumaBend S135
production hours: 75000
application type: Bending
Location: Poland
machine type: Press Brake
control unit brand: DELEM

Technical Information - TRUMPF TrumaBend S135

Control Unit

Control Brand: DELEM
Control Model: DA-69DW

Dimensions

Machine Depth: 2200 mm
Machine Height: 3300 mm
Machine Weight: 11260 kg

Movement

Number of Axes: 7

Technical Specification

Bending Length: 3050 mm
Max. Stroke: 600 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine in very good working condition.
Some tooling included in the offer (upper tools only).
It is still at the production.
Full documentation available
Ready for tests.

Technical Machine Benefits

Cnc machine (y1, y2, x1 x2, r z1, z2 + v-crowning)
Cnc axis: y1, y2, x1, x2, r, z1, z2, v
Bending force: 135 kn
Back gauge fingers 2 pcs.
Distance between columns: 2550 mm
Distance table-slider: min. 320, max. 720 mm
Automatic clamping system for upper tools
Manual clamping system for dies
Upper tooling style: eht
Dies tooling style: trumpf
