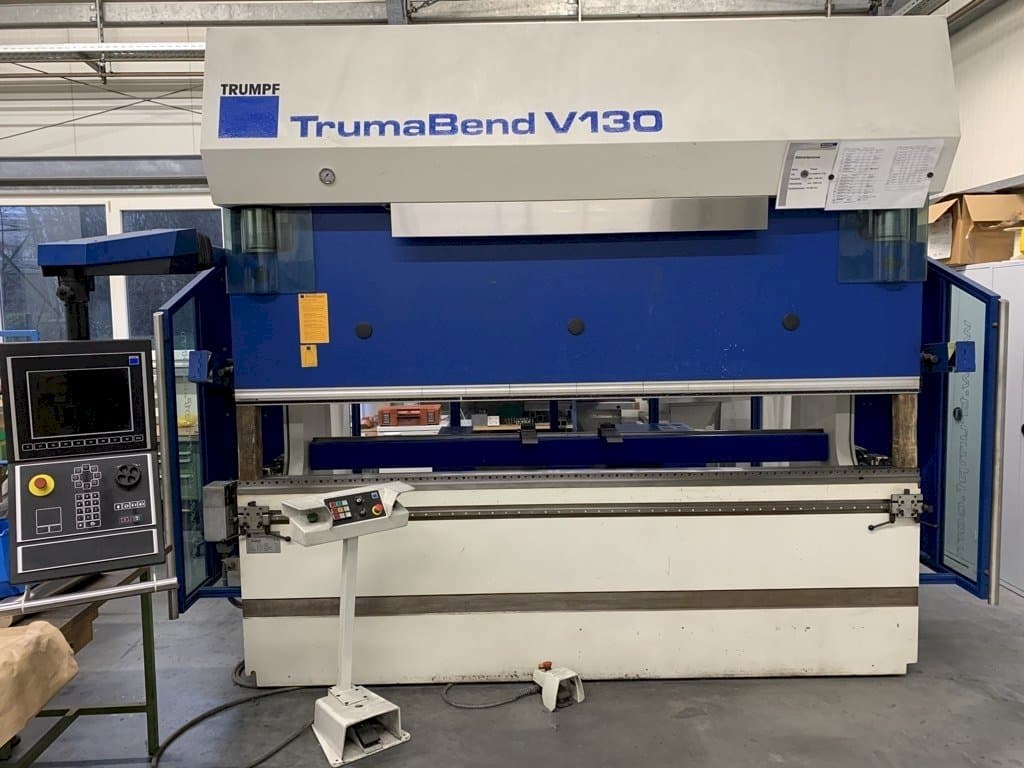

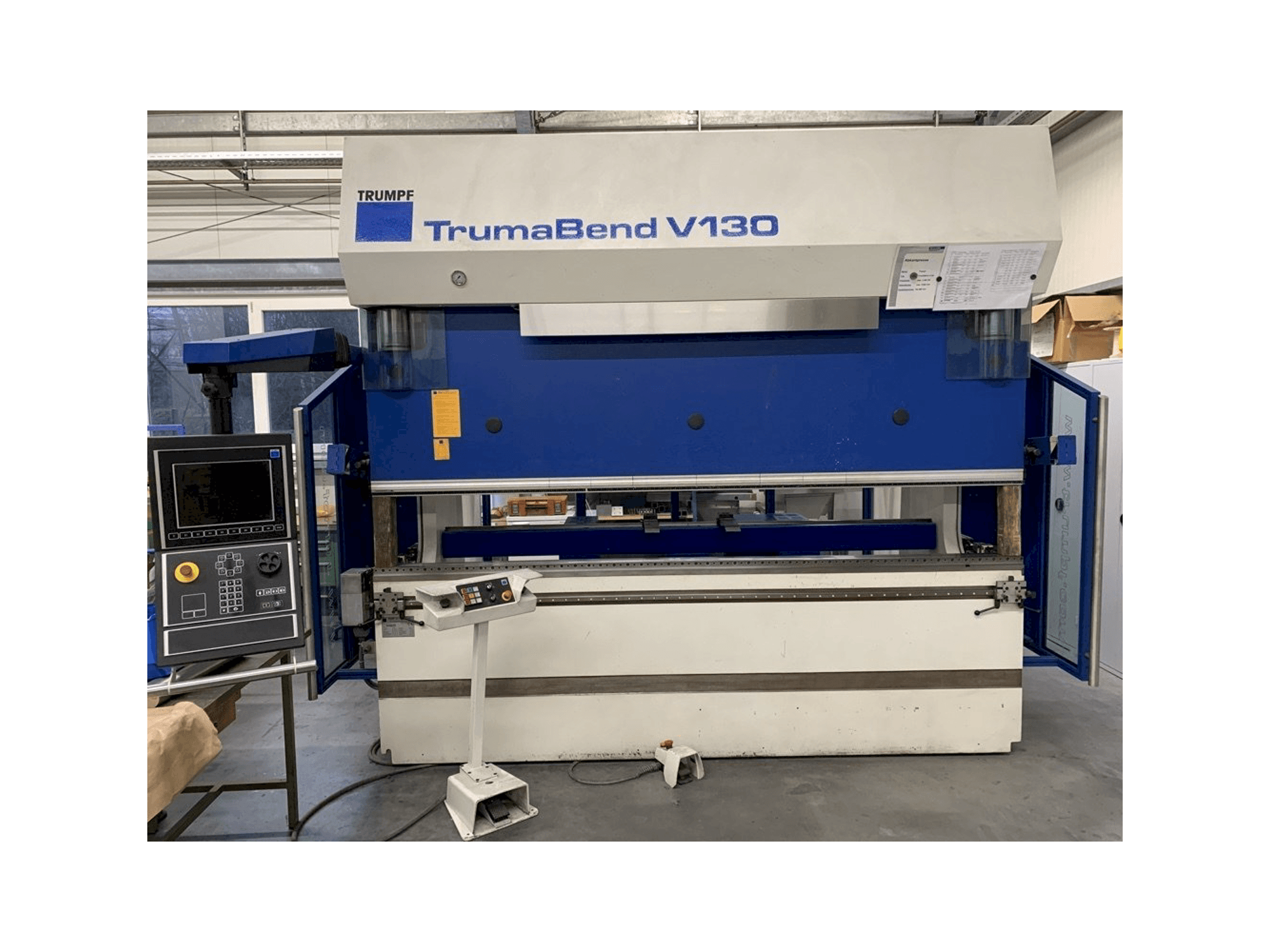

Front view of Trumpf TrumaBend V130X machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TrumaBend V130X

Photo Gallery

TRUMPF - TrumaBend V130XDE-BEN-TRU-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf TrumaBend V130X

Show in original language

This Trumpf TrumaBend V130X Bending Machine was manufactured in the year 2004 in Austria. It has a record of 11927 production hours. This machine can operate with a nominal pressing force up to 1300 kN and a bending length 3060 mm.

Overview

brand: TRUMPF
year: 2004
MODEL: TrumaBend V130X
production hours: 11927
application type: Bending
Location: Germany
machine type: Press Brake
availability: Sold

Technical Information - TRUMPF TrumaBend V130X

General Data

Measurements width: 2060 mm
Measurements depth: 3640 mm
Measurements height: 2885 mm
Machine weight: 12950 Kg

Main drive

Pressing force: 1300 kN
Bending length: 3060 mm
Throat: 410 mm
Stroke: max. 365 mm

Media

Power consumption: 27.0 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4 axis backgauge
- - Cnc control: delem
- - Max. Operating pressure 340 bar
- - Slow-down delay 95 ms
- - Safety distance 190 mm
- - Y-operating speed: 1-10 mm/s
- - Y-rapid speed: 200 mm/s
- - Y-return speed: 135 mm/s
- - Beam entry: 535 mm
- - Distance between uprights 2690 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
