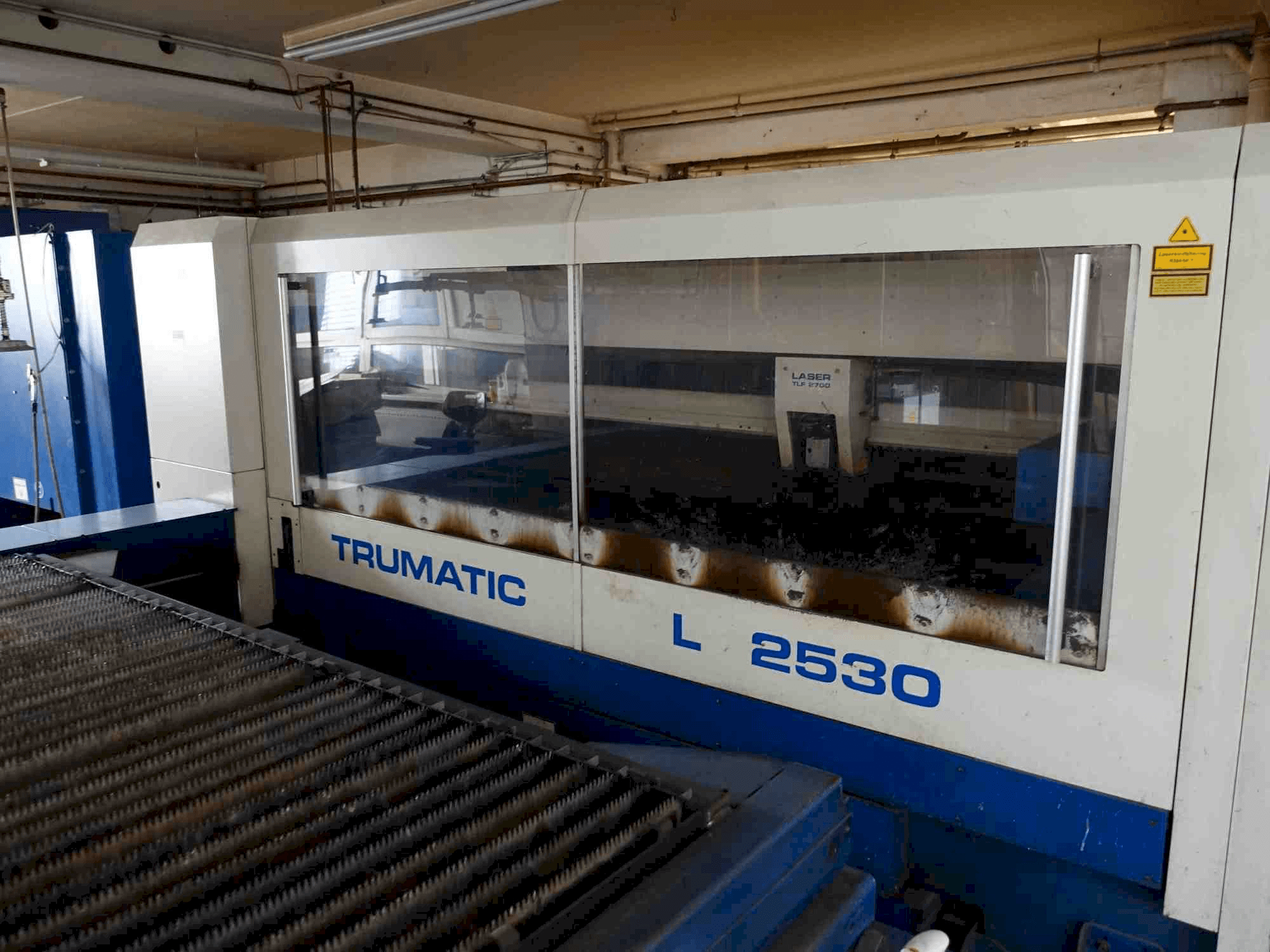

This Trumpf Trumatic L2530 Laser Cutting machine was manufactured in the year 2002. It is equipped with a SIEMENS Sinumerik 840D control unit. The machine has a laser power of 2,0 kW.
Overview
- brand: TRUMPF
- year: 2002
- MODEL: Trumatic L2530
- application type: Laser Cutting
- Location: Germany
- machine type: Laser Cutting Machines (CO2)
- availability: Sold
- control unit brand: SIEMENS
- GINDUMAC ID: DE-LAS-TRU-2002-00001
Technical Information
General Data
- Measurements width: 5400 mm
- Measurements depth: 7800 mm
- Measurements height: 2300 mm
- Machine weight: 7900 kg
Control Unit
- Brand: SIEMENS
- Model: Sinumerik 840 D
Main drive
- Laserpower: 2,0 kW
Movement
- X-AXIS Movement: 2500 mm
- Y-AXIS Movement: 1250 mm
- Z-AXIS Movement: 115 mm
Workpiece
- Workpiece weight: 500 kg
Additional Information
- Qualitative Machine Benefits:
- - Diode should be replaced. It currently only cuts up to 1. 5 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
