- Victor V Centre-80 Vertical Machining Center

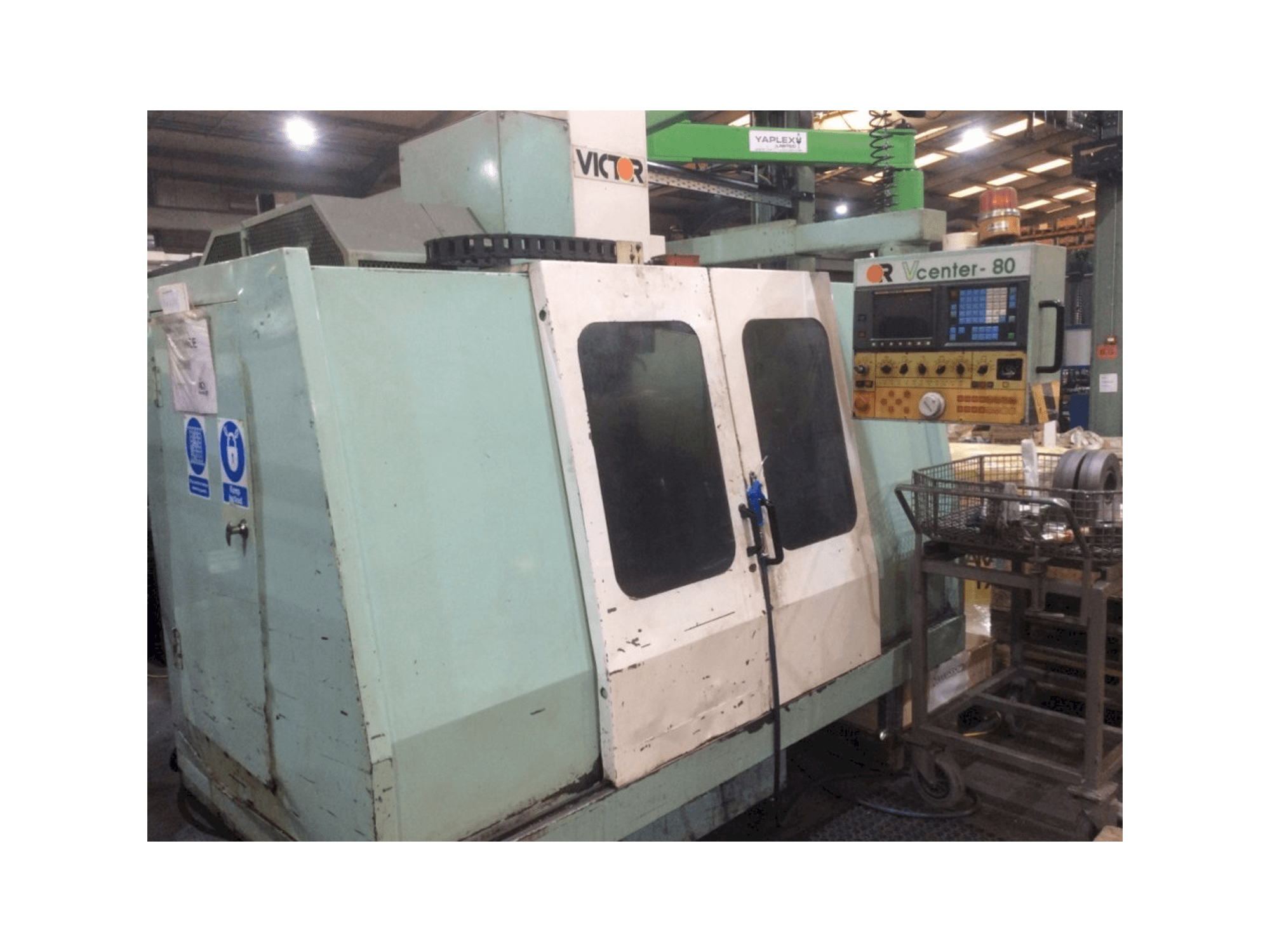

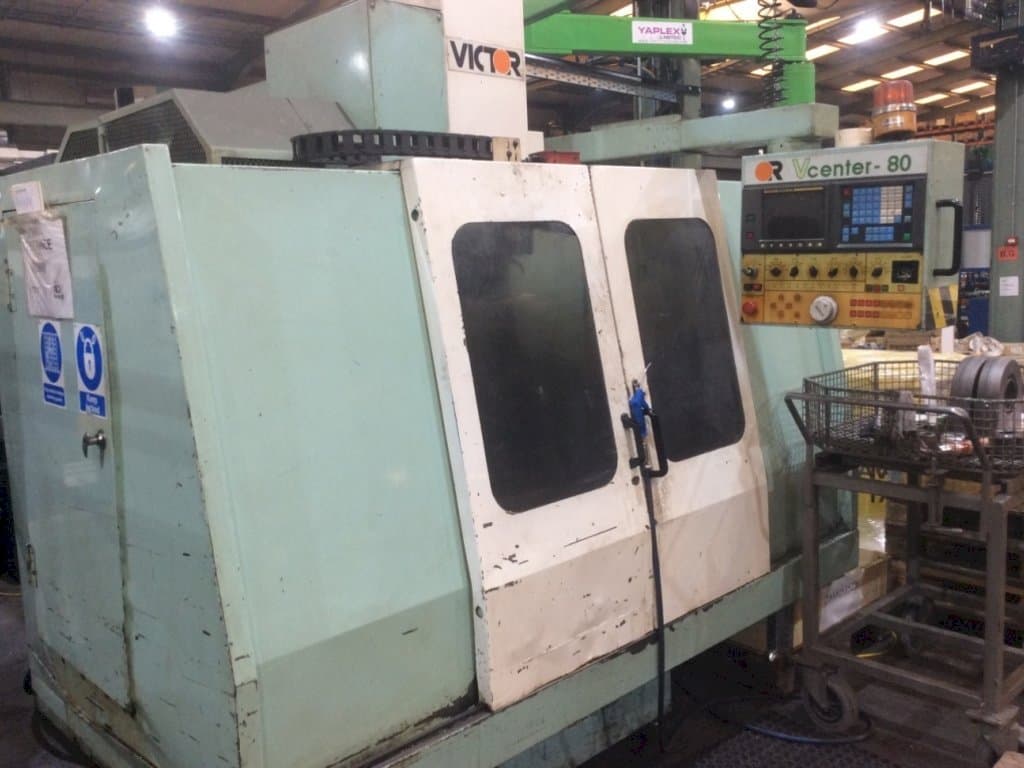

This Victor V Centre-80 Vertical Machining Center was manufactured in Taiwan in 1990. Equipped with a FANUC Series O-M Control unit, this machine operates with a spindle speed up to 6000 rpm.
Overview
- brand: Victor
- year: 1990
- MODEL: V Centre-80
- application type: Milling
- Location: Ireland
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: FANUC
- GINDUMAC ID: IE-MIL-VIC-1990-00001
Technical Information
General Data
- Measurements width: 2500 mm
- Measurements depth: 2825 mm
- Measurements height: 2740 mm
- Machine weight: 6000 kg
Control Unit
- Brand: FANUC
- Model: Series O-M
- CNC main language: English
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 410 mm
- Z-AXIS Movement: 510 mm
Table
- Outer length: 890 mm
- Outer width: 400 mm
- Number of tslots: 3
Tools
- Slots in storage: 24
- Max weight: 6 kg
- Max tool diameter: 125 mm
- Max tool length: 300 mm
- Type of tool holder: BT40
Additional Information
- Qualitative Machine Benefits:
- - Well maintained machine
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
