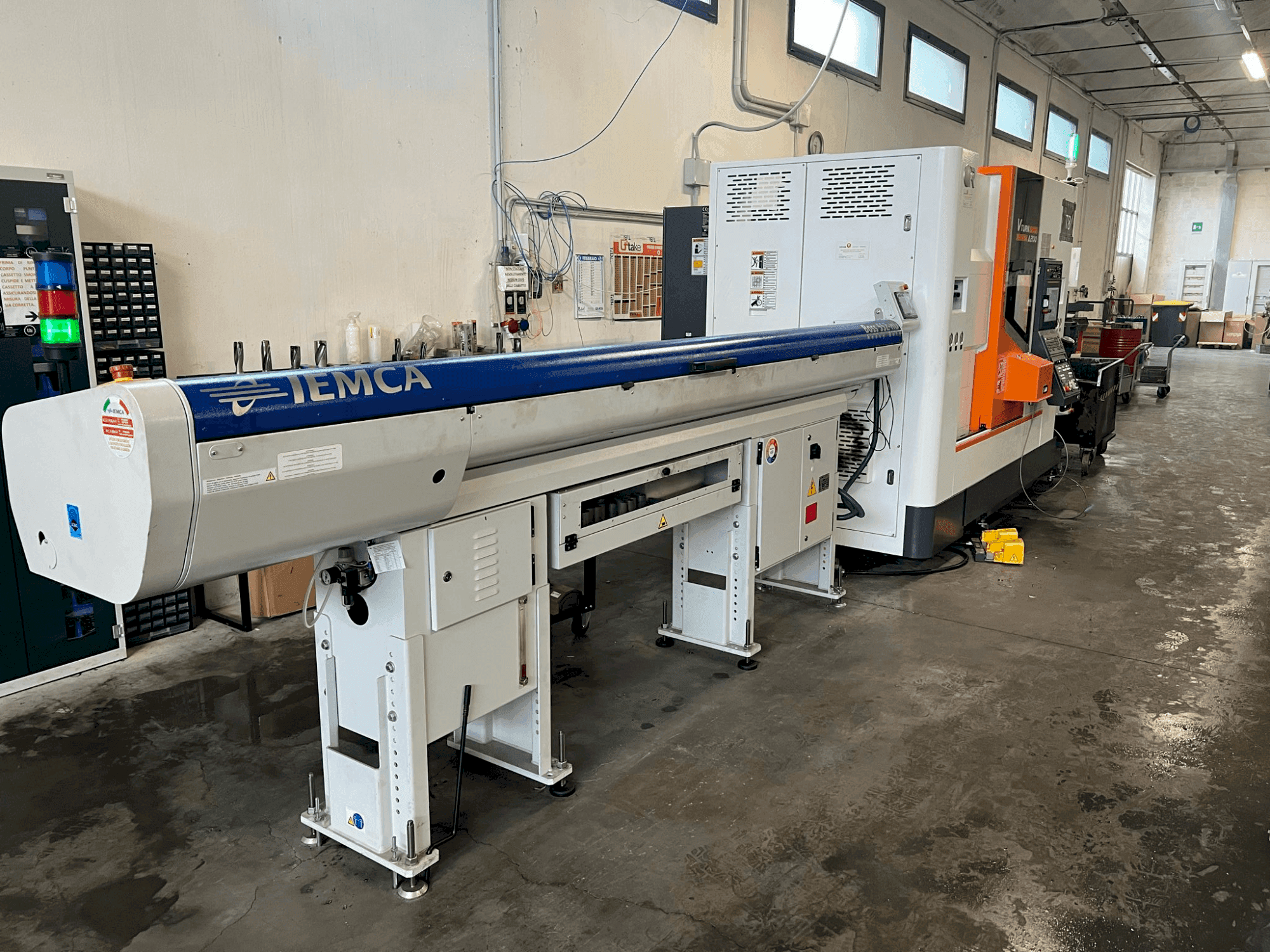

Front view of Victor V-turn A200Y  machine

Victor V-turn A200Y

Victor - V-turn A200Y

2022

135,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This VICTOR V-turn A200Y Lathe was manufactured in the year 2022 in Taiwan. It is equipped with FANUC Series 0i-TF Plus control unit. The machine has a spindle (Spindle nose: ASA A2-6) and a counter spindle (Spindle nose: ASA A2-5). The machine disposes of a turret with 12 positions. It comes with IEMCA bar feeder included in the scope of delivery.

Overview

  • brand: Victor
  • year: 2022
  • MODEL: V-turn A200Y
  • application type: Turning
  • Location: Italy
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: IT-TUR-VIC-2022-00001

Technical Information

General Data

  • Measurements width: 2430 mm
  • Measurements depth: 3882 mm
  • Measurements height: 2286 mm
  • Machine weight: 7000 kg

Control Unit

  • Brand: FANUC
  • Model: Series 0i-TF Plus

Main drive

  • Number of spindles: 2
  • Spindle motor power: 11-15kW
  • Number of axis: 4

Movement

  • X-AXIS Movement: 165+50 mm
  • Y-AXIS Movement: +45 mm
  • Z-AXIS Movement: 6500 mm
  • B-AXIS Movement: 550 mm

Turret

  • Number of turrets: 1
  • Number of tool slots: 12

    Additional Equipment

    • - IEMCA bar feeder included

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Distance between tips: 604 mm
        • - Maximum turning diameter on dear: 720 num
        • - Maximum turning diameter: 390 mm
        • - Spindle bar passage: 52 mm // maximum speed: 4200 rpm // spindle nose: asa a2-6
        • - Counter spindle bar passage: 30 mm // maximum speed: 7000 rpm // spindle nose: asa a2-5
        • - Number of turret positions: 12 // maximum speed: 6000rpm // attic turret: bmt-5
        • - Rapid advances x -z: 24m/min
        • - Rapid forwarding b: 15m/min
        • - Counter-spindle motor: 7. 5-11 kw // powered tool motor: 5. 5 kw
        • - X - z axis servomotor: 4-3kw

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
