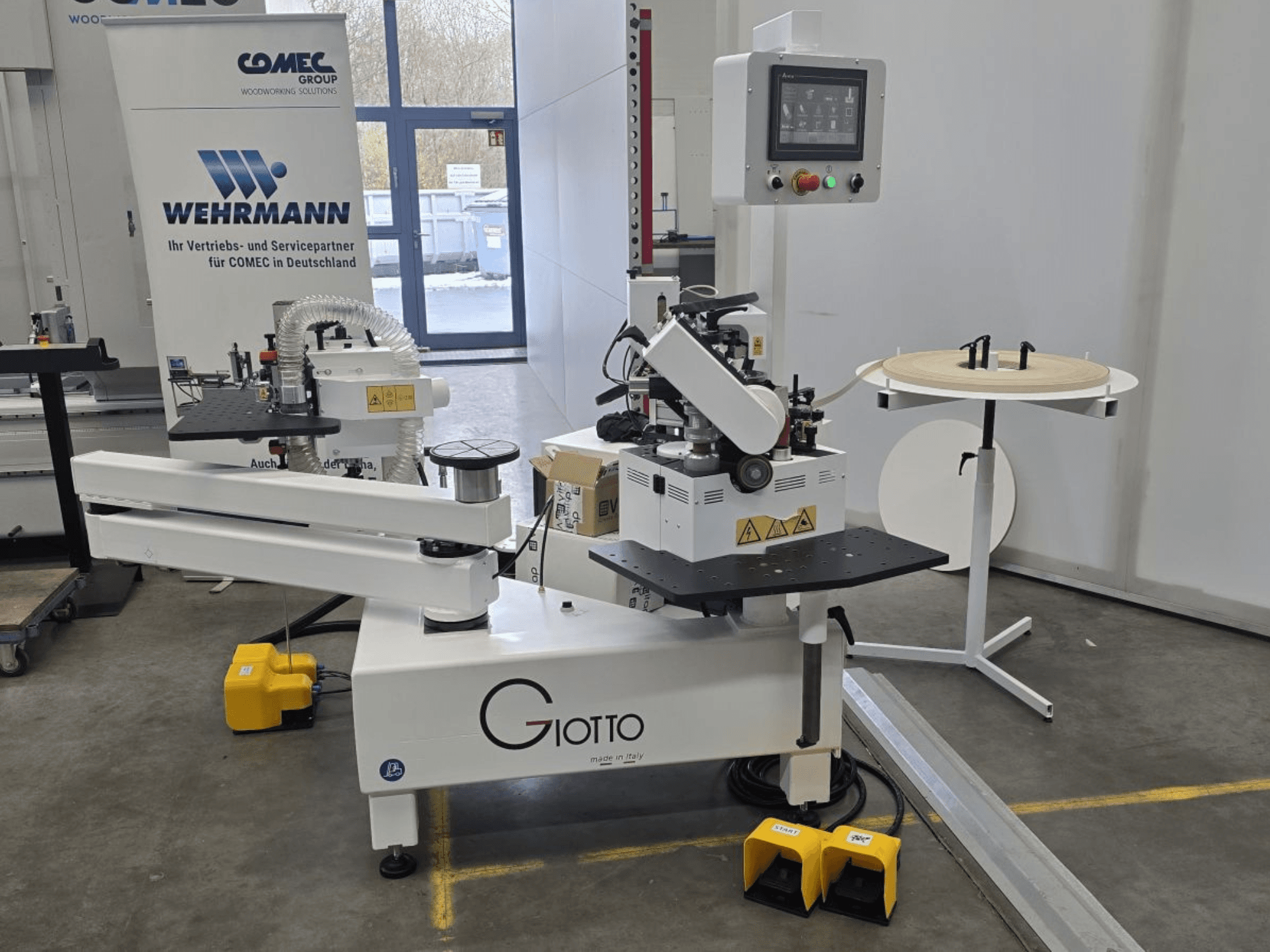

This VITAP GIOTTO edgebander manufactured in 2025 is designed for edge banding on straight, shaped, concave, and convex panels. It features a semi-automatic contour edge bander with a Teflon-coated glue pot, adjustable glue application, and an automatic roll cutting device. Ideal for handling large workpieces with its reinforced, swiveling arm and integrated vacuum. Consider the opportunity to buy this VITAP GIOTTO edgebander. Contact us for more information about this machine.
Overview
- brand: VITAP
- year: 2025
- MODEL: GIOTTO
- application type: Edge Banding
- Location: Germany
- machine type: Edgebander
Additional Information
Circle: min-Ø 300mm, max-Ø 2700mm
Panels with inner radii min. 250mm
Panels with outer radii min. 30-80mm (depending on edge thickness)
Panel thickness: 10-60mm
Band thickness: 1-3mm
Flush milling station with 2 motors, each 0.55 KW, 12000 rpm
Tools with R=2
Teflon-coated glue pot with 1 kg capacity, quick-change device, and integrated glue application roller
2 guide rollers for contoured workpieces
1 swiveling feed/pressure
Adjustable glue application quantity and glue temperature
Automatic roll cutting device for coil materials up to max. 3 x 45 mm
Three kinds of work: by length input, by length input with laser recognition, by foot pedal
Laser measurement for easy length recognition of closed parts without additional length measurement
Speed reduction by laser or foot pedal for radii and workpiece
Elevatable support table for small parts for manual glueing and flush milling
Reinforced, swiveling arm for workpiece support with integrated vacuum
Precise joint gluing with integrated flush milling saves time
1 person can work in pendulum use with CNC center efficiently, saving an expensive gluing unit
Vacuum arm makes handling easier
Glue feeder with sensor + tefloned gluing station for 1 kg PUR glue
Edging and milling kit for internal radii of 15mm (R=2)
Wider feeding roller for better adherence
Additional lower roller
Rectangular work plan for executing large panels
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
