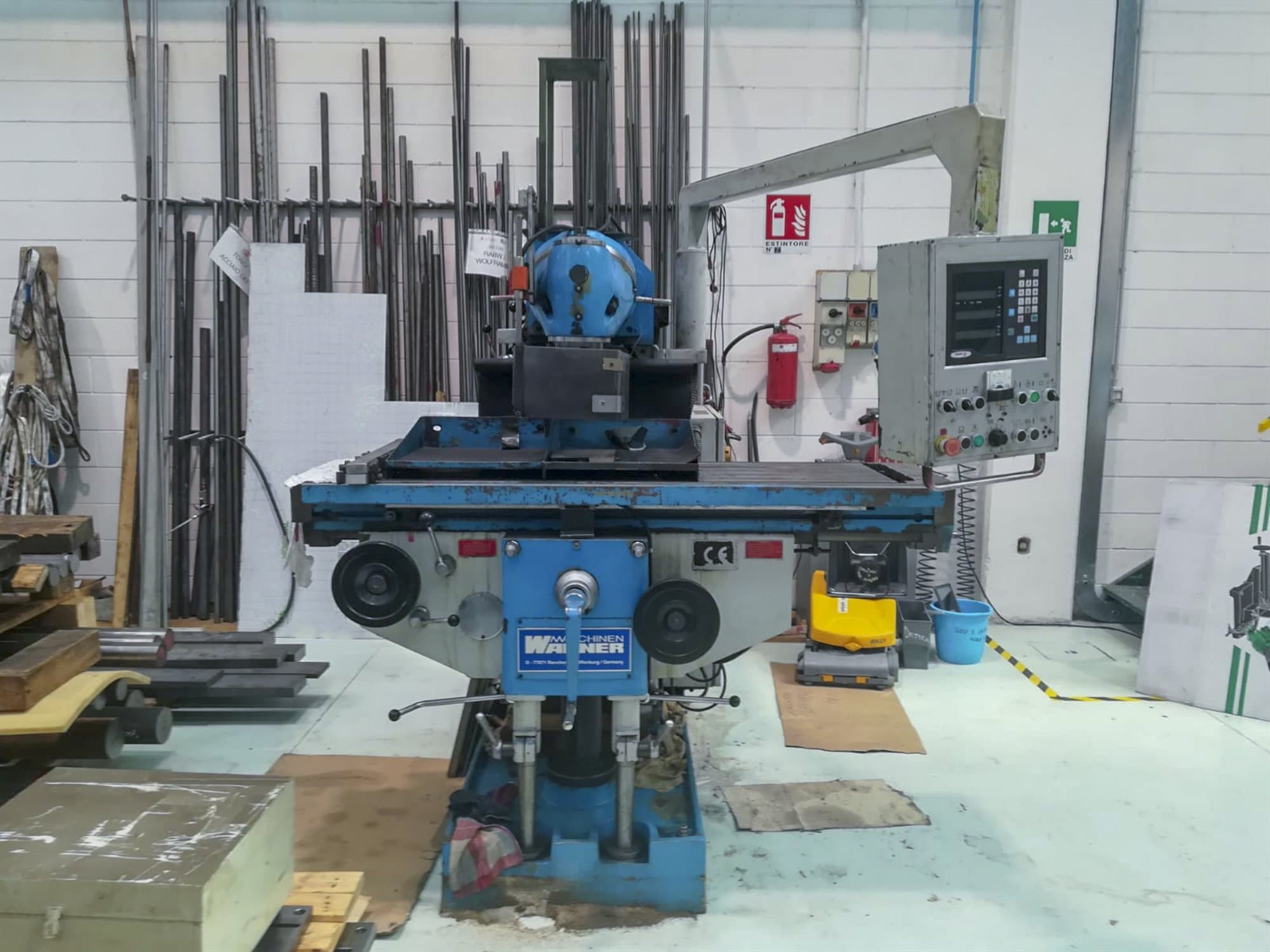

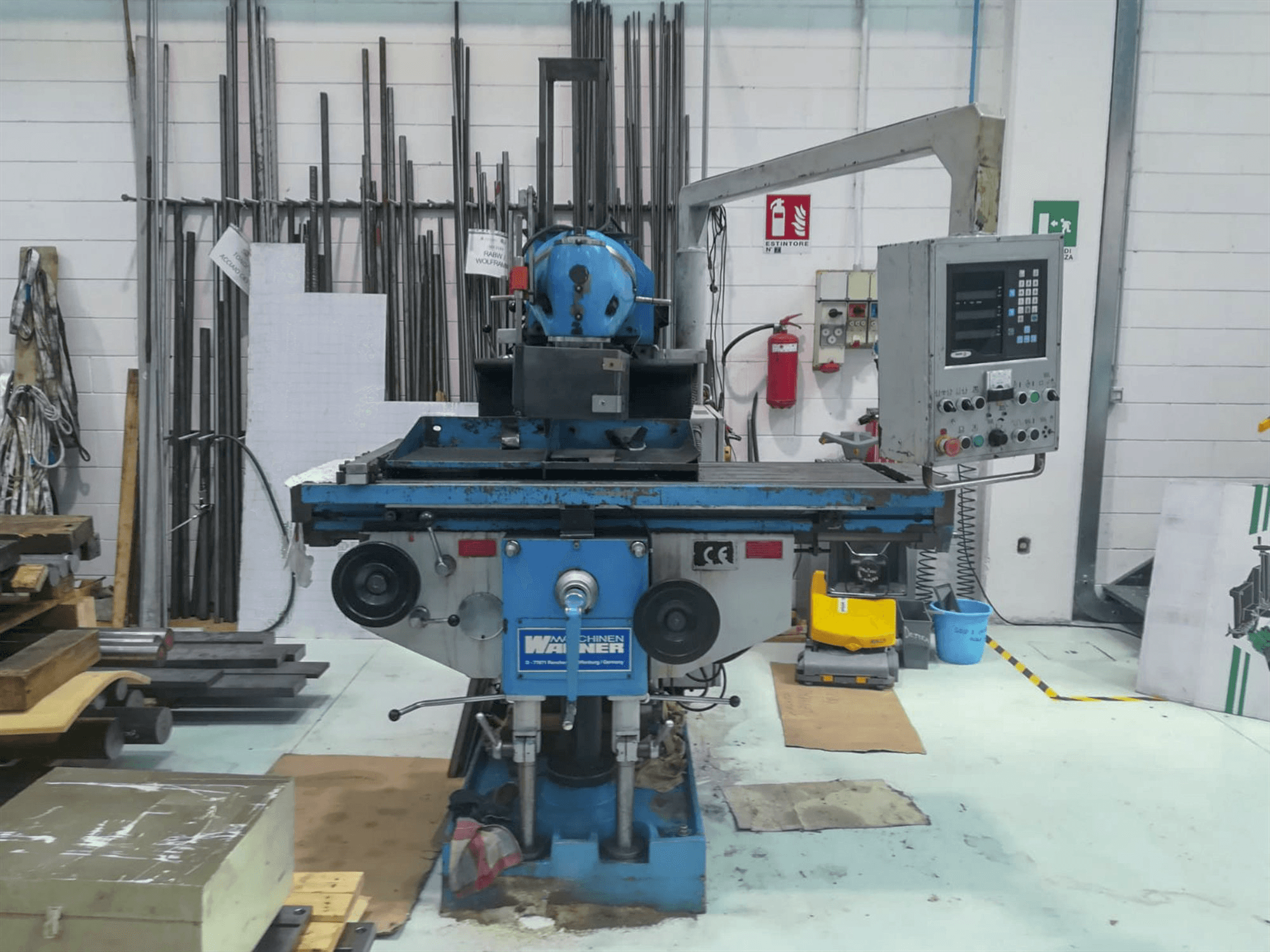

This WAGNER FCQ 1635 Milling Machine from 2006 was manufactured in Taiwan and has been operative for approximately 7200 production hours. Equipped with a Fagor position indicator, this machine comes with an additional crankcase and side protections.
Overview
- brand: WAGNER
- year: 2006
- MODEL: FCQ 1635
- production hours: 7200
- application type: Milling
- Location: Italy
- machine type: Milling Machine
- availability: Sold
- control unit brand: Fagor
- GINDUMAC ID: IT-MIL-WAG-2006-00001
Technical Information
General Data
- Measurements width: 2620 mm
- Measurements depth: 2125 mm
- Measurements height: 1965 mm
- Machine weight: 3200 kg
Control Unit
- Brand: Fagor
Main drive
- Number of spindles: 1
- Spindle speed range: 30-2050 1/min
Movement
- X-AXIS Movement: 1000 mm
- Y-AXIS Movement: 650 mm
- Z-AXIS Movement: 470 mm
Table
- Outer length: 460 mm
- Outer width: 1635 mm
Additional Equipment
- - Crankcase
- - Side Protections
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
