WALDRICH COBURG 14-10FP150NC

Photo Gallery

SOLD

WALDRICH COBURG - 14-10FP150NC

2017

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

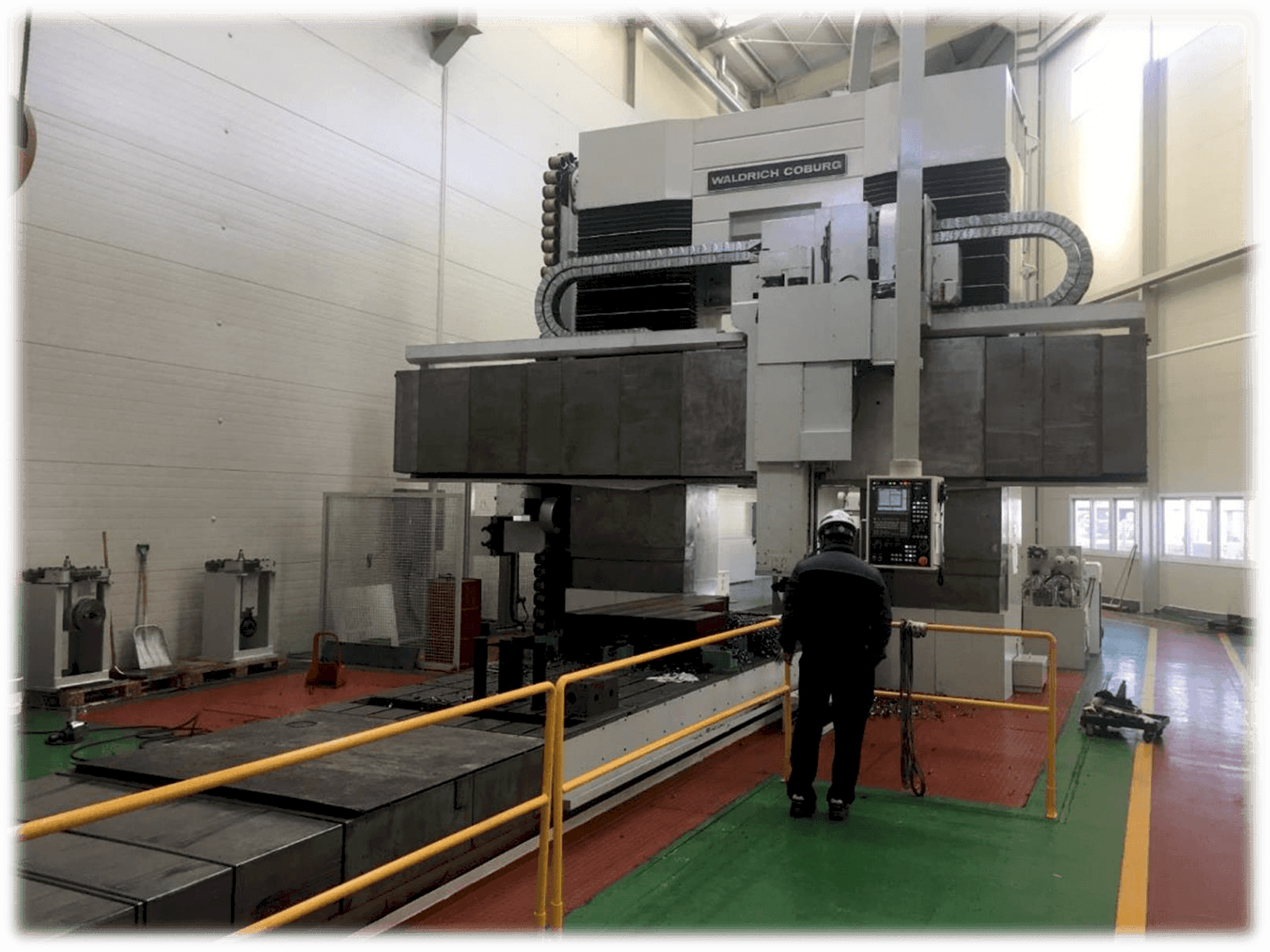

WALDRICH COBURG 14-10FP150NC Piano Milling machine

Show in original language

This WALDRICH COBURG 14-10FP150NC Piano Milling machine was manufactured in the year 2017. It is equipped with a Fanuc 31i control unit. The machine has a spindle speed of 5-2000 rpm.

Overview

brand: WALDRICH COBURG
year: 2017
MODEL: 14-10FP150NC
application type: Milling
Location: South Korea
machine type: Milling Machine
availability: Sold
control unit brand: Fanuc
GINDUMAC ID: KR-MIL-WAL-2017-00001

Technical Information

Control Unit

Brand: Fanuc
Model: 31i

Main drive

Spindle speed range: 5-2000 1/MIN
Tool taper: ISO 50

Movement

X-AXIS Movement: 6700 mm
Y-AXIS Movement: 4275 mm
Z-AXIS Movement: 1000 mm
W-Axis Movement: 1250 mm

Table

Outer length: 6000 mm
Outer width: 1600 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between columns: 2000 mm
- - Distance between spindle nose and table surface: 1750 mm
- - Ram section: 500x500 mm
- - Spindle torque: 3500 nm
- - Atc: 80
- - Angle attachment: 650l x 152d (mm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
