Weiler - E50x2000DE-TUR-WEI-2008-00001

• Control system: Weiler D3 with Siemens Sinumerik 810D

• Center distance: 2000 mm

• Center height: 280 mm

• Swing over bed: 570 mm

• Swing over cross slide: 340 mm

• Cross slide travel: 340 mm

• Bed slide guide length: 560 mm

• Spindle head: DIN 55025, size 8

• Spindle bore: 83 mm

• Main spindle internal taper: Metric 90

• Main drive power: 20 kW (60% duty cycle); 17 kW (100% duty cycle)

• Maximum spindle torque: 1600 Nm

• Speed range:

  • Gear stage 1: 1–625 rpm

  • Gear stage 2: 4–2500 rpm

• Tailstock quill diameter: 80 mm

• Tailstock quill stroke: 200 mm

• Tailstock quill taper: Morse taper 5

• Tool holder system: Multifix size C or Parat size 3

• Availability: machine available soon

• Overhaul: will be fully overhauled in 2026

  • Hardening and grinding of all bed guides; grinding of tailstock guides

  • Overhaul of complete bed and cross slide assembly (grinding/scraping of all guideways)

  • Renewal of bed slide sliding lining

  • Renewal or relining of keyways and lower guides

  • Installation of a tool system on a console (Multifix C or Parat Gr.3)

  • Overhaul of complete spindle housing assembly

  • Regrind main spindle (internal/external taper and face)

  • Renewal of main spindle bearings

  • Renewal of X-axis ball screw drive incl. bearings

  • Renewal of Z-axis ball screw drive incl. bearings

  • Overhaul of tailstock quill and bore; replacement of spindle and nut

  • Renewal of all guideway wipers

  • Replacement of all drive belts

  • Cleaning and testing of main spindle motor

  • Overhaul of existing safety devices

  • Replacement of defective rotary, rocker, and limit switches

  • Replacement of spindle and handwheel encoders

  • Cleaning and testing of the central lubrication unit

  • Replacement of movable cables and coolant hoses in the work area/to the monitor

  • Replacement of the membrane keypad (monitor)

  • Renewal of the energy chains

  • Painting in standard colors (standard texture)

  • DGUV and high-voltage testing with test report

  • Data backup of machine parameters/software

  • Geometric acceptance testing according to DIN 8605

Additional equipment

• Chip conveyor: used unit included

• Optional accessory: additional chip conveyor available

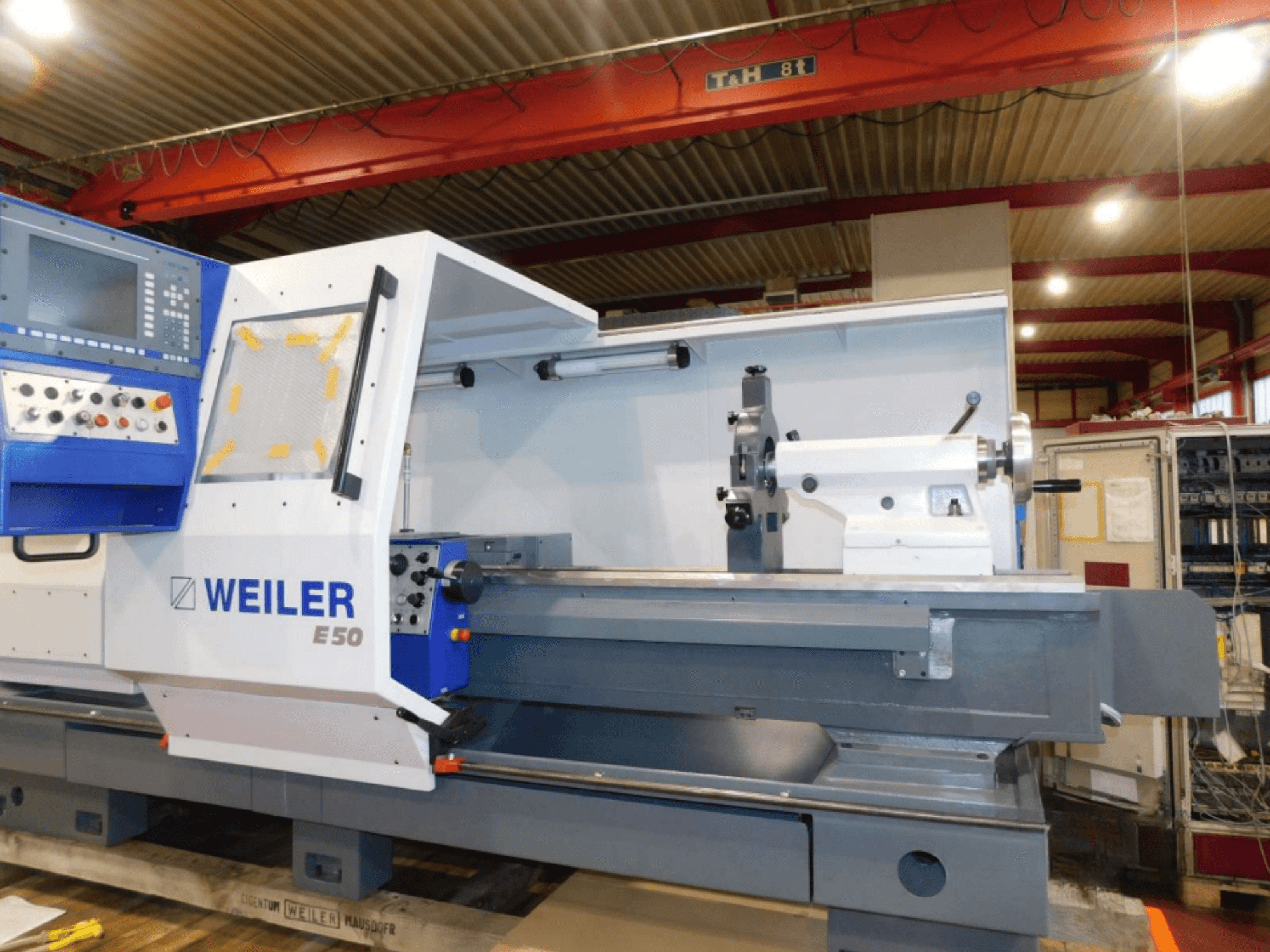

The machine will be overhauled in July the pictures are only refreneces of how it would look like.
