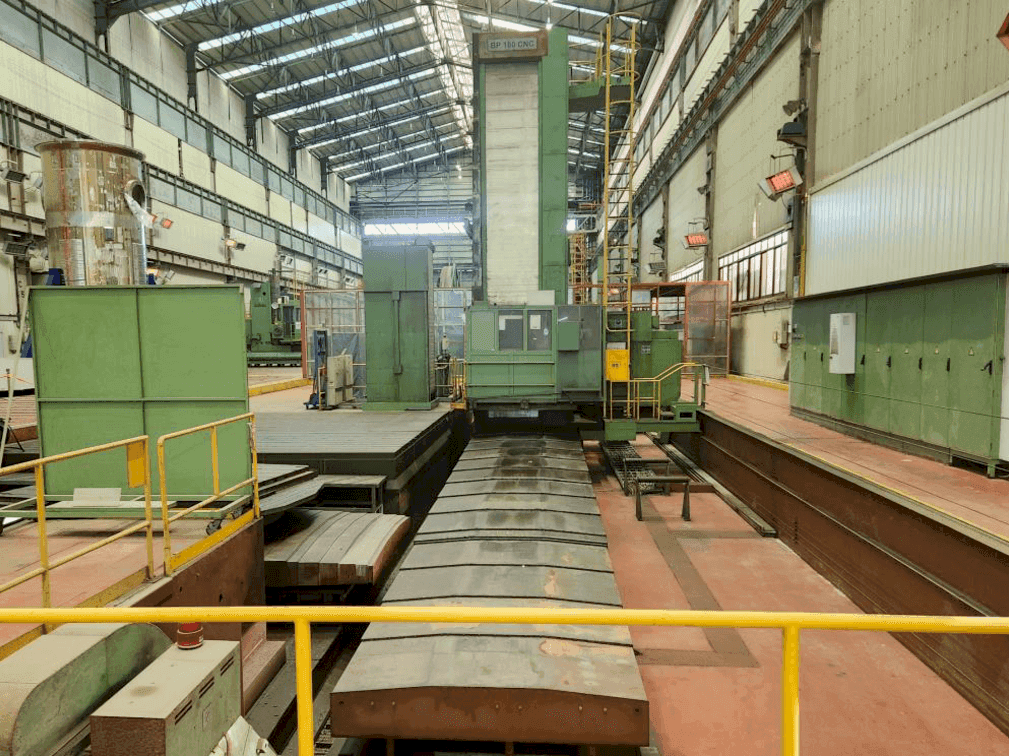

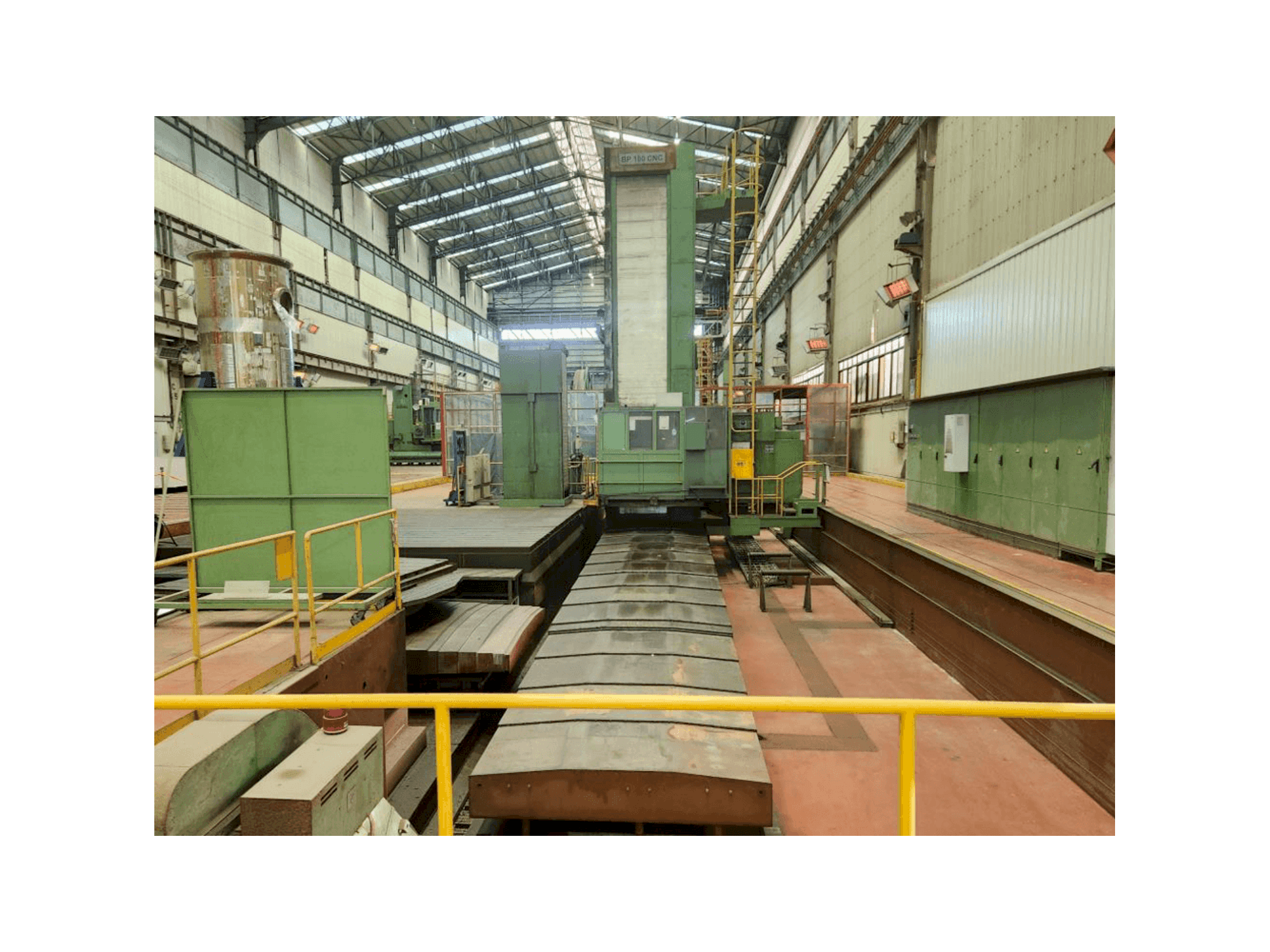

WMW BP 160 CNC

Photo Gallery

WMW - BP 160 CNCKR-BOR-WMW-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
WMW BP 160 CNC Horizontal Floor type boring and milling machine

Show in original language

This WMW BP 160 CNC Horizontal Floor type boring and milling machine was made in the year 2008. It is equipped with a Siemens 840D control unit. The machine has a spindle speed of 4 - 2500 rpm and a boring bar diameter of Ø 160.

Overview

brand: WMW
year: 2008
MODEL: BP 160 CNC
application type: Other Machine Tools
Location: South Korea
machine type: Boring Machine (Metal)
control unit brand: SIEMENS

Technical Information - WMW BP 160 CNC

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 4 - 2500 1/MIN
Spindle motor power: 100 kw
Tool taper: ISO 50

Movement

X-AXIS Movement: 11000 mm
Y-AXIS Movement: 5000 mm
Z-AXIS Movement: 1200 mm
V-Axis Movement: 2000 mm
W-Axis Movement: 1000 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Max. Spindle torque 12,000nm
Boring bar diameter Ø 160
Ram section 500 x 620mm
Feed rate of x, y-axis 15,000mm/min
Feed rate of z, w-axis 6,000mm/min
Rotary table size 2,500 x 2,500mm
Rotary table loading capacity 40tons
Floor plate size 6,000 x 6,000mm
Attachment u-tronic / 2-axis head / angle head / ram cover

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
