- ➤ Used YCM FX380A Machining Center For sale | gindumac.com

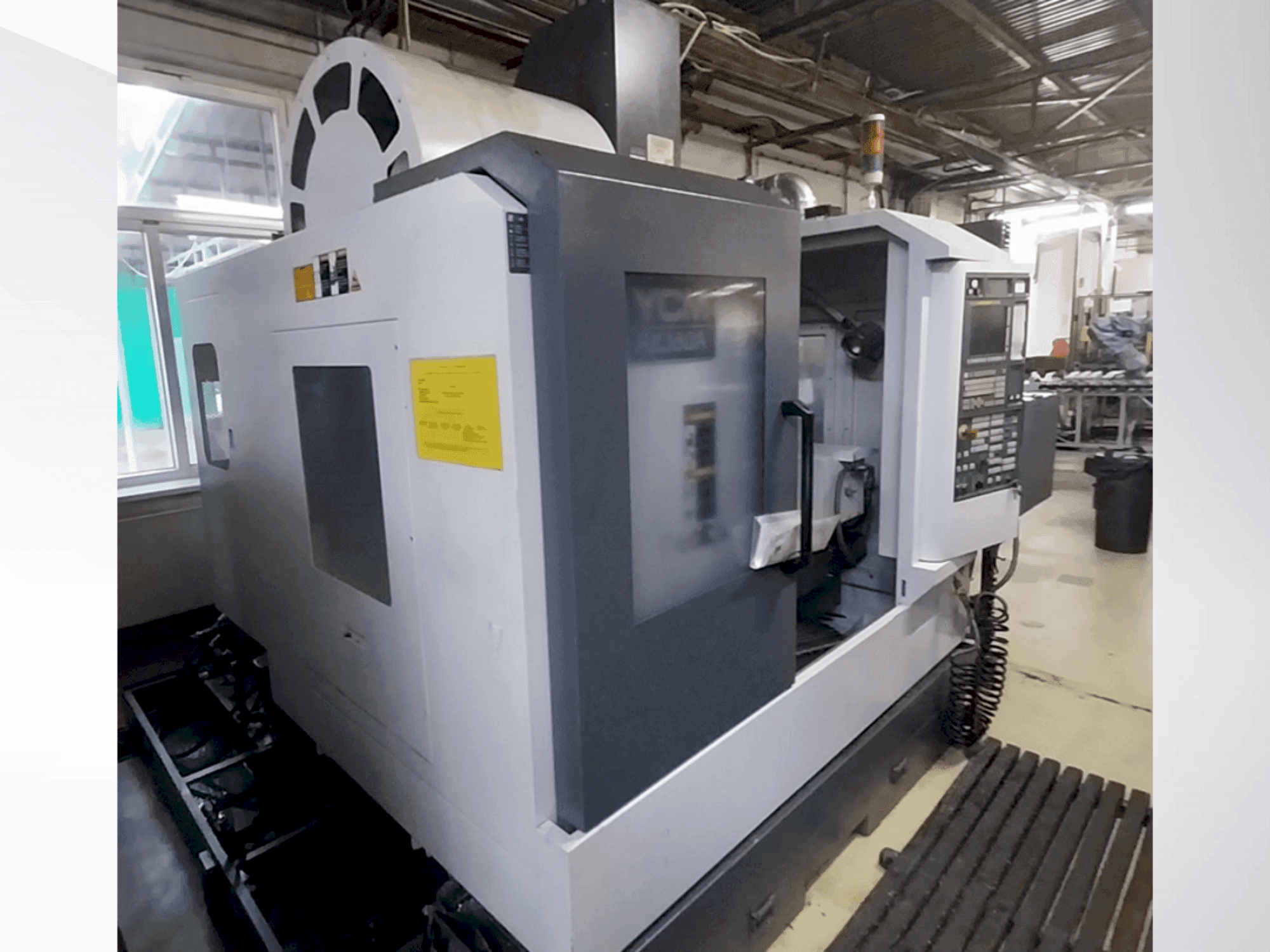

This 3-axis YCM FX380A vertical machining center was manufactured in 2018. It features a high-speed IDD spindle at 12,000 RPM and a MAS-BT40 taper. Equipped with a 30-slot drum tool magazine and a robust 240-liter coolant system, it ensures efficient machining with a table load capacity of 200kg. The spindle supports cooling through the tool with a 20-bar pressure. Ideal for complex machining tasks, the YCM FX380A machine we have for sale. Contact us for more information. There are 2 equal units available.
Overview
- brand: YCM
- year: 2018
- MODEL: FX380A
- production hours: 38656
- application type: Milling
- Location: Hungary
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: FANUC
Technical Information - YCM FX380A
Control Unit
- Brand: FANUC
- Model: MXP-200FC
Main drive
- Spindle speed range: 12000 1/MIN
- Tool taper: MAS-BT40
Movement
- X-AXIS Movement: 700 mm
- Y-AXIS Movement: 520 mm
- Z-AXIS Movement: 480 mm
Table
- Table load: 200 kg
- Max punching diameter: 380
Turret
- Max tool length: 280 mm
- Number of tool slots: 30
Media
- Oil water separator: Yes
- Chip conveyor: Yes
Additional Equipment
- - ATC 30 tool magazine
- - Coolant system with 240 liter tank
- - High pressure cooling pump MTH2-40
Additional Information
- Technical Machine Benefits:
- - Cooling through the spindle/tool with a pressure of 20 bar
- - Spindle cleaning with air blowing
- - Spindle loyalty system
- - Built-in air cooling
- - Built-in connection for pneumatic/hydraulic actuation
- - Clamping unit, 2xin/2xout
- - Plc modification: simultaneous tightening and loosening of a/c axes for cycle time optimization adjustability if the x and y axes do not move when changing tools
- - Active cooling of electric cabinet
- - Automatic central oiling with oil level monitoring
- - Work space completely paved
- Qualitative Machine Benefits:
- - Workplace lighting lamp
- - Working status indicator light
- - Documentation: english
- - 2 equal units available.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
