Zayer 30-KCU-12000
Zayer - 30-KCU-12000
1998
135,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Zayer 30-KCU-12000 Milling machine
Show in original language

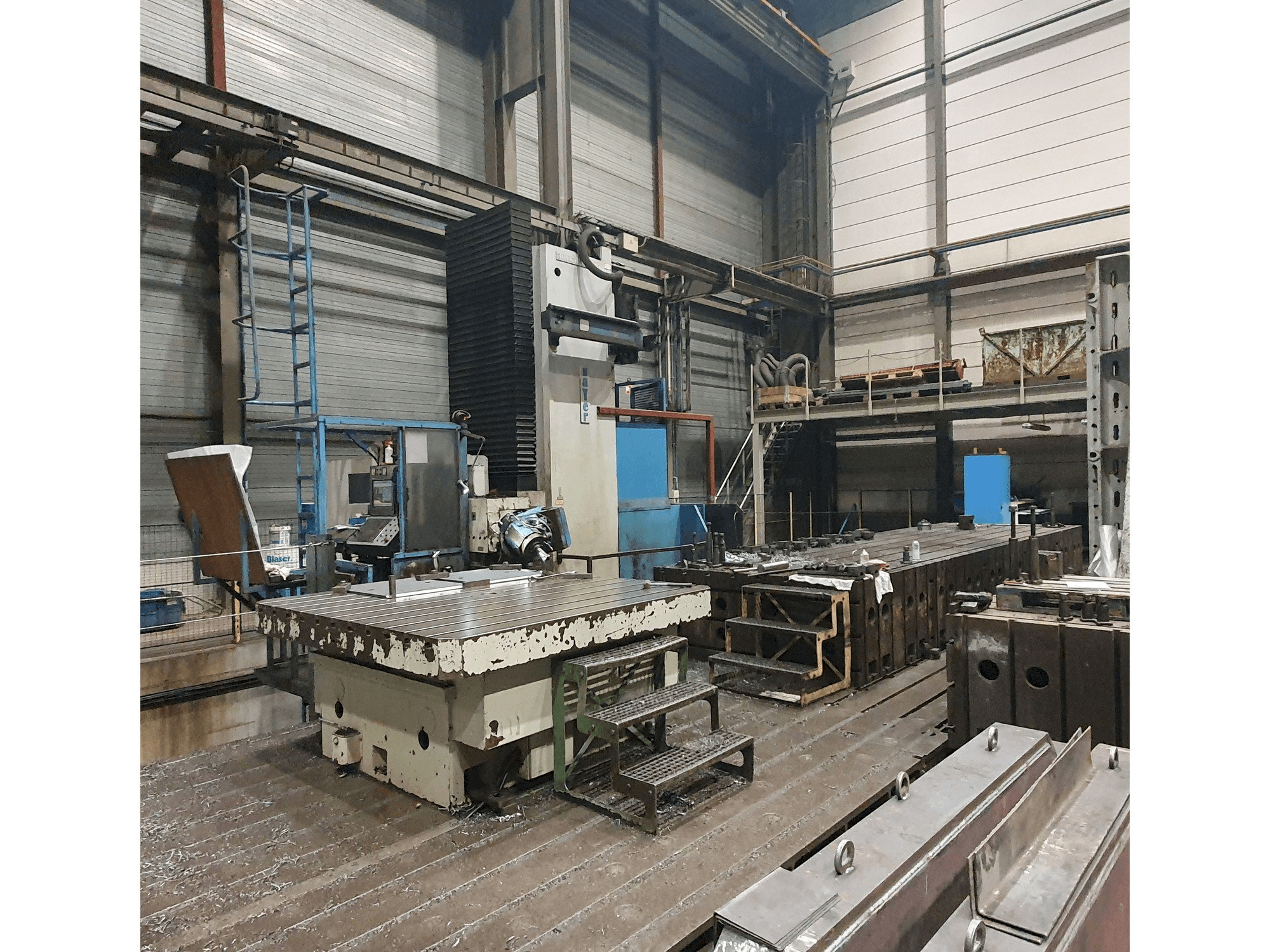

This Zayer 30-KCU-12000 Milling machine was manufactured in the year 1998. It is equipped with a Siemens TNC 430 CA control unit and has 3 axis. The machine has a spindle speed of 35-3000 rpm.
Overview
- brand: Zayer
- year: 1998
- MODEL: 30-KCU-12000
- application type: Milling
- Location: Belgium
- machine type: Milling Machine
- availability: Immediately
- control unit brand: Siemens
- GINDUMAC ID: BE-MIL-ZAY-1998-00001
Technical Information
General Data
- Machine weight: 45500 kg
Control Unit
- Brand: Siemens
- Model: TNC 430 CA
Main drive
- Spindle speed range: 35-3000 1/MIN
- Number of axis: 3
Table
- Outer length: 14000 mm
- Outer width: 3500 mm
- TSlots size: 14
- Distance between: 250 mm
Additional Information
- Technical Machine Benefits:
- - Movement in length: 12008 mm
- - Cross movement: 1507 mm
- - Vertical movement: 3008 mm
- - Tool conus: din69871 - b50
- - Tightening bolt for tool holder: 150 7388-2-b50
- - # tools in magazine holder: 100
- - Feed rate (normal): 6-5000 mm/min
- - Feed rate in length direction (rapid traverse): 10000 mm/min
- - Feed rate in cross direction (rapid traverse): 15000 mm/min
- - Feed rate in vertical direction (rapid traverse): 15000 mm/min
- Qualitative Machine Benefits:
- - Positioning accuracy: +- 0,013 mm
- - Reiteration accuracy: +-0,007 mm
- - Milling heads with automatic rotation in a and b plane,
- - Max. Permitted torque is then 100 danm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
