➤ Used ZINSER 2425-I/3600 For Sale | gindumac.com

Show in original language

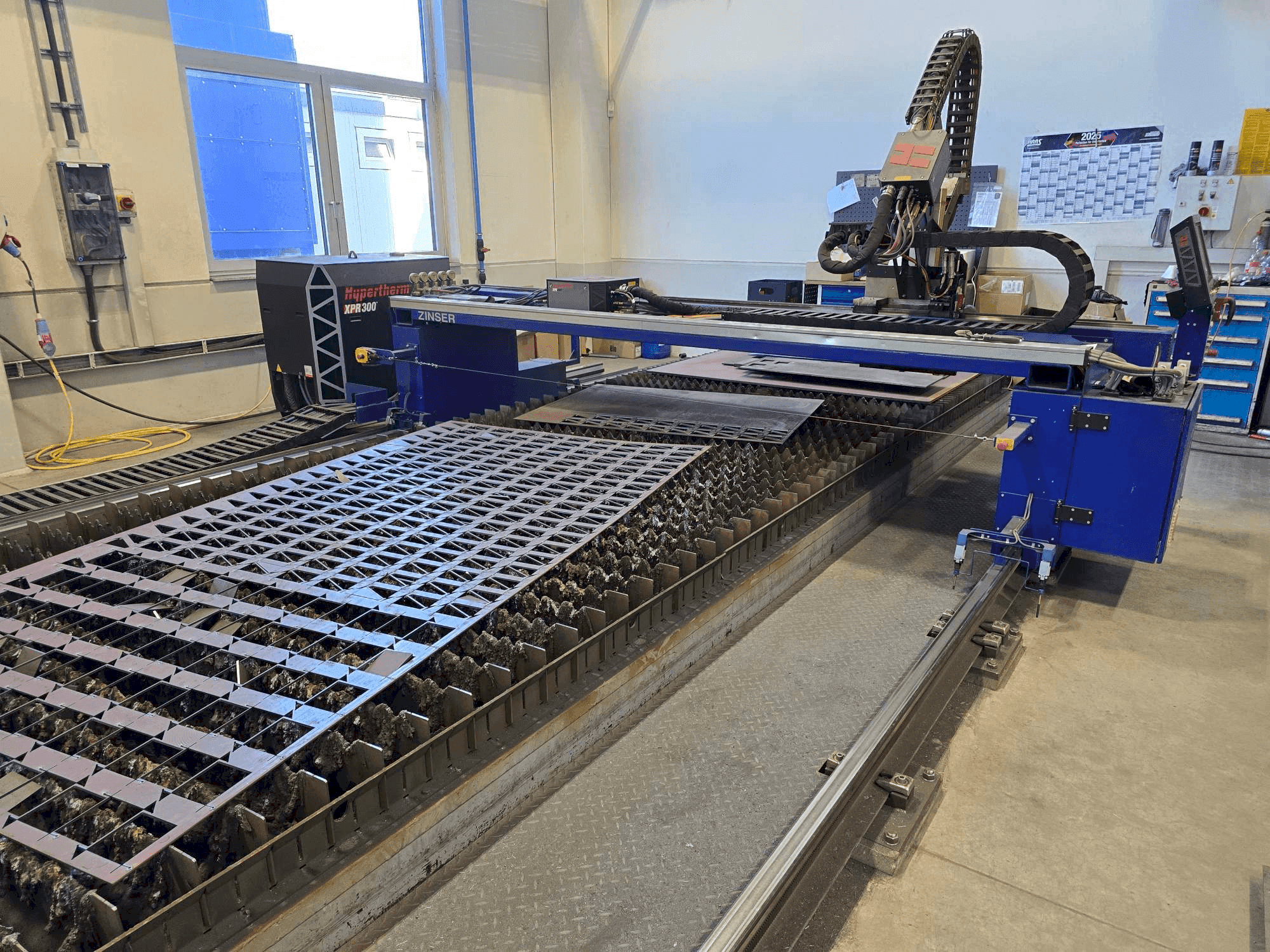

This ZINSER 2425-I/3600 plasma cutting machine was manufactured in 2017. It features a CNC-controlled system for both plasma and oxyfuel cutting, handling materials up to 35 mm thick and pipes from 100 to 620 mm. The machine offers a working area of 2000 x 8000 mm and includes advanced features like a 3D plasma cutting system, CNC path control, and an integrated network card for enhanced connectivity. For more information about this machine, please reach out to us.

Overview

brand: ZINSER
year: 2017
MODEL: 2425-I/3600
application type: Cutting
Location: Germany
machine type: Plasma Cutting Machine

Technical Information - ZINSER 2425-I/3600

Media

Power consumption: 4.0 KVA

Additional Information

Additional equipment

Energy chain for plasma operation
Environmentally friendly extraction system with sectional distribution
Automatic gas console for monitoring and controlling gas flow and pressure

Machine Benefits

Technical Machine Benefits

High-quality ac servo motors for movement
Automatic initial height detection via nozzle contact
Optimal cutting quality with customized gas mixture
Excellent extraction quality with designed cross distributors
Plasma and oxyfuel cutting
Total table elements: 4
Dimensions per table element: 2080 × 2100 × 950 mm
Continuous usable work surface: 2000 x 8000 mm (vertical cutting), 1500 x 8000 mm (angled cutting)
Movement feed: 10 to 15000 mm/min rapid traverse: 25000 mm/min
Double-sided, synchronized longitudinal drive via pinion and rack with brushless ac servo motors

Extra Information

Control Unit CNC path control with Windows 8.1 operating system 17" TFT color monitor - Touch Full HD IPC-based with AMD CPU 4x2.0 GHz SSD 64 GB, 4 GB RAM (upgradeable to 16 GB RAM) Ambient temperature +5°C to +45°C at max. 90% humidity, non-condensing 100-240 V AC input voltage Integrated network card Joystick for manual movement Remote maintenance service Cutting range: 0° to 50° vertical stroke Compressed air requirements: max. 7 bar, cleaning pressure 6-7 bar Sound level during filter cleaning: ≤ 75 dB(A)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Zinser Plasmaschneidanlage Austattung Bj2017.pdf
