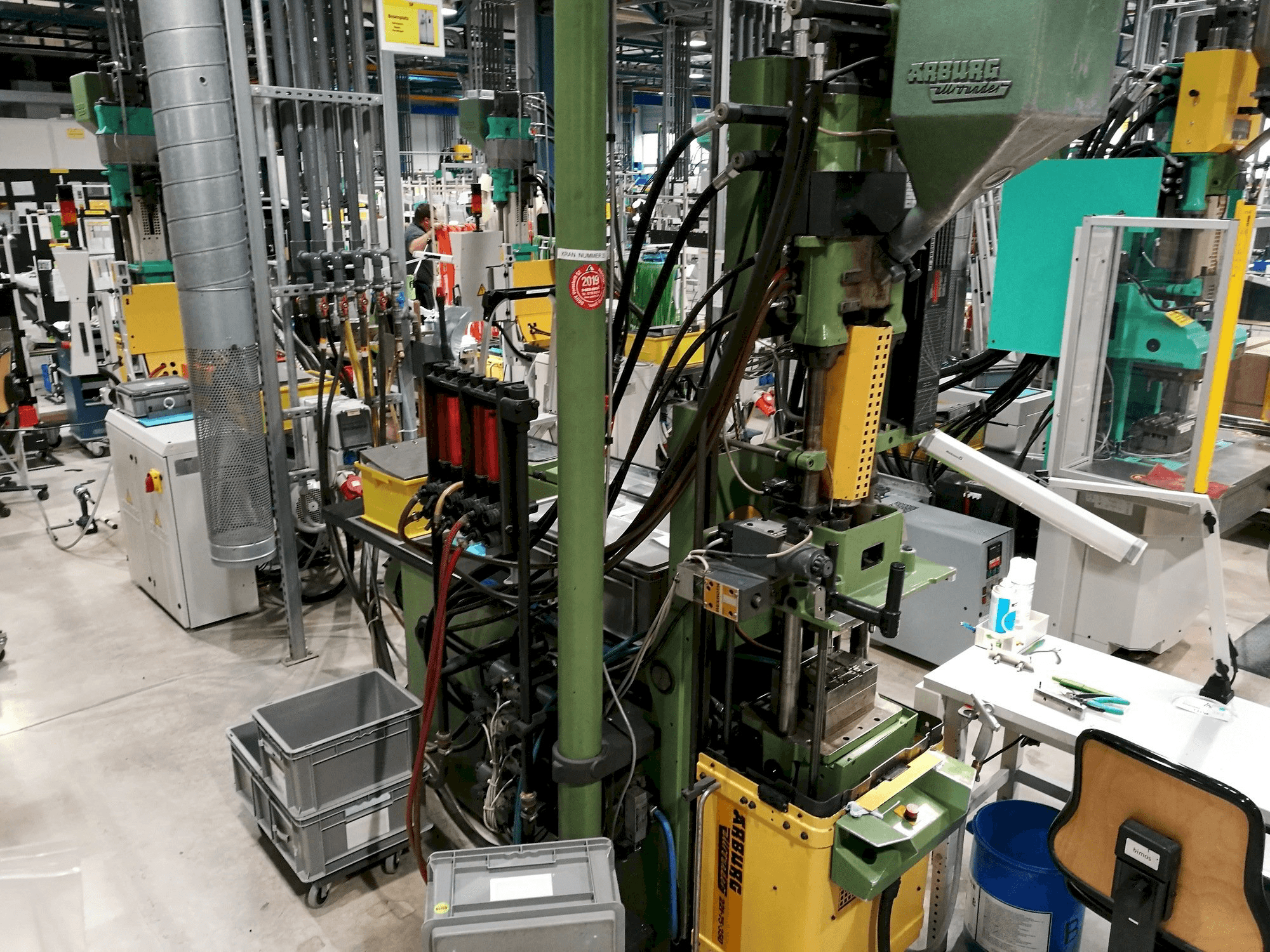

This Arburg 221-75-350 Injection Moulding Machine was manufactured in Germany in 1990 and has a production record of 21267 hours. Equipped with a Arburg Polytronica Control unit, this machine can work with a clamping force of 350 kN and an injection pressure of 1090 bar.
Overview
- brand: Arburg
- year: 1990
- MODEL: 221-75-350
- production hours: 21267
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: Arburg
- GINDUMAC ID: DE-INJ-ARB-1990-00004
Technical Information
General Data
- Measurements width: 2980 mm
- Measurements depth: 1040 mm
- Measurements height: 1500 mm
- Machine weight: 970 kg
Control Unit
- Brand: Arburg
- Model: Polytronica
Injection Unit
- Screw diameter: 30 mm
- Stroke volume: 70 CM³
- Injection pressure: 1090 bar
- Adjustable heating zones: 5
Clamping unit
- Clamping force: 350 kN
- Opening stroke: 200 mm
- Distance between bars: 221 mm
- Mould height max: 75 mm
- Size of mold platens: 432x250 mm
- Ejector stroke: 60 mm
- Ejector force for / back: 27 kN
Media
- Main electronic connection: 330 V
- Power consumption: 11 kVa
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
