Arburg 320 M 850-210
Arburg - 320 M 850-210
1990
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Arburg 320 M 850-210 Injection Moulding Machine

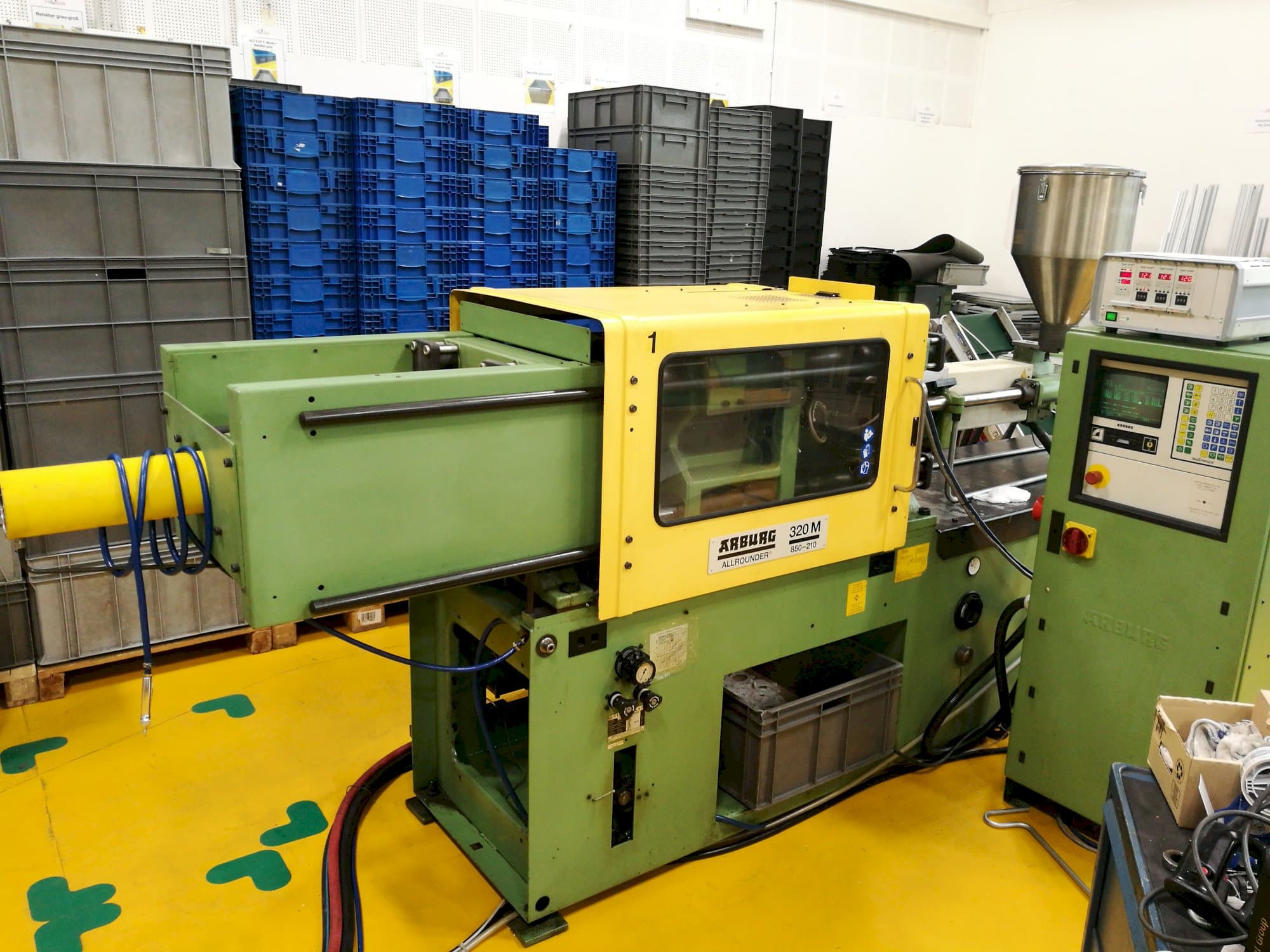

This Arburg 320 M 850-210 Injection Moulding Machine was manufactured in 1990 in Germany and shows a production history of 70182 hours. Equipped with an Arburg Multronica Control unit, this machine offers a clamping force of 850 kN, capable of working up to 4 mm of material thickness. A Nozzle in parting line is included as additional equipment.
Overview
- brand: Arburg
- year: 1990
- MODEL: 320 M 850-210
- production hours: 70182
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: Arburg
- GINDUMAC ID: DE-INJ-ARB-1990-00003
Technical Information
General Data
- Measurements width: 4300 mm
- Measurements depth: 1850 mm
- Measurements height: 2000 mm
- Machine weight: 3060 kg
Control Unit
- Brand: Arburg
- Model: MULTRONICA
Injection Unit
- Screw diameter: 35 mm
- Stroke volume: 144 cm3 CM³
- Injection pressure: 1500 bar
Clamping unit
- Clamping force: 850 kN
- Opening stroke: 375 mm
Media
- Main electronic connection: 380 V / 50 Hz
- Power consumption: 24 kW
- Internal cooling: Yes
Additional Equipment
- - Nozzle in parting line
Additional Information
- Material type: Plastic
- material thickness: 4 mm
- End product: Plastic parts
Machine history
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
