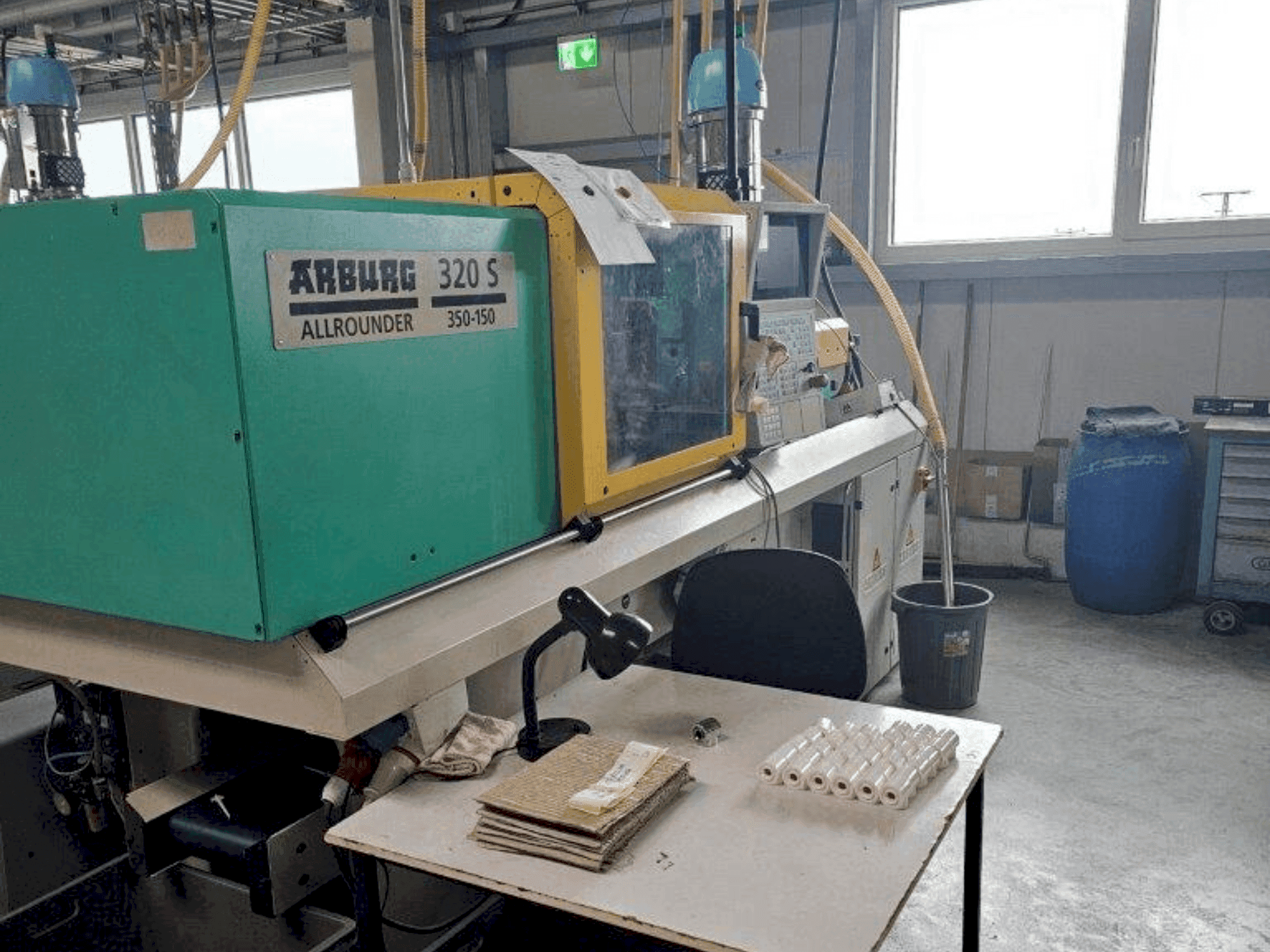

Front view of Arburg 320 S 350-150  machine

Arburg - 320 S 350-150DE-INJ-ARB-2001-00005

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This ARBURG 320 S 350-150 Injection moulding machine was manufactured in 2001 in Germany. It has a clamping force of 350 kN and a screw diameter of 30 mm. The min. mold installation height is 172 mm and the platen size is 472 x 472 mm. In total it operated 73384 pump hours. See original tech specs sheet (DE) as PDF attached below.

Overview

  • brand: Arburg
  • year: 2001
  • MODEL: 320 S 350-150
  • production hours: 73384
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold
  • control unit brand: ARBURG

Technical Information - Arburg 320 S 350-150

General Data

  • Machine weight: 2250 kg

Control Unit

  • Brand: ARBURG
  • Model: SELOGICA 3.080

Injection Unit

  • Screw diameter: 30 mm
  • Stroke volume: 78 cm3 CM³
  • Injection pressure: 2210 bar

Clamping unit

  • Clamping force: 350 kN
  • Max open daylight: 270 x 270 mm
  • Distance between bars: 472 x 472 mm
  • Mould height min: 175 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Mold installation height min. 175 mm
      • - Clear column spacing 270 x 270 mm
      • - Mold mounting platens (w x h) 472 x 472
      • - Drive power of the hydraulic pump 11 kw
      • - Effective screw length l/d 20
      • - Screw stroke max. 110 mm
      • - Calculated stroke volume max. 78 cm3
      • - Injection part weight max. 71 g/ps
      • - Injection pressure max. 2210 bar
      • - Injection flow max. 82 cm3/s

    Extra information

    • - Oil filling 120 l // Pump hours 73,384 h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
