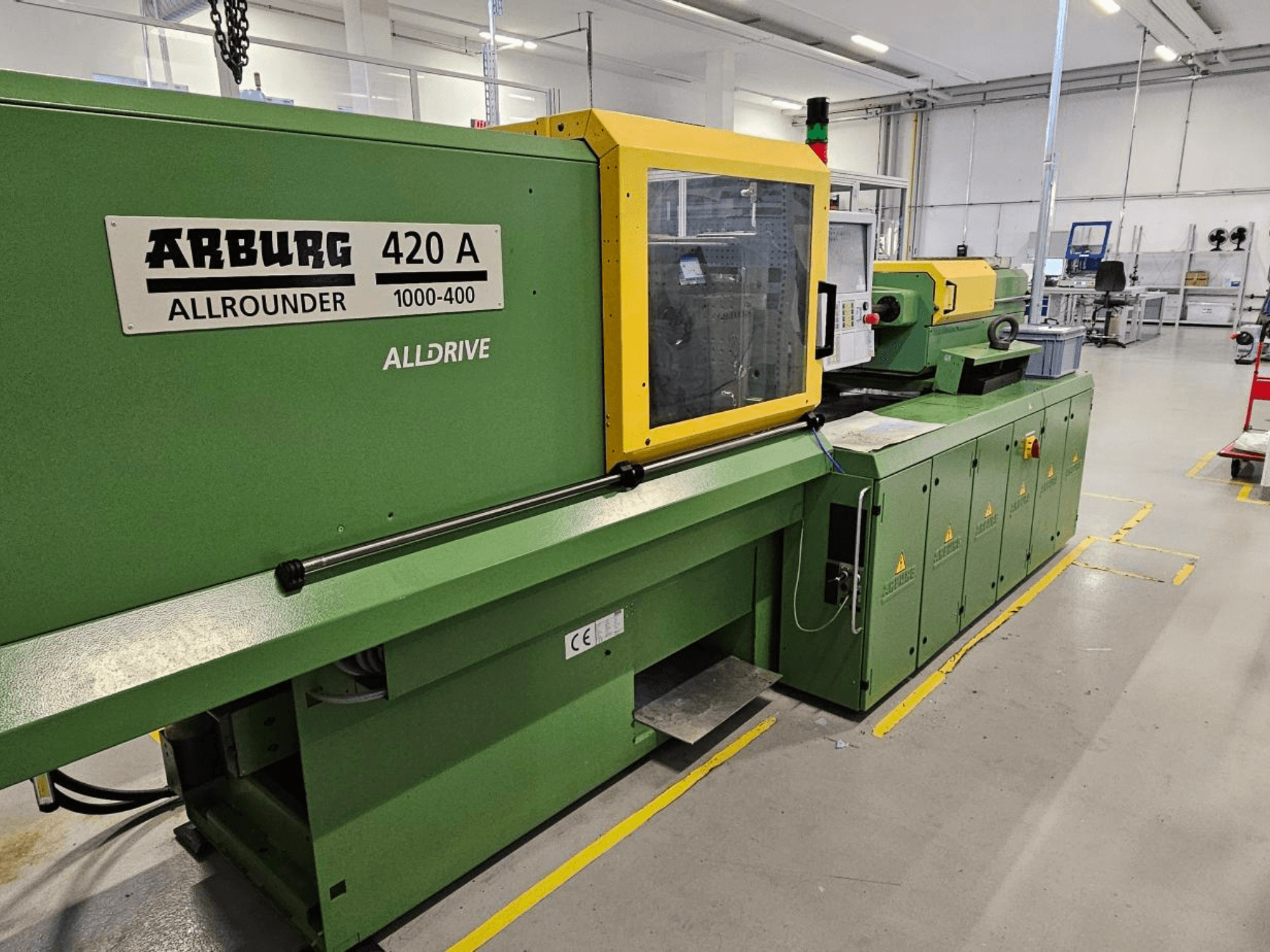

Arburg - 420A 1000-400DE-INJ-ARB-2007-00014

• Drive technology:

  • Electromechanical main movements by servo drives: dosing, injection, mold open/close, ejector

  • Hydraulic movement for nozzle displacement

  • Thermoplastic processing

  • Small hydraulic unit with accumulator, 5.5 kW, 10 cm³ pump (Pos 132/22)

  • Machine platens with centering ring D125 mm (Pos 356/11)

• Injection unit (servo-controlled):

  • Horizontal 400 injection unit

  • Modular plasticizing unit with central coupling and adaptive temperature control

  • Plasticizing assembly D25 mm, high wear/corrosion resistance; open nozzle (220/25), flat nozzle tip (300/00), heater band (320/00) (Pos 060/25)

  • Heater band temperature up to 450 °C (Pos 427/02)

  • Standard drive coupling, double-flat (Pos 061/10)

  • Without hopper (Pos 600/06)

  • Servo-regulated, programmable nozzle contact force (Pos 408/03)

• Clamping unit:

  • Five-point double toggle with servo-electric adjustment

  • Electric mold height adjustment

  • Prepared for mounting a linear robot on the fixed platen

  • Mold protection via ejector position monitoring (Pos 605/05)

  • Machine feet (Pos 605/03)

  • Quick coupling for ejector bar (Pos 605/06)

  • Electric ejector with position control (Pos 381/05)

  • Programmable hydraulic core for parallel movements (Pos 382/00)

  • Air blow unit 1 with pressure reducer (Pos 361/01)

  • Machine cooling circuits, regulated and programmable (Pos 525/02)

  • Cooling water manifold with 4 manually adjustable circuits (Pos 512/04)

• Control, electrical cabinet, interfaces:

  • Selogica control

  • Software packages (Pos 555/01–555/07): Extended mechanical cycle controls; Extended movements; Production control; Optimization/Operator assistance; Quality assurance control; Documentation

  • Temperature-regulated electrical cabinet (Pos 605/07)

  • Selogica Direct, French language (Pos 131/05)

  • Flash card reader (Pos 455/05)

  • Operator authorization by card, Euromap 65 (Pos 455/06)

  • Acoustic alarm (Pos 457/00)

  • Additional socket combination with RCD (Pos 444/01)

  • 12 mold temperature measurement zones (Pos 469/12)

  • Additional heater band for nozzle (Pos 468/01)

  • Interface for HB-Therm mold temperature controller (Pos 453/01)

  • USB serial interface for printer (Pos 454/03)

  • Robot interface Euromap 67 (Pos 425/05)

  • Electrical and mechanical preparation for external robot (Pos 425/02)

  • Water shut-off valve (Pos 501/01)

  • Interface for Thermolift dryer (Pos 464/01)

  • Interface for color dosing unit (Pos 493/00)

Additional equipment

• Electric conveyor belt, programmable (Pos 412/02)

• Sorting flap for separating good/bad parts (Pos 375/00)
