Used ARBURG Allrounder 420 C 1000 - 290 (2022) for sale | GINDUMAC.COM

Show in original language

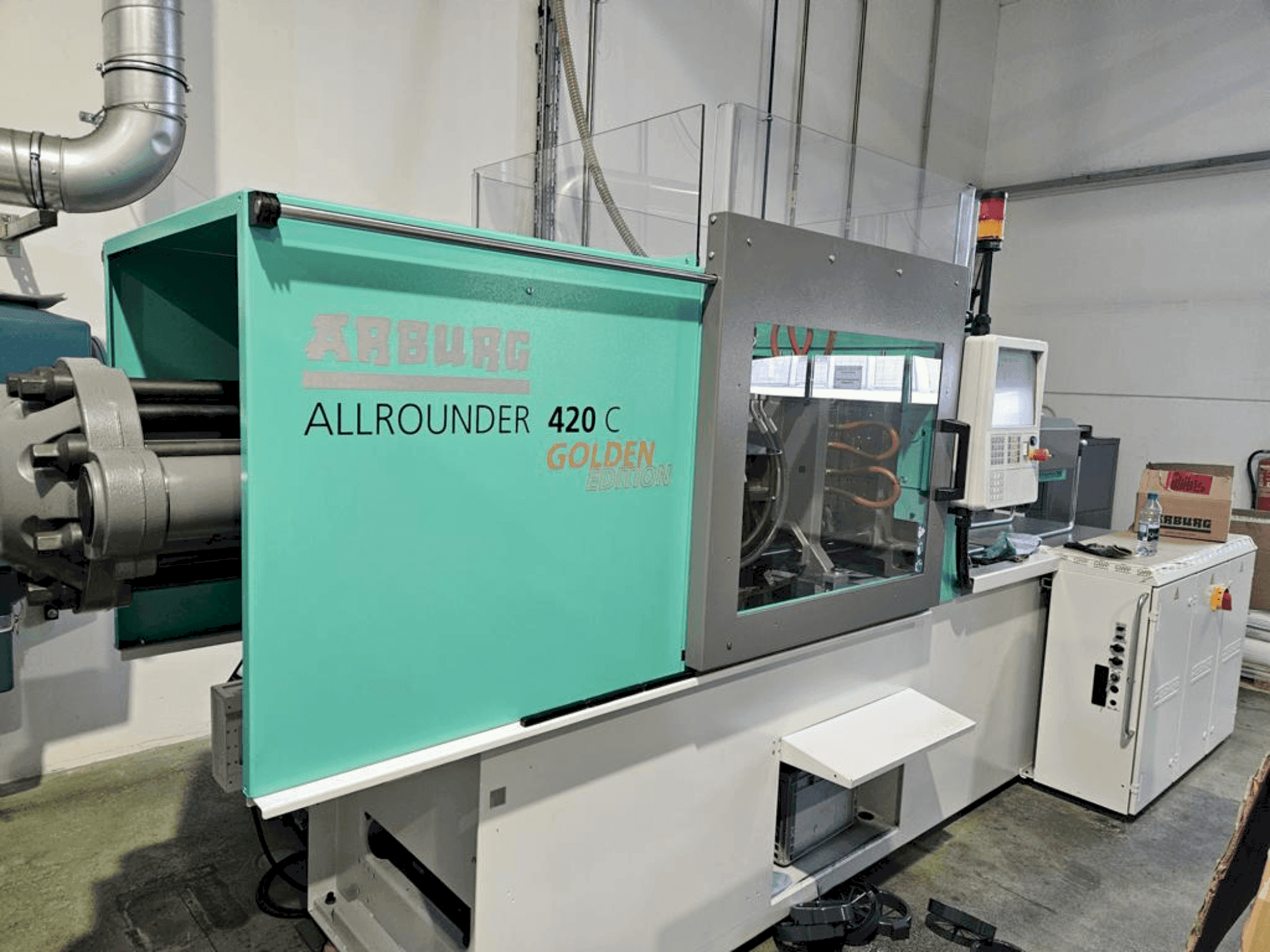

This ARBURG Allrounder 420 C 1000 - 290 Golden Edition Injection moulding machine was manufactured in 2022 in Germany. It is equipped with a Servo-controlled injection unit which has clear distance between tie bars of 420mm. This injection moulding machine has a clamping force of 1000 kN and features a plasticizing cylinder set of 30 mm screw diameter (without nozzle) in wear-resistant design for processing thermoplastics with corrosive and/or abrasive components, with a low to medium filler content of glass, talc orTiO2. It is included an ARBURG THERMOLIFT 100-3 and Temperature control unit (HB-Therm Thermo-5 HB-140Z1). In total is has operated 619h automatic, 891h pump and 81567 machine cycles. See shot weight specifications per material, nozzle and cylinder temperature guide values in photo gallery.

Overview

brand: Arburg
year: 2022
MODEL: Allrounder 420 C 1000 - 290 Golden Edition
application type: Injection Moulding
Location: Austria
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg Allrounder 420 C 1000 - 290 Golden Edition

Additional Equipment

- ARBURG THERMOLIFT 100-3
- Temperature control unit HB-Therm Thermo-5 Type: HB-140Z1

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clear distance between tie bars mm 420, clamping force max. Kn 1000, injection unit to euromap 290
- - Servo-controlled injection unit: injection unit (290) horizontal; max. Rechn. Mm 30 35 40
- - Stroke volume max. Cm3 106 144 188
- - Spraying cable weight max. G/hp 97 132 172
- - Injection pressure bar 2500 2000 1530
- - Clamping unit: central-acting fully hydraulic 4-column clamping system
- - Control system, control cabinet, interfaces: selogica control system with sequence editor, modular and graphic multiprocessor system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
