Arburg Allrounder 420S 1300-675

Name: Arburg Allrounder 420S 1300-675
Brand: Arburg
SKU: DE-INJ-ARB-2004-00002
Price: 16000 EUR
Availability: InStock

Photo Gallery

16,000 €

gindumac price

(Ex works)

Get an official quote

Arburg - Allrounder 420S 1300-675

2004

16,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Used ARBURG Allrounder 420S 1300-675 Injection Moulding Machine

Show in original language

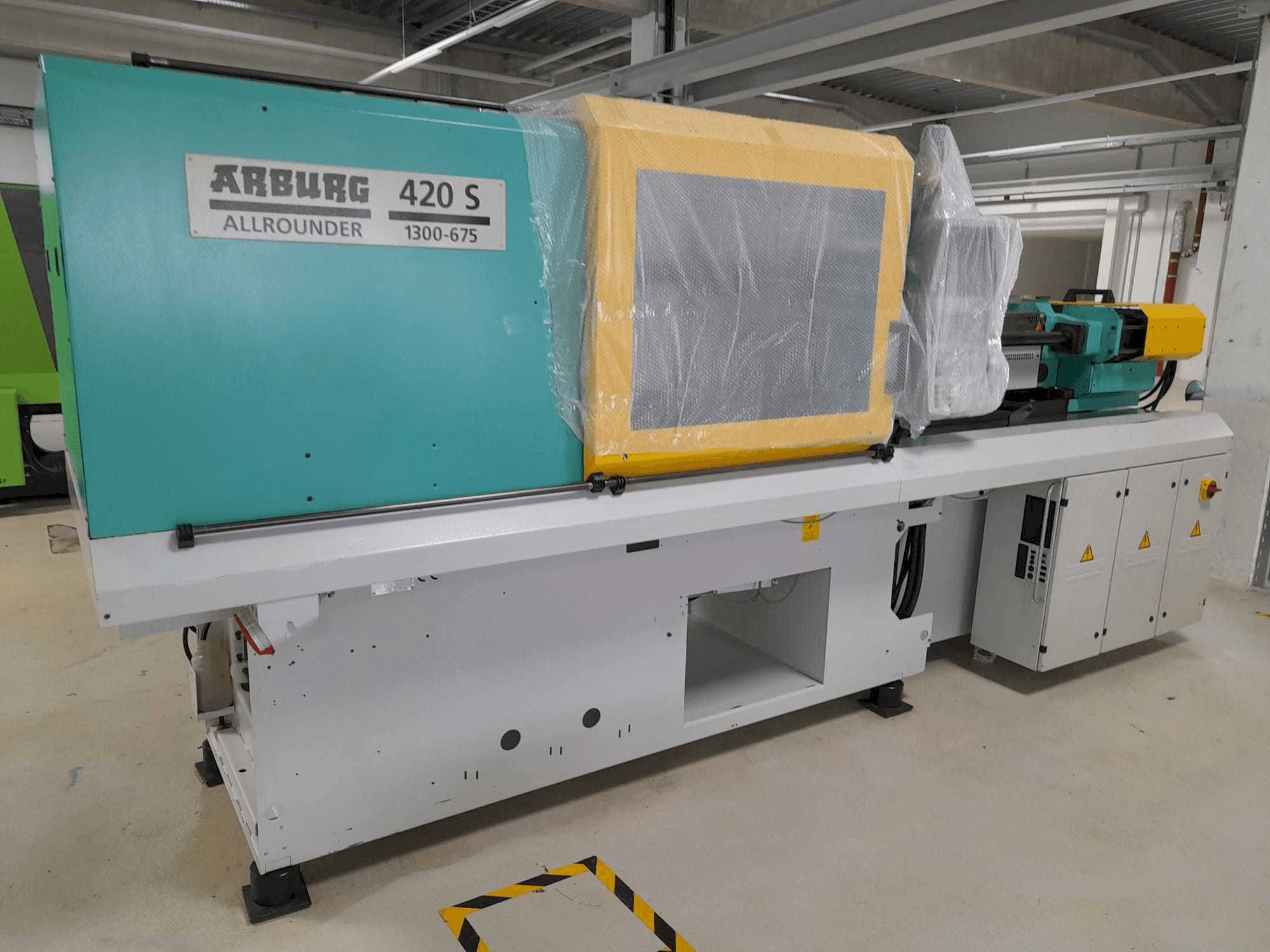

This ARBURG Allrounder 420S 1300-675 Injection Moulding Machine was manufactured in 2004 in Germany. It has a clamping force of 1300 kN and is equipped with a 55mm screw with 2080 bar injection pressure. The open stroke is 575 mm and the mould height is min. 275mm. The machine is controlled by an ARBURG SELOGICA control unit and has operated 53425 hours.

Overview

brand: Arburg
year: 2004
MODEL: Allrounder 420S 1300-675
production hours: 53425
application type: Injection Moulding
Location: Germany
machine type: Injection Moulding Machines
availability: Immediately
control unit brand: ARBURG
GINDUMAC ID: DE-INJ-ARB-2004-00002

Technical Information

General Data

Measurements width: 4800 mm
Measurements depth: 1500 mm
Measurements height: 2200 mm
Machine weight: 5400 kg

Control Unit

Brand: ARBURG
Model: SELOGICA

Injection Unit

Screw diameter: 55 mm
Stroke volume: 55 CM³
Injection pressure: 2080 bar
Screw speed: 59 1/min
Heating capacity: 13.8 kW
Adjustable heating zones: 6

Clamping unit

Clamping force: 1300 kN
Opening stroke: 575 mm
Distance between bars: 850 mm
Mould height min: 275 mm
Size of mold platens: 650 x 650 mm
Ejector stroke: 175 mm
Ejector force for / back: 40 Nm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Plate size h x v 650 x 650 // beam size h x v 420 x 420 mm
- - Installation height 275 mm
- - Opening travel 575 mm
- - Plate distance 850 mm
- - Ejector stroke 175 mm // ejector force 40 nm
- - Centering d movable plate 125mm // centering d fixed plate 125mm
- - Threaded hole clamping plate m12
- - Screw torque 880 nm // screw stroke 180mm
- - Injection pressure 2080 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
