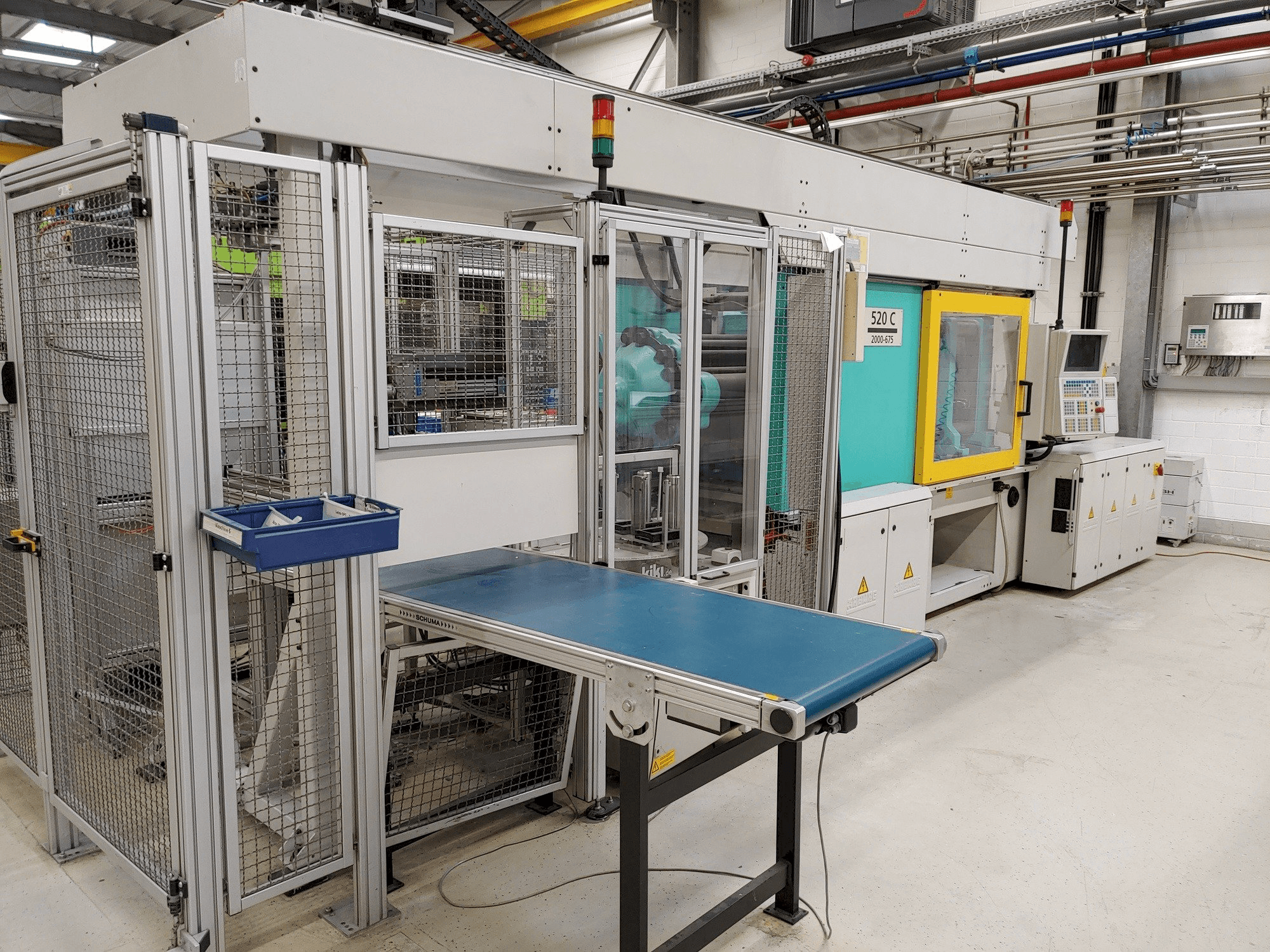

This Arburg Allrounder 520 C 2000-675 Injection Moulding Machine was built in 2002 and has 56776 hours. It is equipped with a Selogica control unit. The machine has a clamping force of 2500 kN and a screw diameter of 45 mm.
Overview
- brand: Arburg
- year: 2002
- MODEL: Allrounder 520 C 2000-675
- production hours: 56776
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Arburg Allrounder 520 C 2000-675
Movement
- X-AXIS Movement: 4200 mm
- Y-AXIS Movement: 520 mm
- Z-AXIS Movement: 1000 mm
Injection Unit
- Screw diameter: 45 mm
- Stroke volume: 286 CM³
- Injection pressure: 2500 bar
Clamping unit
- Clamping force: 2000 kn
- Opening stroke: 650 mm
- Mould height min: 250 mm
- Size of mold platens: 728 x 728 mm
- Ejector stroke: 225 mm
Additional Information
- Technical Machine Benefits:
- - Load capacity: 15 kg
- - Clear column distance: 520 x 520 mm
- - Effective screw length (l/d): 22
- - Molded part weight (max. ): 261 g/hp
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
