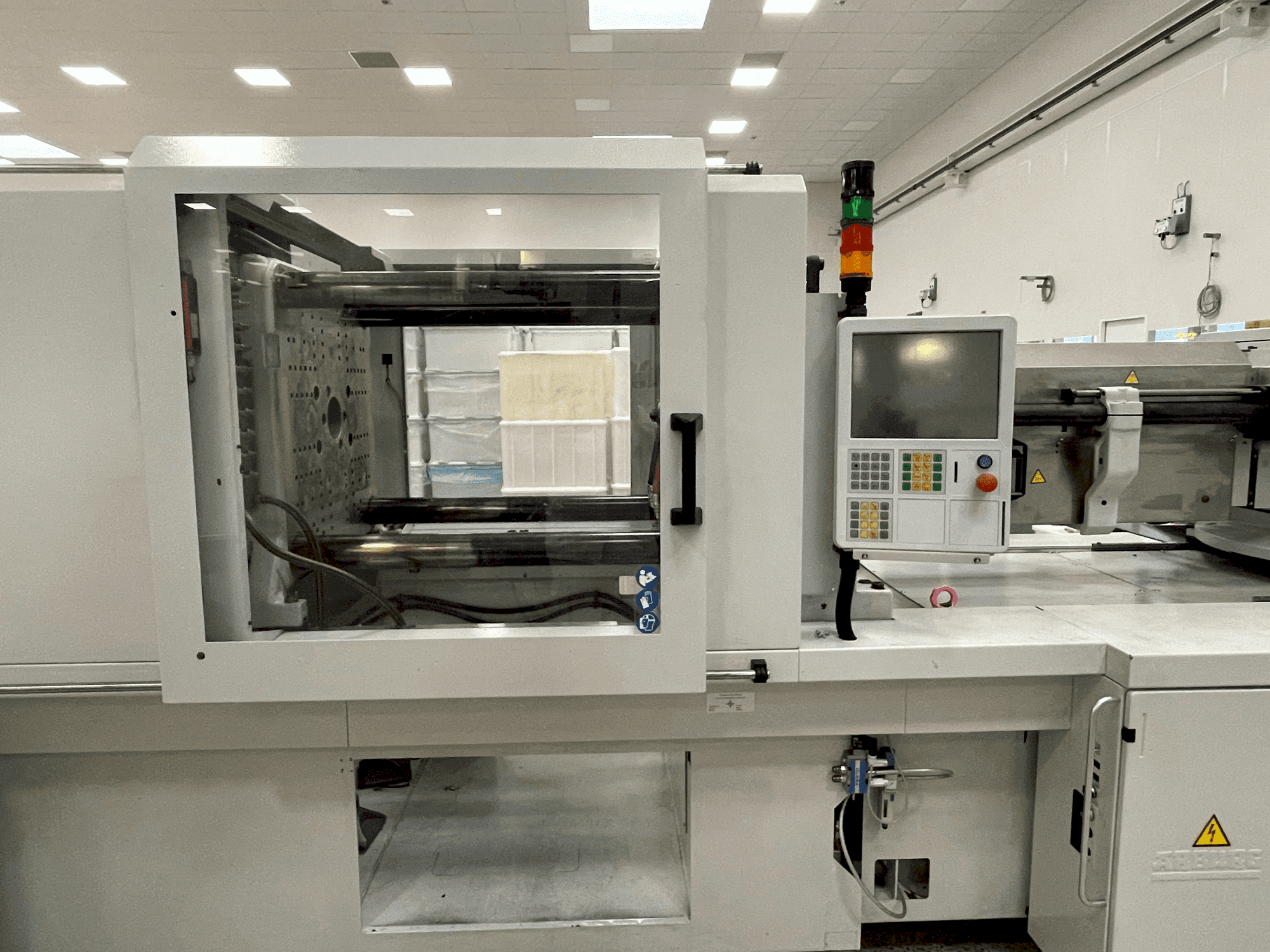

Arburg - Allrounder 570 H 2000-1300DE-INJ-ARB-2014-00001

Additional Equipment

• - Equipment package Extended monitoring
• - Equipment package Extended travel movements
• - Equipment package Production control
• - Equipment package Optimization/ operating aids
• - Equipment package Quality assurance
• - Documentation equipment package

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Reinforced screw coupling - coupling geometry multi-tooth
  • - Thermoplastic cylinder 60 mm long with barrier screw
  • - Drive unit with 30 kw motor and 61. 11/min loading volume flow
  • - Technology level storage drive // thermoplastic processing
  • - Open nozzle 60 mm // nozzle tip radius 15 // heating band for open nozzle
  • - Central clamping platen set Ø 125 mm
  • - Maximum installation dimension increased to 650 mm
  • - Ejector pressure p /q controlled
  • - Continuous oil cooling and filtration
  • - Robot system interface (to euromap 67)
• Qualitative Machine Benefits:
  • - Injection unit adapted for long plasticizing units
  • - Servoelectric mold height adjustment with automatic clamping force control
  • - Injection pressure increased by 10%; screw-dependent max. 2500 bar
  • - Nozzle contact force regulated
  • - 12 electrical heating control circuits for mold heating
  • - Freely programmable ramps for hydraulic ejector
  • - Water-cooled switch cabinet
  • - Machine protection designed for operation with and without multi lift
  • - Low-current switch cabinet 800 x 800

Extra information

• - 50-pin Extension robot interface (Euromap 12 and 67) F9264, 4 programmable inputs/outputs on terminal strip, Socket outlet vert. 1 CEE, 1 Schuko additional, Cutting unit Temperature control unit WKZ 20 mA, Printer interface serial USB, Compact Flash interface for data record storage, Operating authorization with chip card according to EUROMAP 65, Holder for PC keyboard with USB connection, Acoustic fault display, AED - electrom. Dosing drive, Interface Protection of the safety fence door (EUROMAP 73), Parallel connection for heating tape Nozzle tip or adapter, Approach parameters, Interface coloring unit, Shut-off valve for cooling water in feed 1, Elevated oscillating elements (100 mm machine elevation), Machine-related cooling circuits controlled, aXw Control ScrewPilot , CD Operating instructions and spare parts list , Without granulate container 50 L, Without cooling water distribution for mold, Ejector plate connection Safety device, Socket outlet vert. 1 CEE,1 Schuko, Control extension for special signals, Machine in special paint finish
