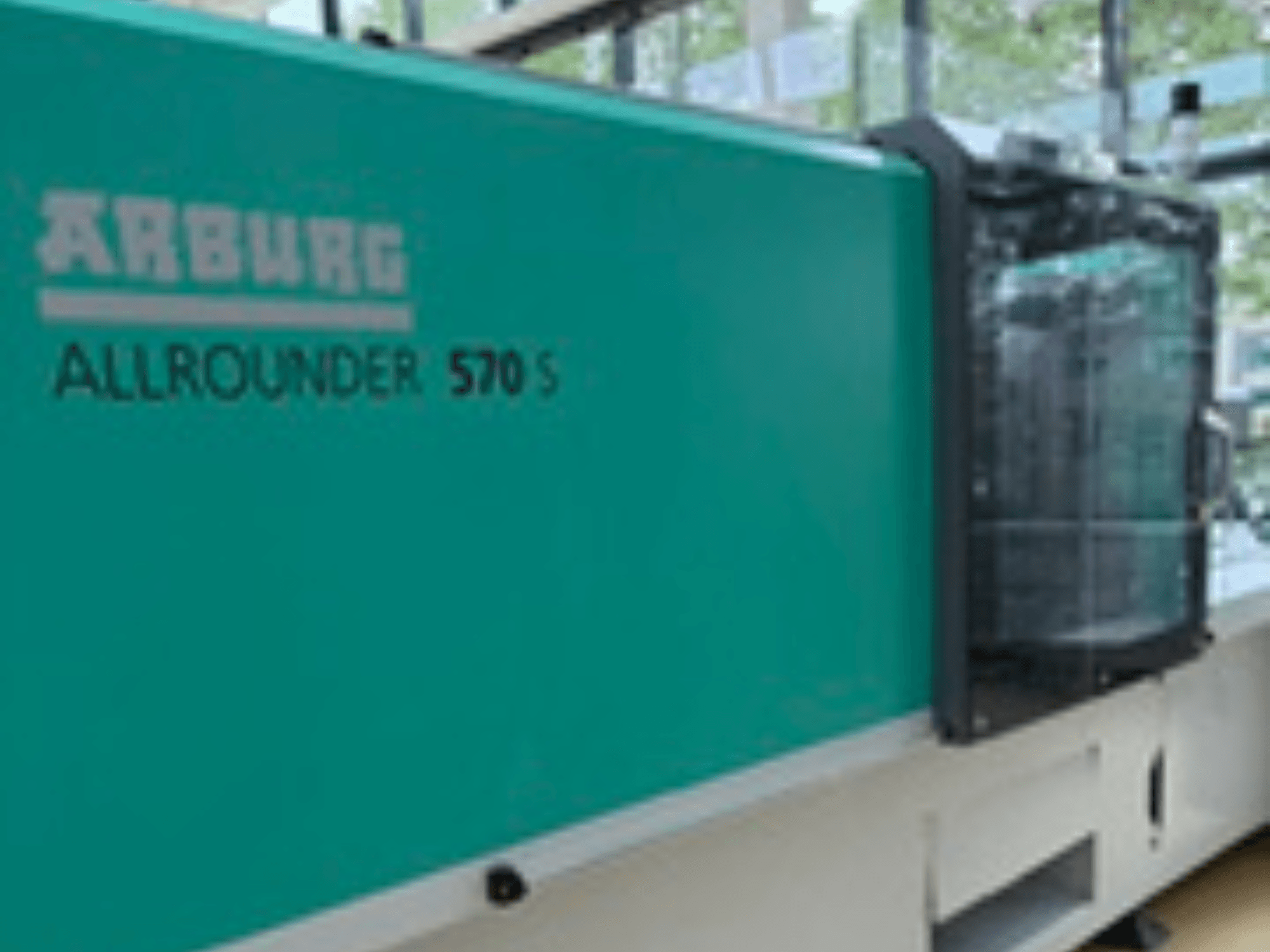

Hydraulic injection moulding machine manufactured in 2021. This Arburg ALLROUNDER 570 S 1600 - 290 features a maximum clamping force of 1600 kN and a screw diameter of 30 mm. It has a calculated stroke volume of 106 cm³ and a shot capacity of 97 g/PS. If you are looking to get high-quality injection moulding capabilities, consider the Arburg ALLROUNDER 570 S 1600 - 290 machine we have for sale. Contact us for further details.
Overview
- brand: Arburg
- year: 2021
- MODEL: ALLROUNDER 570 S 1600 - 290
- application type: Injection Moulding
- Location: Netherlands
- machine type: Hydraulic Injection Moulding Machine
- control unit brand:
Technical Information - Arburg ALLROUNDER 570 S 1600 - 290
Technical Specification
- Clamping Force: 1600 kN
- Max. Shot Weight: 97 g
- Screw Diameter: 30 mm
Additional Information
Distance between tie bars: 570 mm
Injection unit (EUROMAP): 290
Calculated stroke volume: 106 cm³
Max. injection pressure: 2500 bar
Minimum mould installation height: 450 mm
Operating hours: 3,159 (automatic)
Voltage range (AES system): 380–480 V
Frequency: 50–60 Hz
Feed hopper capacity: 50 l
Max. permissible temperature (cooling): 140 °C
Air blow unit flow: 1000 l/min
Socket combination: 16 A with 1× CEE and 1× Schuko
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
