Arburg - Allrounder 630S 2500-800DE-INJ-ARB-2016-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Used Injection Moulding Machine Arburg Allrounder 630S 2500-800 - 2016 - for sale | gindumac.com

Show in original language

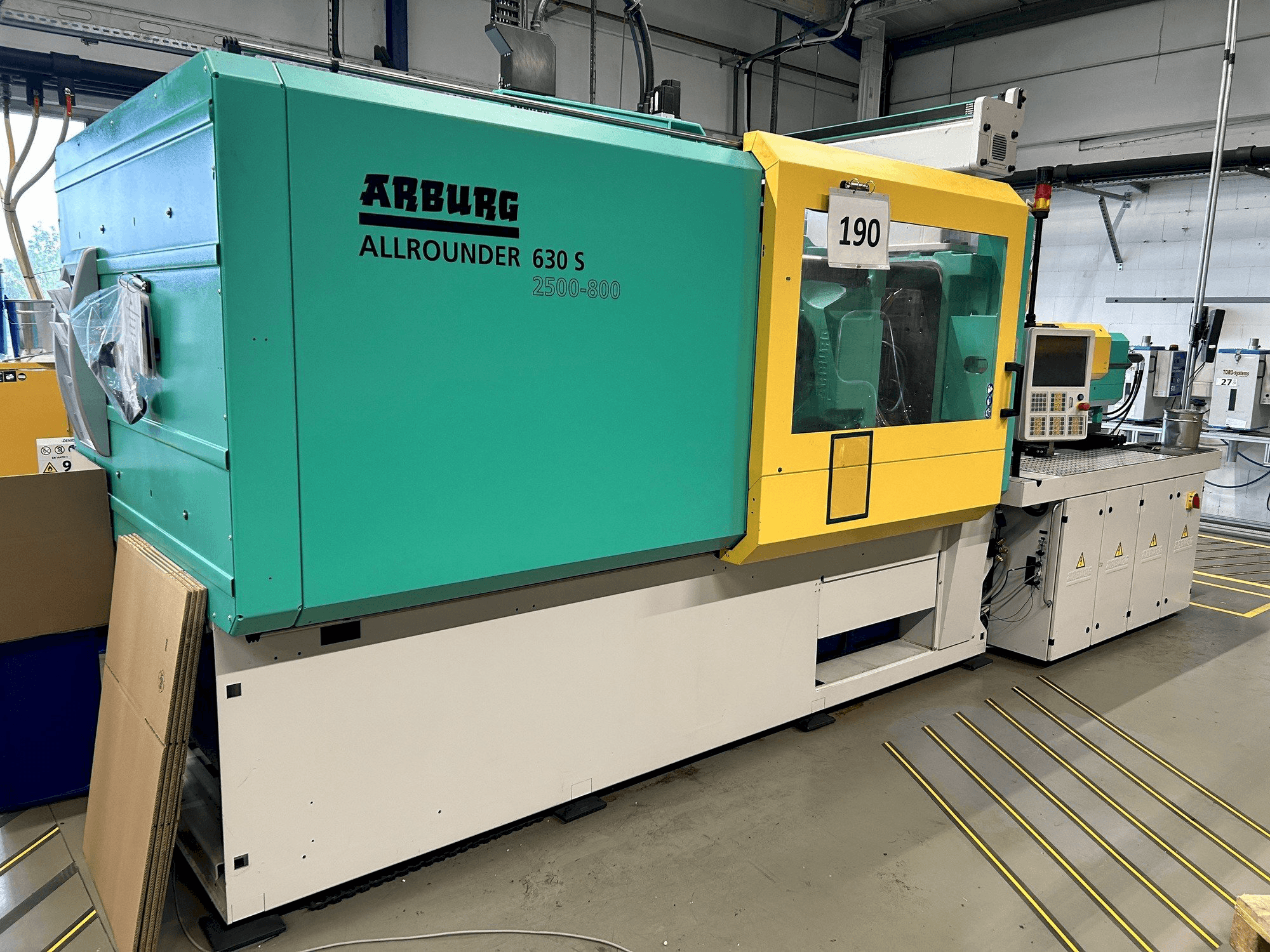

This ARBURG Allrounder 630S 2500-800 injection moulding machine was manufactured in May 2016. It offers a robust 2750kN clamping force, with a hydraulic drive system and precise control features, including 18 hot runner control zones. Key specifications include 45mm screw diameter, a 318cm³ dosing volume, 2470 bar maximum injection pressure, and a 242 cm³/s injection speed, ensuring high performance and consistent quality in production. Furthermore, it's equipped with a Multilift Select robotic system, enhancing automation and efficiency in handling. The ARBURG Allrounder machine we have for sale is tailored for high-volume and intricate moulding operations. It is in very good condition, and has low hours (only 4507 automatic hours) as it was mainly used as technical center machine for sampling and tryouts. Contact us for more information about this injection moulding machine. See original order confirmation (German) for further details attached below.

Overview

brand: Arburg
year: 2016
MODEL: Allrounder 630S 2500-800
production hours: 4507
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg Allrounder 630S 2500-800

General Data

Measurements width: 6157 MM
Measurements depth: 5935 MM
Measurements height: 2665 MM
Machine weight: 12200 KG

Control Unit

Model: Selogica
CNC main language: German, English
Brand: ARBURG

Main drive

Max payload: 15 kg

Injection Unit

Screw diameter: 45 mm
Shot weight: 291g (PS)
Stroke volume: 318 CM³
Injection pressure: 2470 bar
Heating capacity: 19.9 kW
Adjustable heating zones: 18

Clamping unit

Clamping force: 2500 kN
Opening stroke: 600 mm
Distance between bars: 630 mm
Mould height min: 300 mm
Mould height max: 1300 mm
Size of mold platens: 900 mm
Ejector stroke: 225 mm
Ejector force for / back: 90 kN

Additional Equipment

- Robot system: Arburg Multilift Select with Payload: 15 kg, 3-CNC axes (X=2000/Y=700/Z=1000) + C-axis (O° / 90°, 24 Nm), and integration
- Extended mold installation height via adjustment plate
- Interface for communication with Kistler CoMo Injection
- Conveyor belt
- Safety fence for Multilift operation

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of core pulls (hydraulically controlled): 6
- - Number of hot runner control zones: 18
Qualitative Machine Benefits:
- - Integrated robot system (arburg multilift select) for efficient handling and production automation
- - It is in very good condition, and has low hours (only 4507 automatic hours)
- - Mainly used as technical center machine for sampling and tryouts

Extra information

- Machine cycles: 338114 // Operating hours pump: 7868 // Operating hours automatic: 4507 // Operating hours semi-automatic: 570 // Operating hours robot system: 2315

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
