Arburg - Allrounder 920 S 5000-2100DE-INJ-ARB-2017-00006

Name: Arburg Allrounder 920 S 5000-2100
Brand: Arburg
SKU: DE-INJ-ARB-2017-00006
Price: 110000 EUR
Availability: InStock

110,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 920 S 5000-2100 For Sale

Show in original language

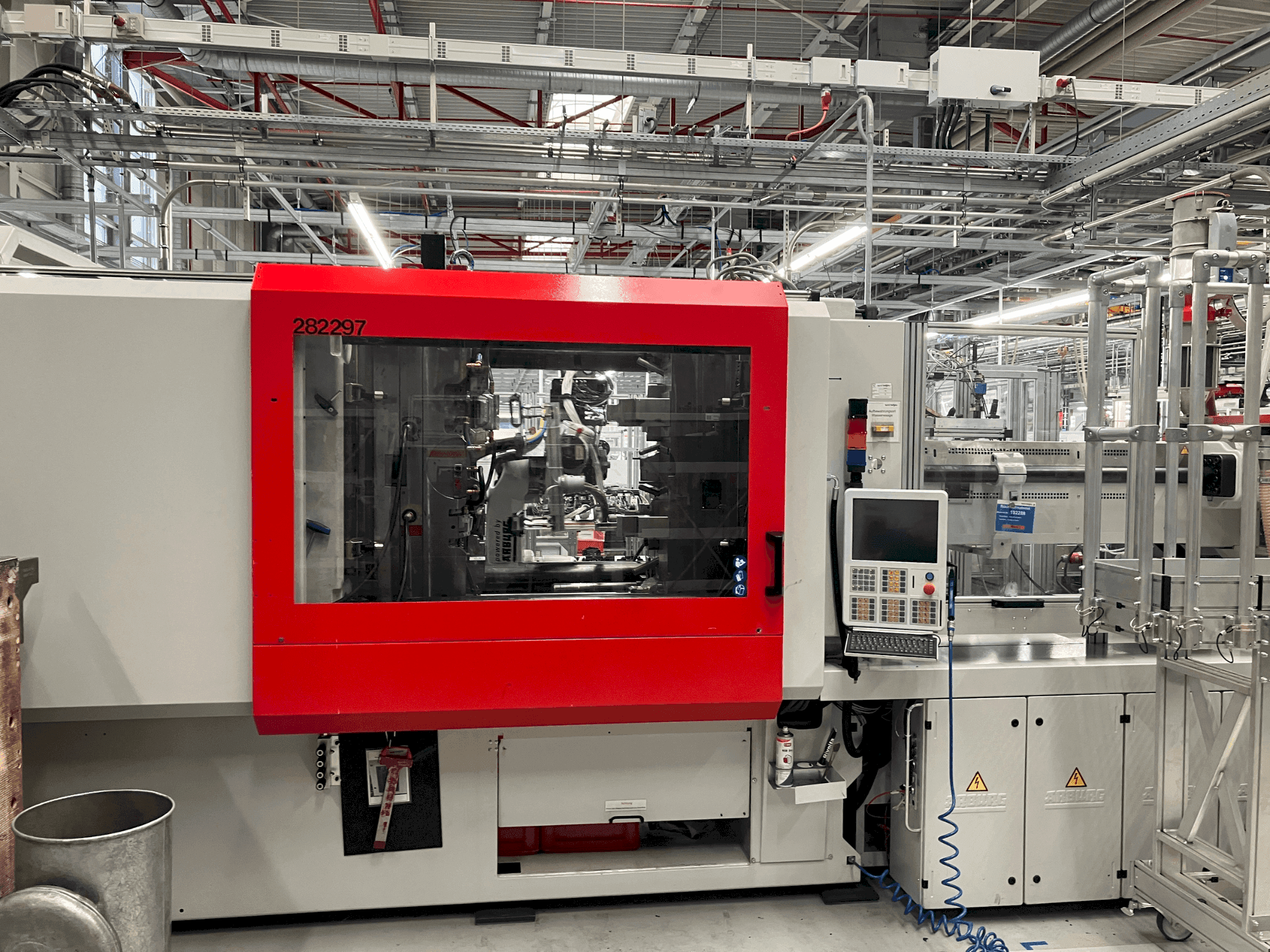

This Arburg Allrounder 920 S 5000-2100 was manufactured in 2017. It's a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing. Consider the opportunity to buy this Arburg Allrounder 920 S 5000-2100 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: Arburg
year: 2017
MODEL: Allrounder 920 S 5000-2100
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg Allrounder 920 S 5000-2100

Dimensions

Machine Depth: 9200 mm

Technical Specification

Clamping Force: 5000 kN
Screw Diameter: 70 mm

Additional Information

Equipped with the mucell process for series injection molding
Machine is fully hydraulic

The machine is equipped with the mucell process and can also be used for series injection molding.
Tonnage: 550 tons
Language options: german
Maximum opening: 900 mm / maximum plate distance: 1300-1950 mm / maximum ejector length: 250 mm
Coupling diameter: 45 mm / center ring diameter: 200 mm / valve gate: 4 pneumatic, 8 hydraulic
Hk control points: 24
Number of hydraulic core pulls (fixed side): 1 / number of hydraulic core pulls (moving side): 2
Ejector can open simultaneously with wkz. Core pulls are freely programmable. Ejector and removal can be adapted to each other. Clamping platen is height-adjustable
Power of the main motor 90 kw
Oil capacity: 600 liters

Additional equipment

Optional: Peripherals: 8x Temperature Control Unit Thermo 5 / Robot: KUKA KR30-3 / 2 x Conveyor belts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
