➤ Used Auerbach FBE 3000 - 2011 - For Sale | gindumac.com

Show in original language

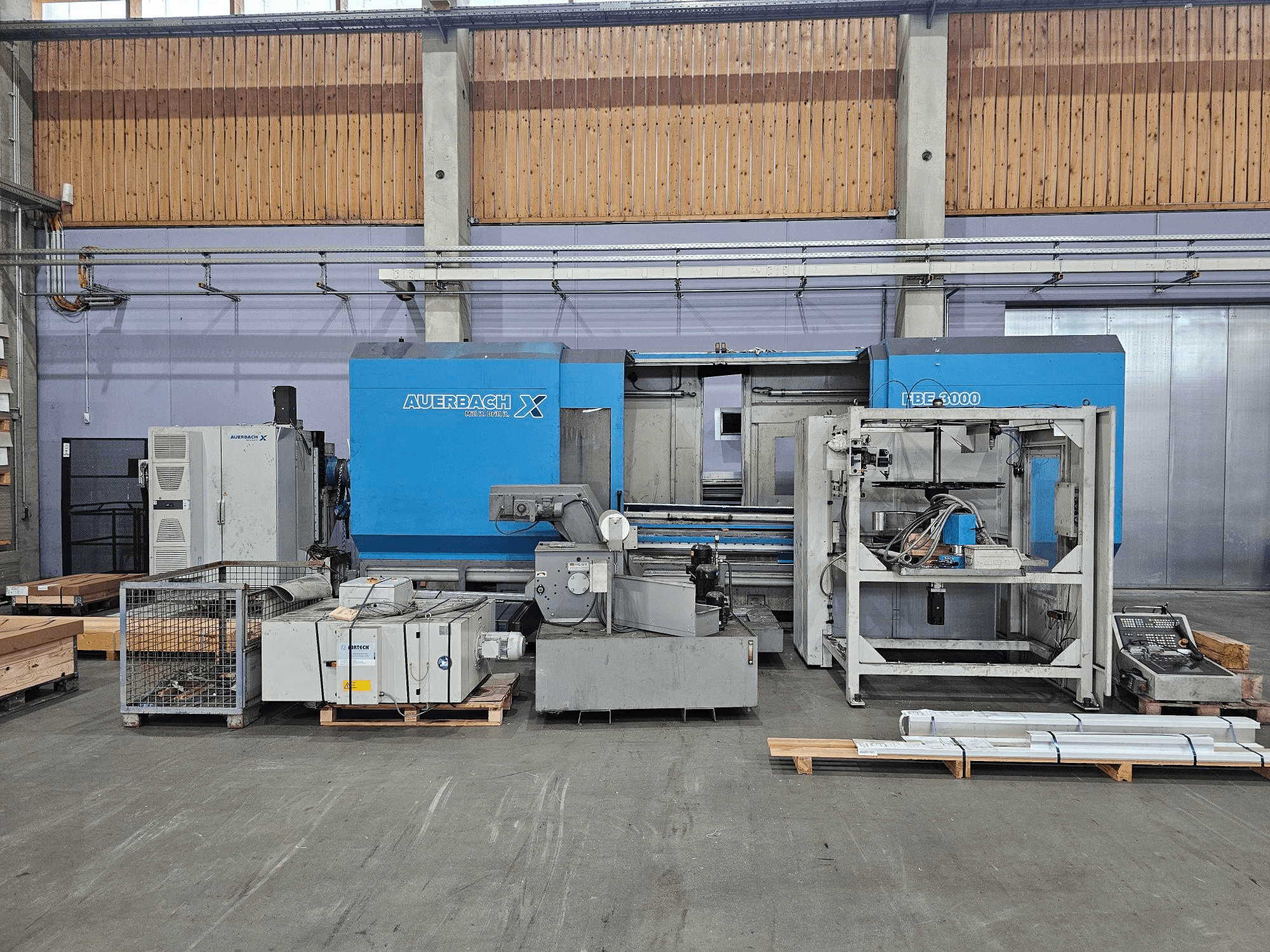

This 3-axis Auerbach FBE 3000 Bed Type Milling Machine was manufactured in 2011. It features a robust clamping surface of 3100 x 800 mm, capable of handling a maximum table load of 10,000 kg. The machine is equipped with a multi-position milling head KFM 1, a tool holder SK 50, and offers a spindle power of 25 kW with speeds up to 4000 rpm. If you are looking to get high-quality milling capabilities, consider the Auerbach FBE 3000 machine we have for sale. Contact us for more information.

Overview

brand: Auerbach
year: 2011
MODEL: FBE 3000
application type: Milling
Location: Germany
machine type: Bed Type Milling Machine

Technical Information - Auerbach FBE 3000

Dimensions

Table Load: 10000 kg

Movement

Number of Axes: 3
X-axis Travel: 3000 mm
Y-axis Travel: 865 mm
Z-axis Travel: 900 mm

Technical Specification

Spindle Power: 25 kW
Spindle Speed: 4000 RPM

Additional Information

Guides and travels
- Flat guides on all 3 axes, coated with synthetic material
- Distance spindle center to table surface: 98–998 mm
Milling spindle
- Multi-position milling head KFM 1
- Tool holder: SK 50 (DIN 69871 Form A, DIN 69872 Form A)
- Drawbolt tightening torque: 175–180 Nm
- Nominal drive power (continuous, two ranges): 25 kW
- Speed range 1: up to 930
- Speed range 2: up to 4000
- Max. torque: 800 Nm
- Gear ratio: 1:5.6
Table (workpiece side)
- Clamping surface: 3100 × 800 mm
- T-slots: 7 × 18 H12
- Alignment slot: 1 × 18 H8 mm
- Slot spacing: 100 mm
Feed drives and measuring
- Max. feed force Z: 30,000 N
- Max. feed force X/Y: 20,000 N
- Feed speed: 1–10 m/min
- Rapid traverse: 15 m/min
- Measuring systems: Direct coded length measuring systems
Hydraulics
- Operating pressure: 100 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
