AWEA - AF-1000IT-MIL-AWE-2017-00001

58,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

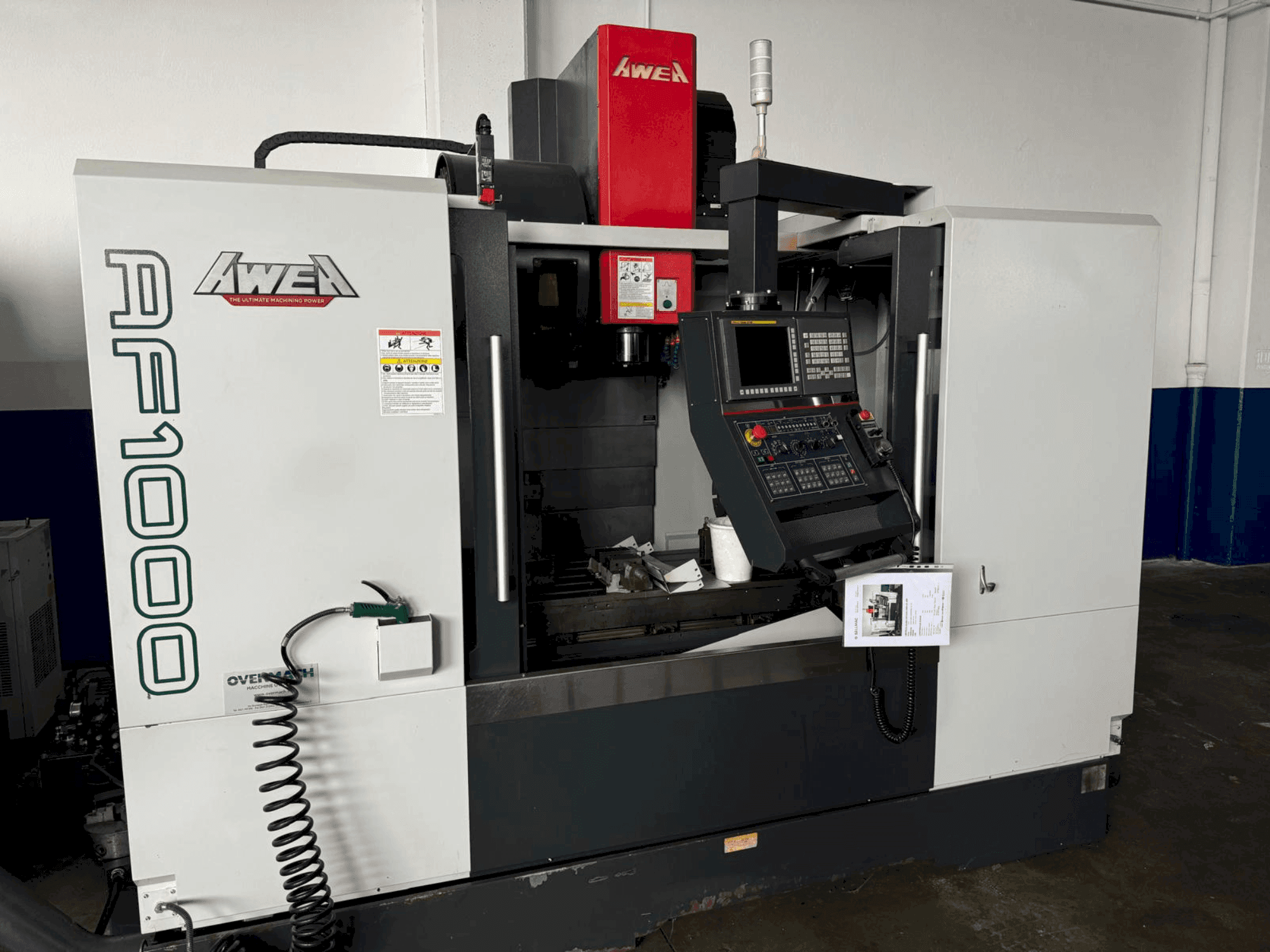

This 4-axis AWEA AF-1000 vertical machining center was manufactured in 2017. It features a 1020 mm X-axis travel, 550 mm Y-axis travel, and 635 mm Z-axis travel. Equipped with a high-speed 12,000 rpm spindle, ISO 40 taper, and a 24-tool arm changer. Includes a 4-axis continuous table and chip conveyor. Ideal for complex machining tasks. Contact us for more information about this machine.

Overview

  • brand: AWEA
  • year: 2017
  • MODEL: AF-1000
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre

Technical Information - AWEA AF-1000

Dimensions

  • Machine Depth: 3590 mm
  • Machine Height: 2630 mm
  • Machine Weight: 7000 kg
  • Table Load: 500 kg

Movement

  • Number of Axes: 4
  • X-axis Travel: 1020 mm
  • Y-axis Travel: 550 mm
  • Z-axis Travel: 635 mm

Technical Specification

  • Max. Tool Weight: 7 kg
  • Spindle Speed: 12000 RPM
  • Taper Size: ISO 40

Additional Information

  • Table dimensions: 1200 × 550 mm

  • Distance from table surface to floor: 915 mm

  • Working feed: 10,000 mm/min

  • Spindle nose to table distance: 100–735 mm

  • Spindle center to column distance: 640 mm

  • Axis motors (X/Y/Z) kW/HP: 3.0/4.0; 3.0–4.0/5.4

  • ATC type: Arm changer

  • Tool magazine capacity: 24 tools

  • Required power: 30 kVA

Additional equipment

  • 4-axis continuous table

  • Chip conveyor (screw type)

  • Remote handwheel

  • Supplied with manual and CE certification

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
