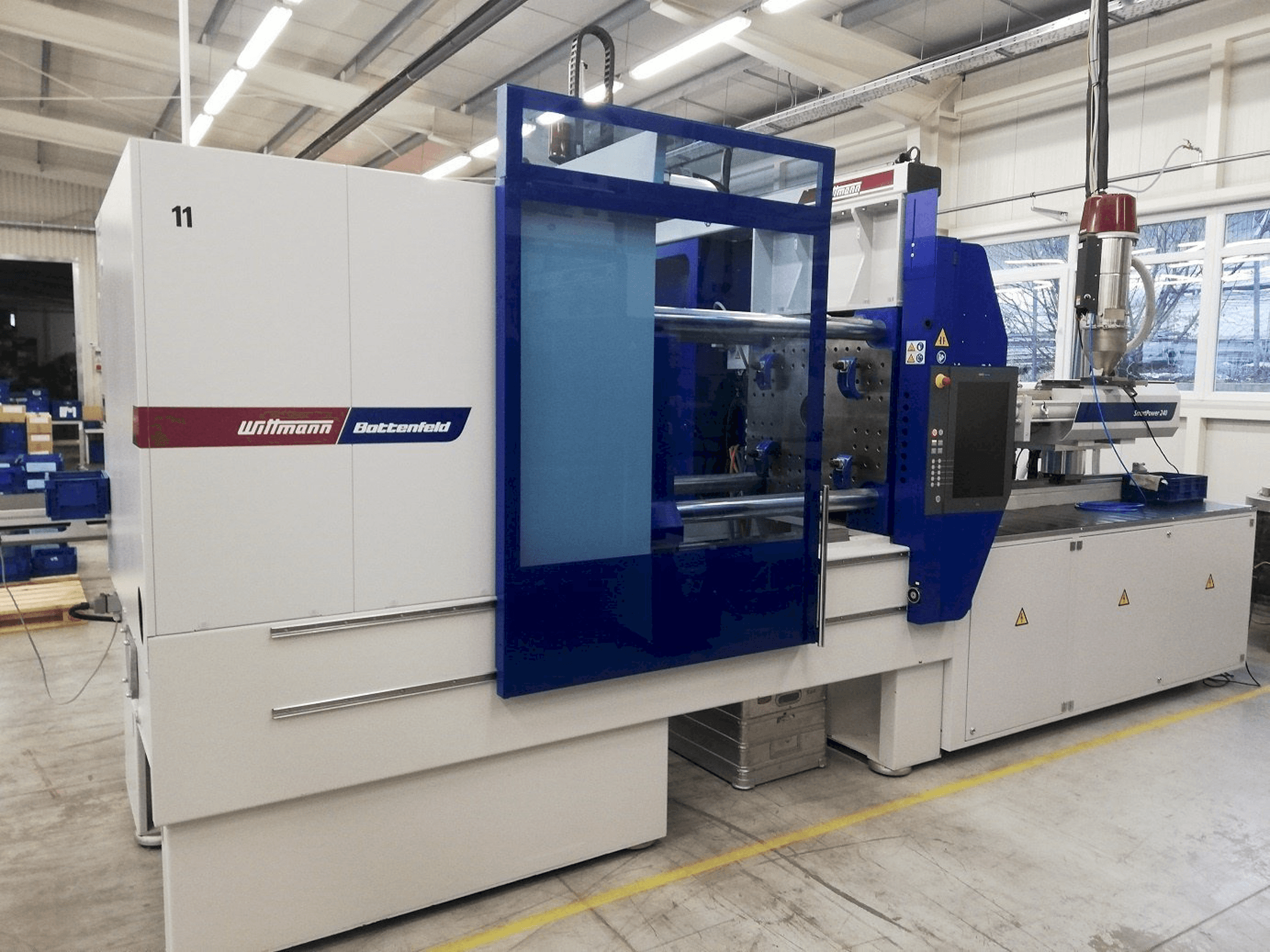

Front view of Battenfeld ECO Power 180/750 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Battenfeld ECO Power 180/750

Battenfeld - ECO Power 180/750HU-INJ-BAT-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Battenfeld ECO Power 180/750 Injection Moulding Machine

Show in original language

This Battenfeld ECO Power 180/750 Injection Moulding Machine was built in 2017. It is equipped with an Unilog B 8 Control unit. This machine can work with a clamping force of 1800 kN. It has an injection unit of 750. The maximum shotweights (g) are calculated by multiplying the theoretical shot volume (cm3) by the material factor. Several additional equipment, included a Wittman robot come with this machine.

Overview

brand: Battenfeld
year: 2017
MODEL: ECO Power 180/750
production hours: 1065
application type: Injection Moulding
Location: Hungary
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - Battenfeld ECO Power 180/750

Control Unit

Model: B 8

Injection Unit

Screw diameter: 50 mm
Shot weight: max 700
Stroke volume: 442 CM³
Injection pressure: 1714 bar

Clamping unit

Clamping force: 1800 kN
Opening stroke: 580 mm
Distance between bars: 570x520 mm
Mould height min: 225 mm

Additional Equipment

- Insider equipment package
- Wittman Robot W:818/ Z:1500 / Y:1000 / X 420 payload 6 kg
- TeachBox R8
- Conveyor belt
- Europaket 2 with hydraulic core pull
- Hot runner control 4-fold integrated
- Plasticizing unit highly wear- and corrosion-resistant

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Screws l/d ratio: 22
- - Max panel distance= 1130 mm
- - Injection unit: 750
Qualitative Machine Benefits:
- - Multilingual touch screen

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
