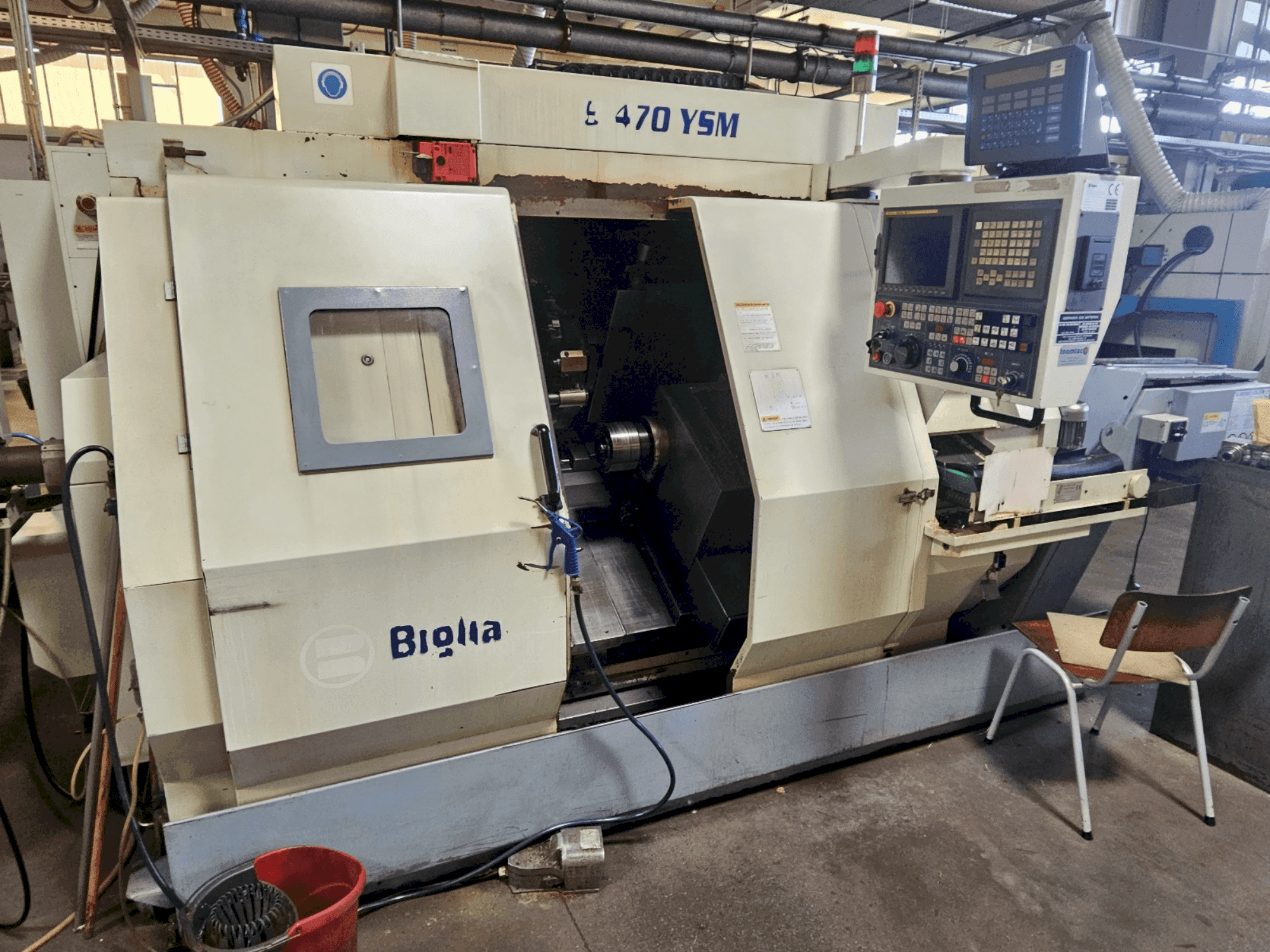

Biglia - B 470 YSMRO-TUR-BIG-2002-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max. Turning diameter: 300 mm / max. Turning length: 550 mm / bar capacity: Ø 65 mm
  • - Ge fanuc 18i-t / full g-code support / manual guide i / multiple offset memory / remote unit: rwt freeway 20 (for data i/o or dnc control)
  • - Max spindle speed: 5000 rpm / spindle power: approx. 15–18. 5 kw / spindle bore: up to Ø 70 mm
  • - 12-position turret / static tools (od/id turning, facing) driven tools (live tools) for drilling, tapping, milling / tool holders: vdi or bmt depending on variant / live tools speed: up to 5000 rpm
  • - X / z / y axes for full milling and turning / c-axis on spindle for interpolated positioning (0. 001°) / y-axis travel: approx. ±50 mm
  • - Coolant type: blaser blasocut 2000 / hydraulics oil: agip exidia 32 ep / lubrication oil: agip exidia 68 ep
  • - Bar feeder: iemca master 880 mp / capacity: Ø 8–80 mm / bar length: up to 3000–3300 mm / fully automatic loading, synchronized with spindle
  • - Voltage: 400 v / phases: 3 / current: 65 a / frequency: 50 hz
