- ➤ Used Biglia B470 YSM For Sale | gindumac.com

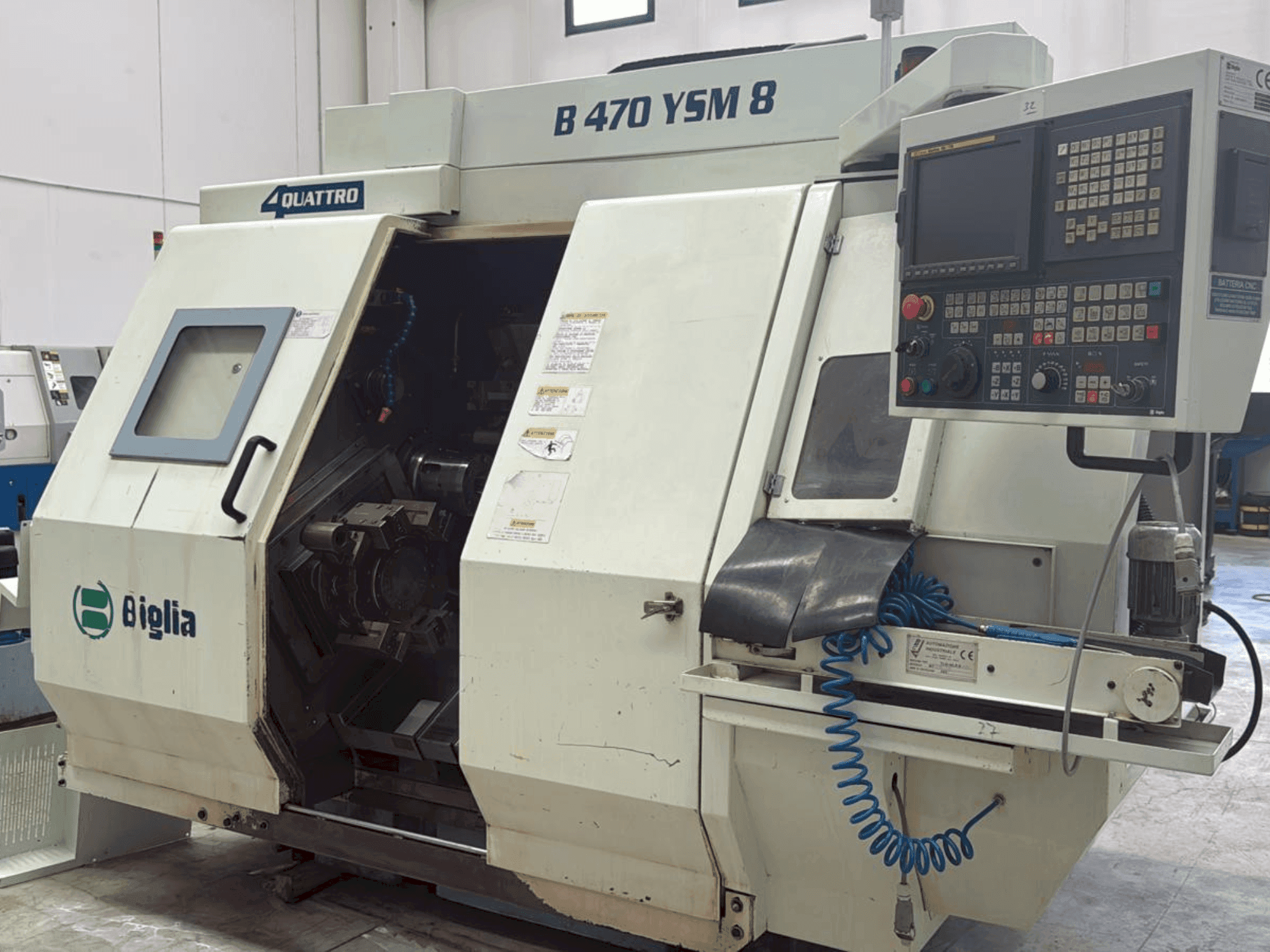

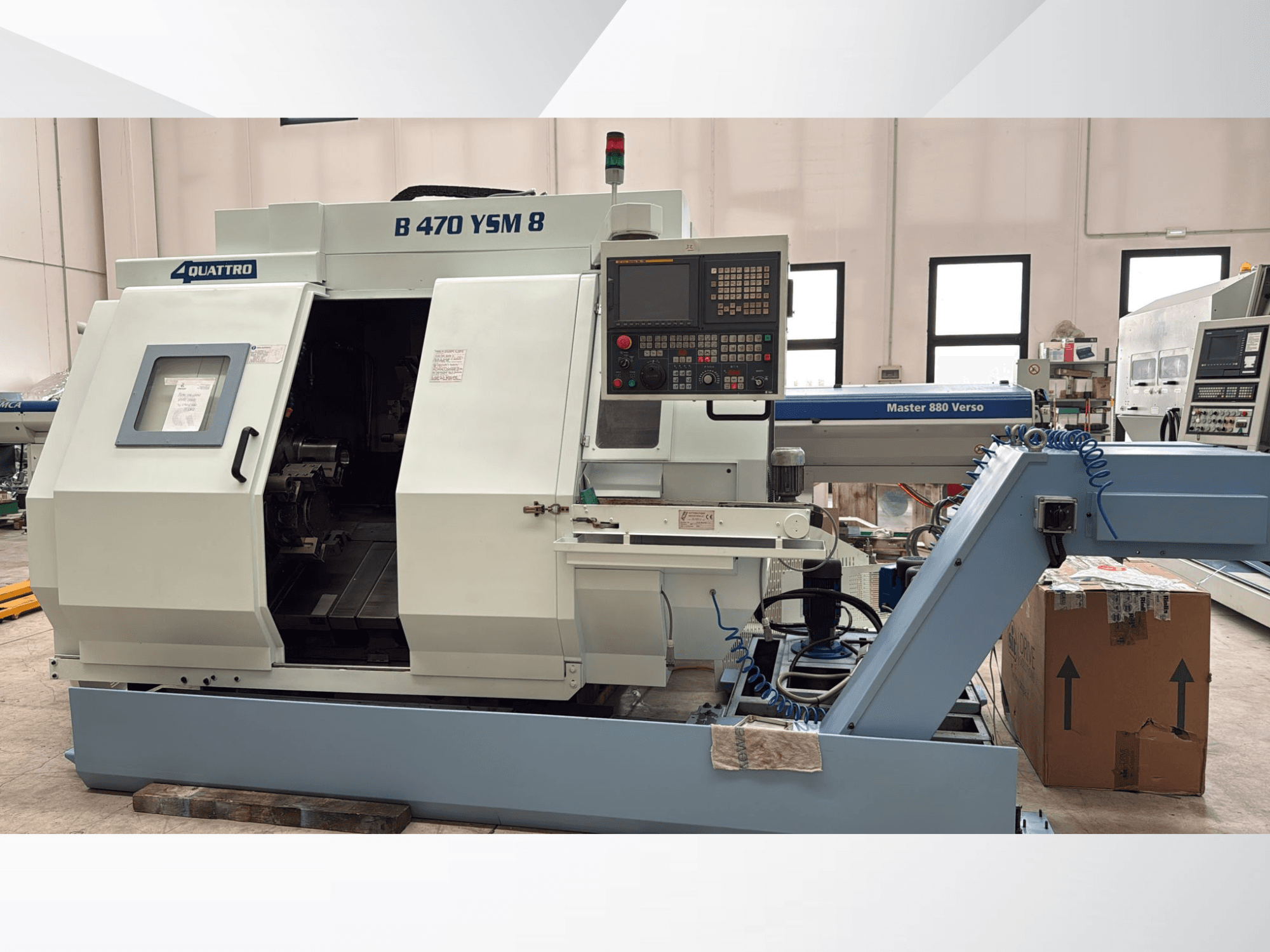

This 8-axis Biglia B470 YSM was manufactured in 2007. A robust turn-mill centre featuring dual spindles, each with significant power (main spindle 26 kW, sub-spindle 11 kW), and a maximum spindle speed of 3200 RPM. It includes a FANUC 18i-TB control unit, two 12-position live-tool capable turrets, and a bar feeder for enhanced productivity. If you are looking to get high-quality turning capabilities consider the Biglia B470 YSM machine we have for sale. Contact us for more information.
Overview
- brand: Biglia
- year: 2007
- MODEL: B470 YSM
- application type: Turning
- Location: Italy
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - Biglia B470 YSM
Control Unit
- Control Brand: FANUC
- Control Model: FANUC 18i-TB
Dimensions
- Machine Weight: 6900 kg
Movement
- Number of Axes: 8
- X-axis Travel: 100 mm
Technical Specification
- Spindle Power: 26 kW
Additional Information
Additional equipment
- Chip Conveyor: Yes (belt type)
- Part Catcher + Exit Conveyor: Yes
- Bar Feeder: Iemca Master 880 MP 33L (Year 2019)
Machine Benefits
Technical Machine Benefits
- Max. Turning length: 320 mm
- Max. Turning diameter: 240 mm
- Max. Bar capacity: 80 mm
- Turrets: 2 × 12-position, all live-tool capable
- Tool size: 20×20 mm (turning), Ø32 mm (boring)
- Live tool speed: 4000 rpm
- Live tool motor power: 3. 7 kw
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
