Biglia B600

Photo Gallery

Biglia - B600IT-TUR-BIG-1993-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

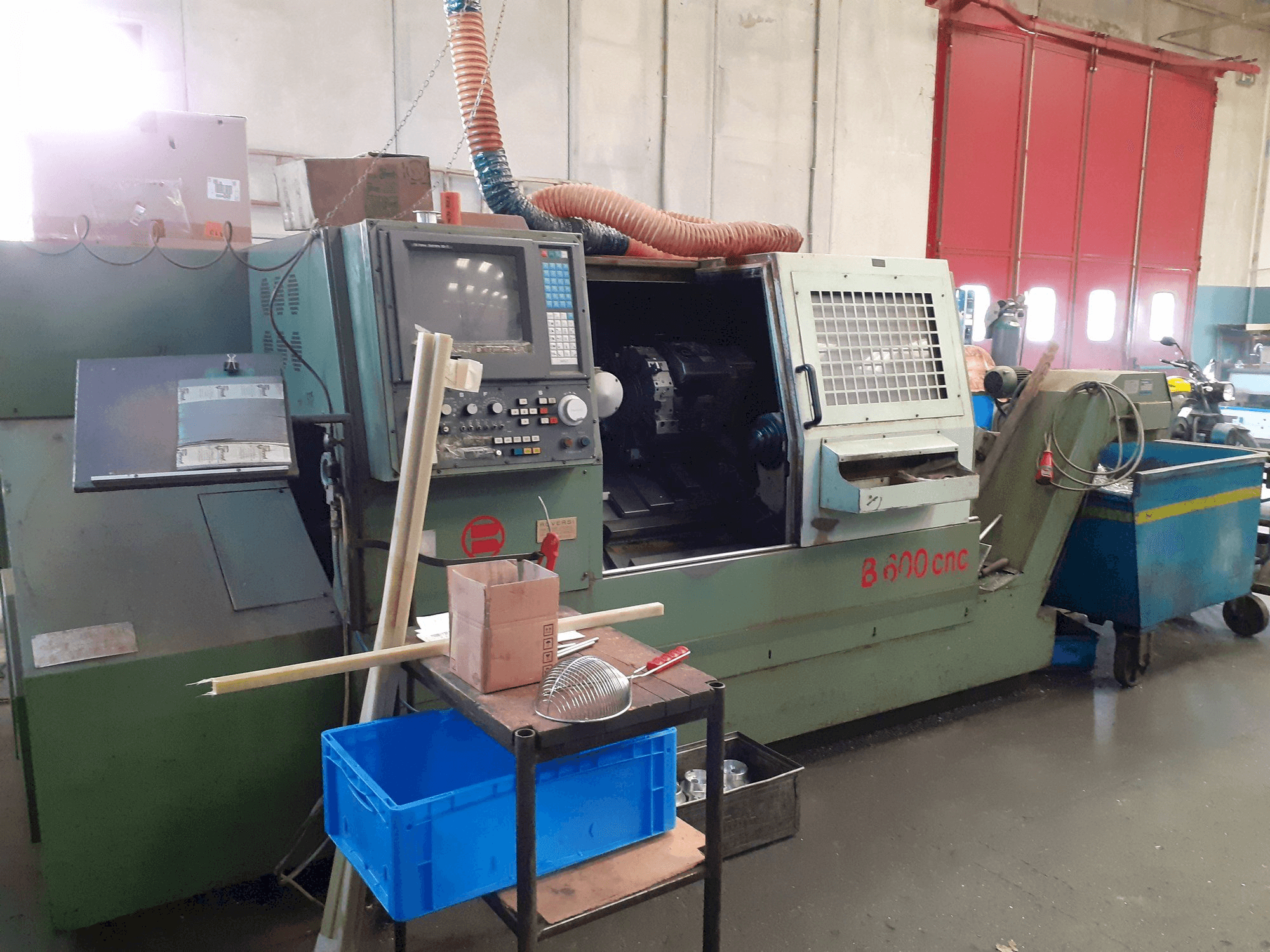

Biglia B600 Lathe

Show in original language

This Biglia B600 Lathe was manufactured in Italy in the year 1993. It is operated through a GE FANUC Series 15-T control unit. This machine can work with a spindle speed up to 3200 rpm.

Overview

brand: Biglia
year: 1993
MODEL: B600
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Biglia B600

General Data

Measurements width: 4100 mm
Measurements depth: 1700 mm
Measurements height: 1740 mm
Machine weight: 5500 kg

Control Unit

Model: Series 15-T
Brand: FANUC

Main drive

Spindle speed range: 60 - 3200 1/MIN

Additional Information

Machine Benefits

Qualitative Machine Benefits

Iso system

Technical Machine Benefits

Max. Diameter turning: 355 mm
Max. Diameter rotating: 560 mm
Max. Length turning: 650 mm
Distance between spindle and tailstock: 900 mm
Bar passage diameter: 56 mm
Turning speed: 3200 rpm
Cross slide travel (x axis): 225 mm
Stem stroke: 150 mm
Number of turret stations: 12
Cad system for autoprogramming

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
